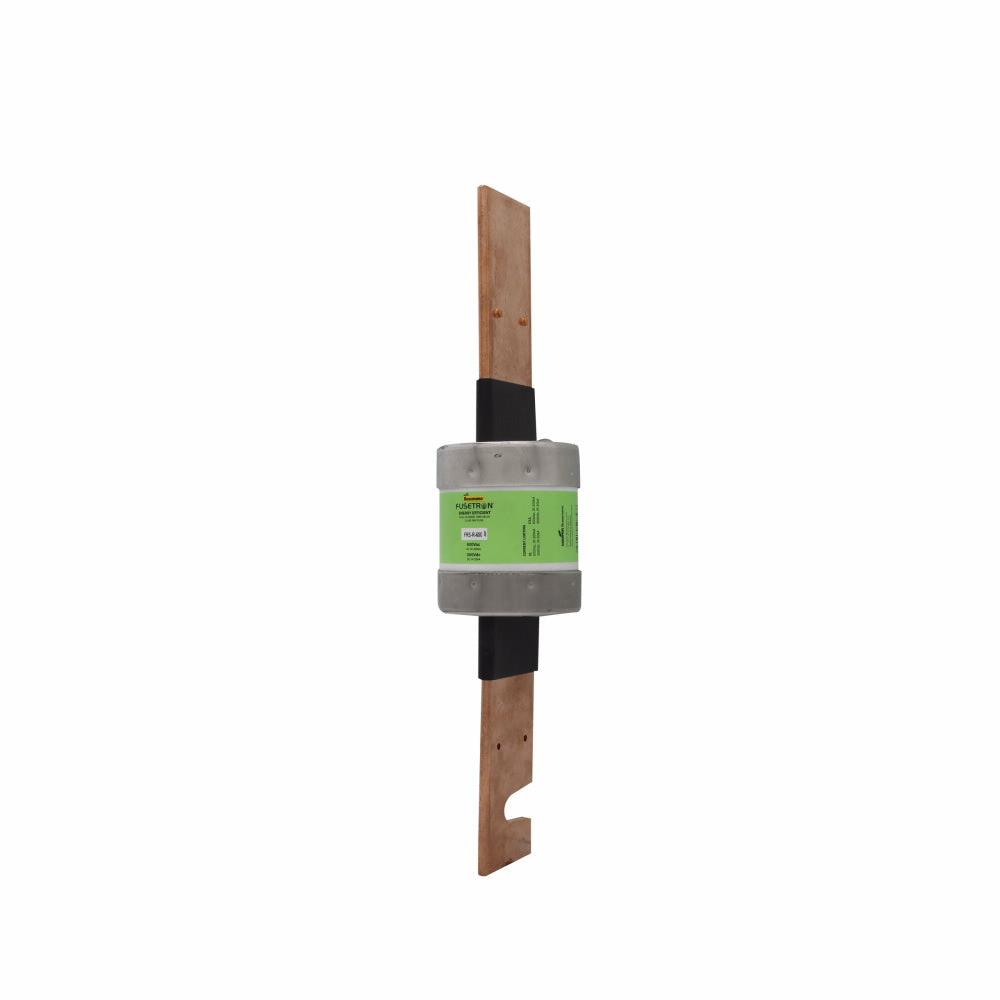

Bussmann FRS-R-600 Fuse DLY Time 600A 600 VAC/300 VDC RK5

Product Description

The Bussmann FRS-R-600 is a current limiting renewable time delay fuse designed for applications requiring reliable overload protection. This fuse can handle a maximum of six hundred amperes at six hundred volts alternating current or three hundred volts direct current. Constructed with a dual-element design, the FRS-R-600 provides superior protection against motor overload, ground fault, and short circuit conditions.

• Current Limiting Renewable Design
• 600 Amps at 600 VAC/300 VDC Rating
• 20/200 kA Interrupt Rating

Product Highlights

This fuse is engineered for use in demanding environments where high fault protection is crucial. It offers time-delay features that allow for temporary overloads, making it suitable for motors and inductive loads.

Product Information

Standard Information

• Brand: Bussmann
• MPN: FRS-R-600

Technical Specifications

• Type: Current Limiting Renewable
• Class: RK5
• Series: FRS-R
• Material: Fiberglass
• Body Size: 2.88 inches Diameter x 13.38 inches Length
• Body Type: Cartridge
• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 600 A
• Interrupt Rating: 20/200 kA
• Response Time: 10 seconds at 500%
• Terminal Type: Blade
• Mounting Type: Holder
