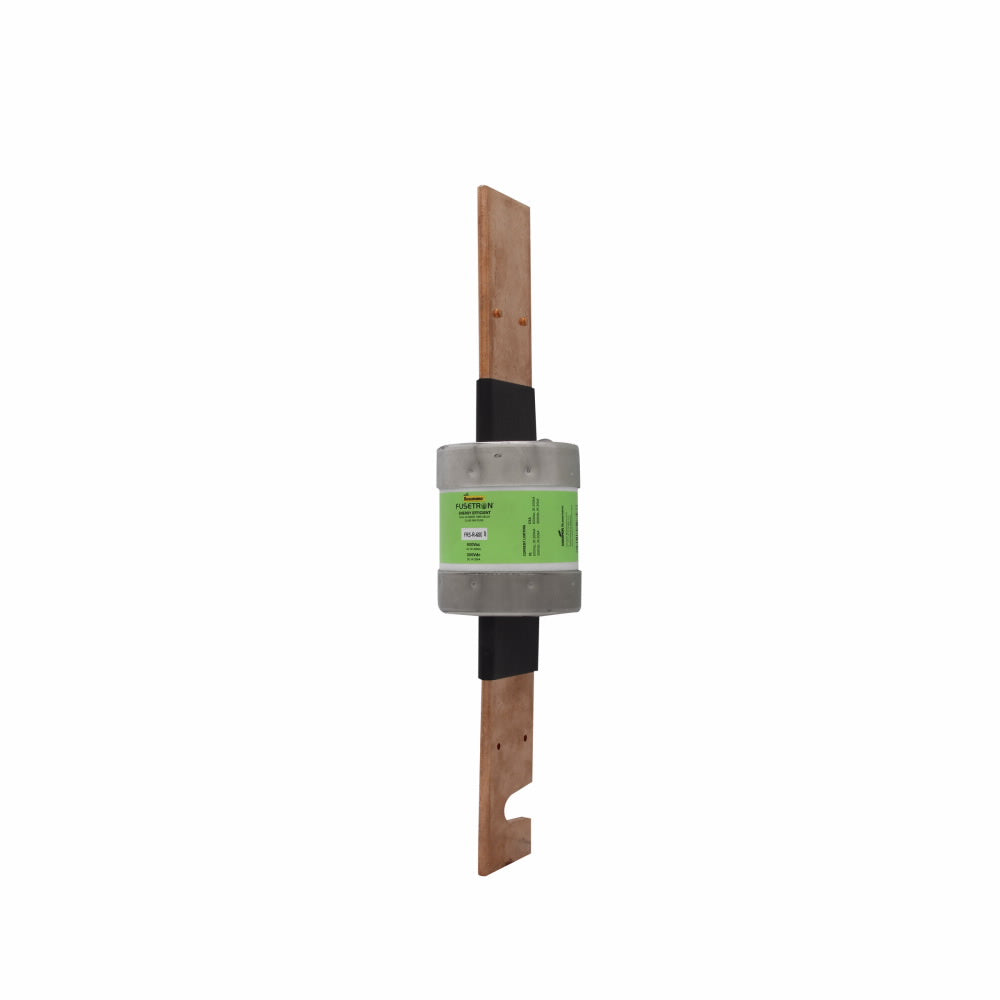

Bussmann FRS-R-500 FRS-R500 600V RK5 TD FS

Product Description

The Bussmann FRS-R500 is a Class RK5 fuse with a maximum voltage rating of six hundred volts. This fuse is designed for use in various applications, including safety and security systems in industrial facilities. The specific model is a time-delay, dual-element current limiting fuse with a rating of five hundred amps. This product features an interrupting capacity of two hundred kiloamperes at six hundred volts alternating current and twenty kiloamperes at three hundred volts direct current.

• Time-delay for overload protection.
• 500 A rating for high current applications.
• Dual-element design for enhanced performance.

Product Highlights

Ideal for use in electrical systems requiring reliable and efficient overload protection.

Product Information

Standard Information

• Manufacturer: Bussmann
• MPN: FRS-R-500

Technical Specifications

• Amperage Rating: 500 A
• Voltage Rating: 600 Vac; 300 Vdc
• Interrupt Rating: 200 kAIC at 600 Vac; 20 kAIC at 300 Vdc
• Dimensions: 2.88 inches diameter x 13.38 inches length
• Response Time: 10 seconds at 500%
• Special Features: Renewable
• Connection: Blade end x blade end
• Standard Compliance: CE Marked
