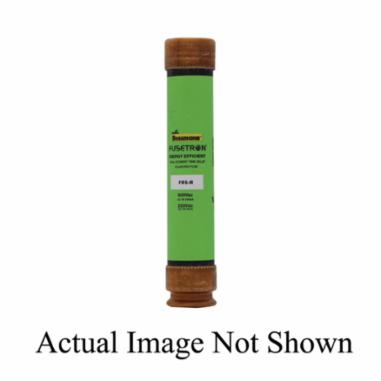

Bussmann FRS-R-50 FUSE DLY TIME 50A 600 VAC/250 VDC RK5

Product Description

The Bussmann FRS-R-50 fuse is a current limiting renewable time delay fuse with a rating of fifty amps. It is designed for use in applications requiring voltage ratings of six hundred volts alternating current or two hundred fifty volts direct current. This fuse has an interrupting rating of twenty or two hundred kilohms and belongs to the Class RK5 fuses standard. The cylindrical design features a fiberglass material for durability.

• Time delay feature allows for better motor protection
• Provides overload, ground fault, and short circuit protection
• Dual element design reduces the overall size of required fuses

Product Highlights

This fuse is ideal for use in motors and transformers, providing significant performance benefits during overload conditions. It is suitable for a range of industrial applications.

Product Information

Standard Information

• Brand: Bussmann
• MPN: FRS-R-50

Technical Specifications

• Type: Current limiting renewable
• Class: RK5
• Series: FRS-R
• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 50 A
• Interrupt Rating: 20/200 kA
• Response Time: 10 seconds at 500%
• Material: Fiberglass
• Body Size: 1.06 inches diameter x 5.5 inches length
• Terminal Type: Ferrule
• Mounting Type: Holder
