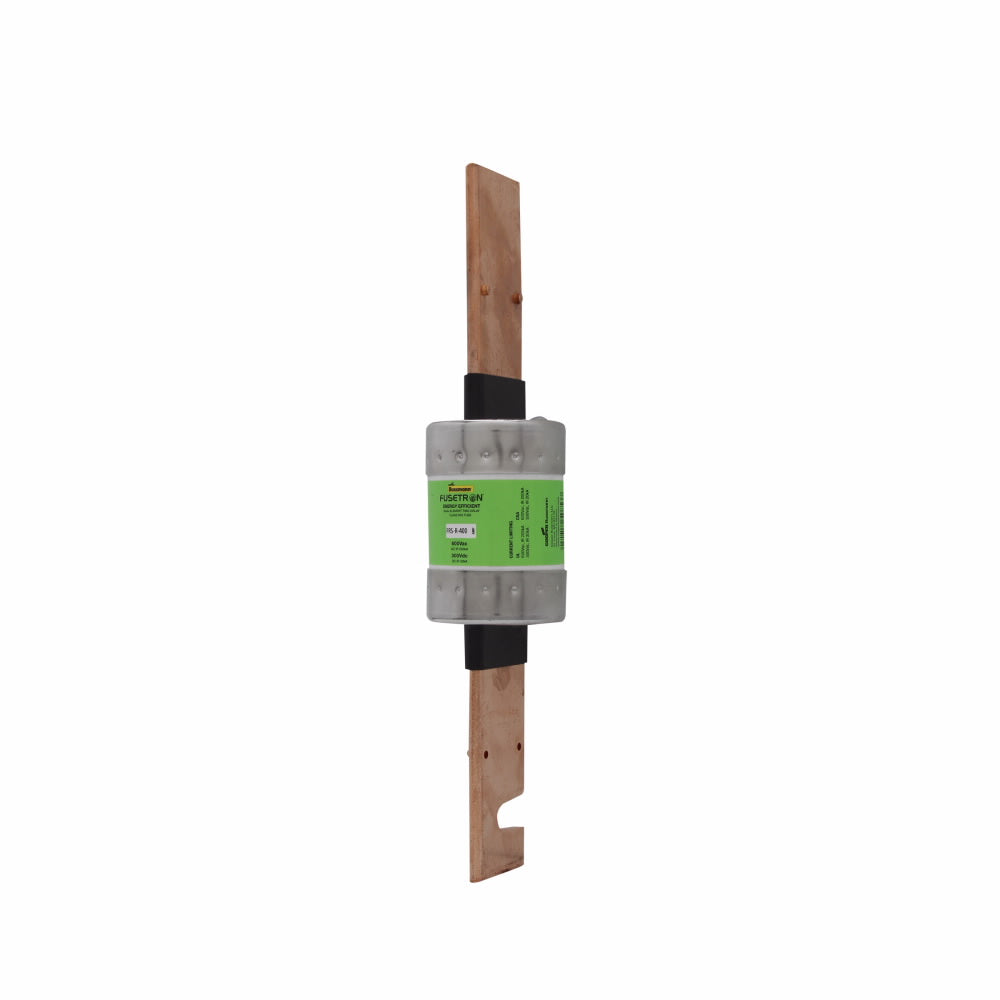

Bussmann FRS-R-400 FUSE DLY TIME 400A 600 VAC/300 VDC RK5

Product Description

The Bussmann FRS-R-400 is a current limiting renewable time delay fuse rated at four hundred amps and can handle six hundred volts AC or three hundred volts DC. It is designed to provide reliable protection in various electrical applications and features a dual-element construction that enhances performance. This fuse is ideal for use in power distribution panels, motor control centers, and machinery disconnects.

• Amperage Rating: 400 A
• Interrupt Rating: 20/200 kA
• Voltage Rating: 600 VAC/300 VDC

Product Highlights

The Bussmann FRS-R-400 is a dual-element fuse that offers both overload protection and short-circuit safety for motors and other devices.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Renewable
• Class: RK5
• Response Time: 10 seconds at 500%
• Indication: Non-Indicating
• Material: Fiberglass
• Body Size: 2.34 inches diameter x 11.63 inches length
• Terminal Type: Blade
• Mounting Type: Holder
