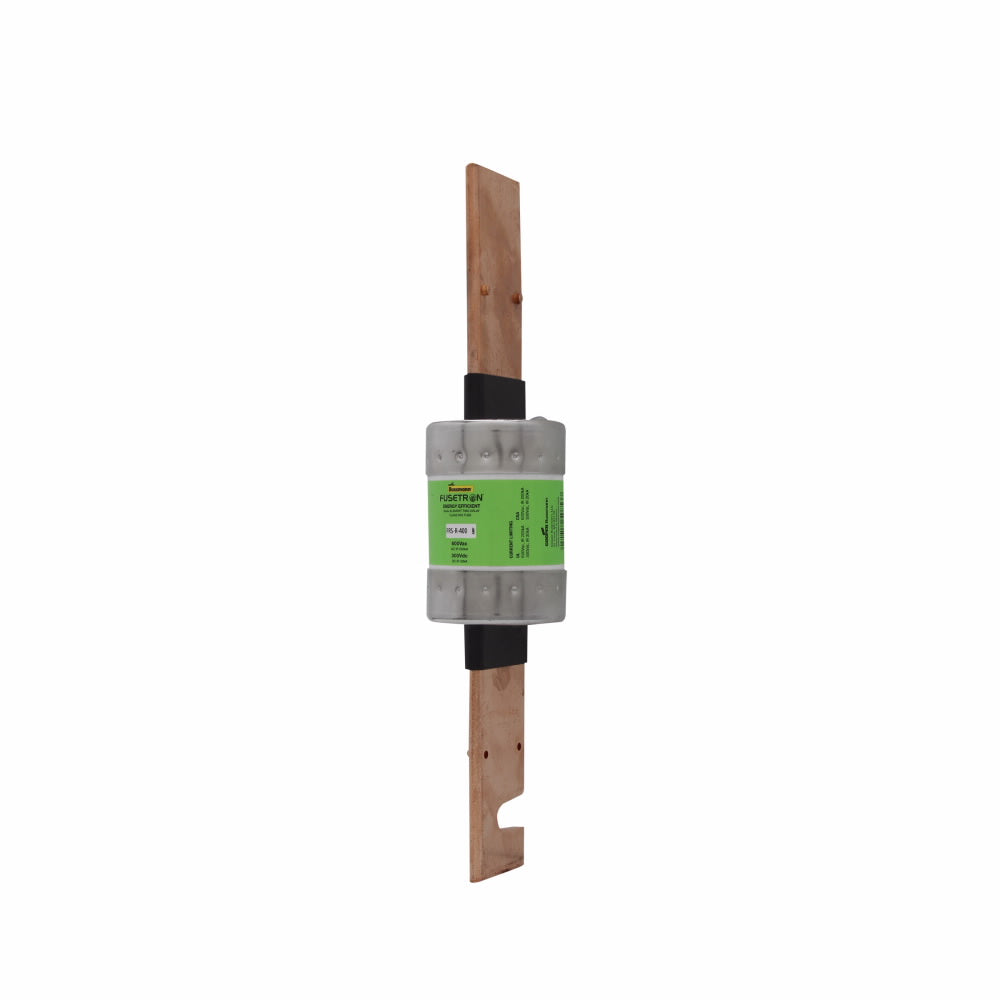

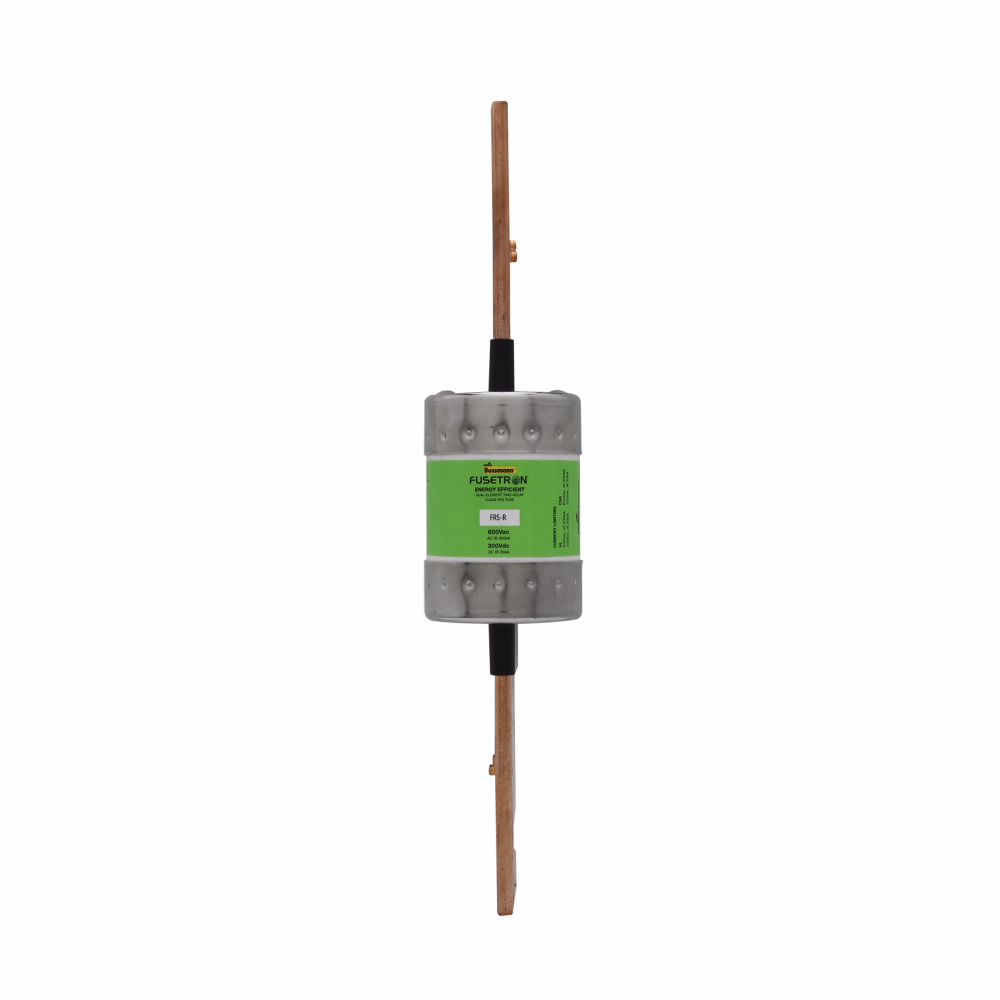

Bussmann FRS-R-350 Class RK5 Fusetron Dual Element Fuse

Product Description

The Bussmann FRS-R-350 is a Class RK5 Fusetron dual element fuse, designed for reliable circuit protection. This fuse operates at 350 amperes and is suitable for various applications, including motor control centers and power panelboards. It features a non-indicating design with blade end connections. The fuse has an interrupting rating of twenty kA at three hundred volts DC and two hundred kA at six hundred volts AC. This makes it ideal for protecting sensitive equipment against overloads.

• Application: Suitable for combination starters and machinery disconnects.
• Dimensions: Two point thirty-four inches diameter by eleven point sixty-three inches length.
• Standards: CE, CSA, and UL 248-12 certified.

Product Highlights

This fuse ensures optimal performance and safety in electrical systems.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage Rating: Three hundred volts DC, six hundred volts AC
• Amperage Rating: Three hundred fifty amps
• Interrupt Rating: Twenty kA at three hundred volts DC, two hundred kA at six hundred volts AC
• Response Time: Ten seconds at five hundred percent
• Connection Type: Blade end x blade end
• Diameter: Two point thirty-four inches
• Length: Eleven point sixty-three inches
• Weight: Three pounds
