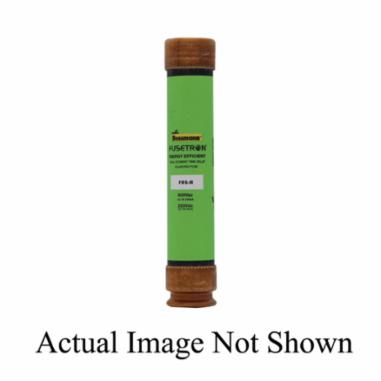

Bussmann FRS-R-35 Fuse DLY Time 35A 600 VAC/250 VDC RK5

Product Description

The Bussmann FRS-R-35 is a current limiting renewable time delay fuse rated at thirty-five amps. It operates at six hundred volts alternating current or two hundred fifty volts direct current. This RK5 class fuse is designed for applications that require reliable protection in electrical circuits.

• Current Limiting Renewable Time Delay Fuse
• Rated Voltage: 600 VAC/250 VDC
• Interrupt Rating: 20/200 kA

Product Highlights

This Bussmann fuse provides advanced protection with a dual-element design, suitable for motor circuits. Its time delay feature helps manage high inrush currents, protecting sensitive equipment.

Product Information

Standard Information

• Product Type: Current Limiting Renewable
• Manufacturer: Eaton

Technical Specifications

• MPN: FRS-R-35
• Amperage Rating: 35 A
• Voltage Rating: 600 VAC/250 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 1.06 in Dia x 5.5 in L
• Body Type: Cylindrical
• Material: Fiberglass
• Terminal Type: Ferrule
