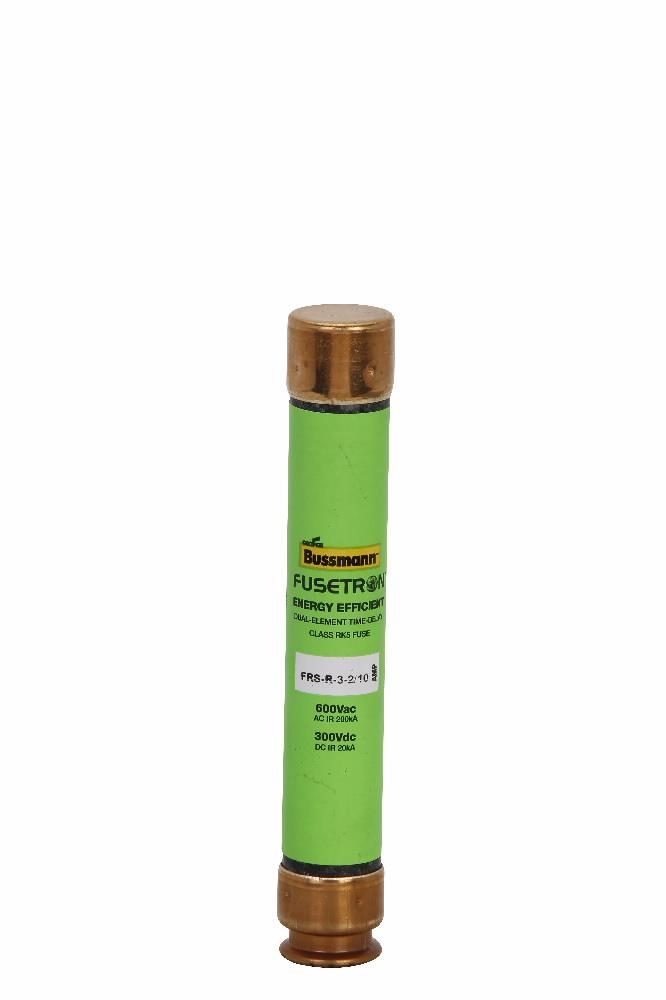

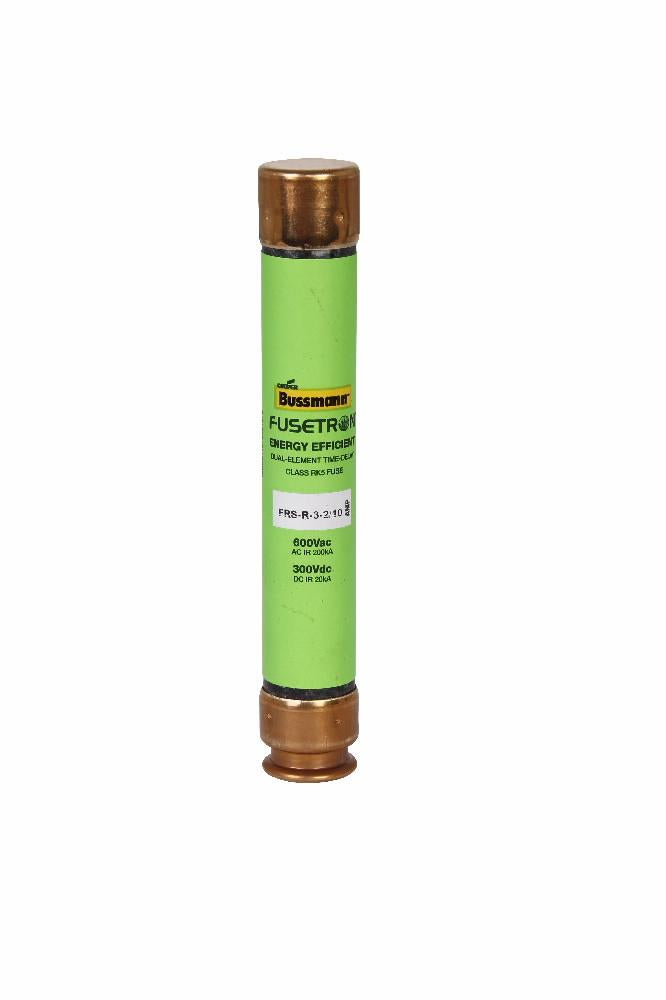

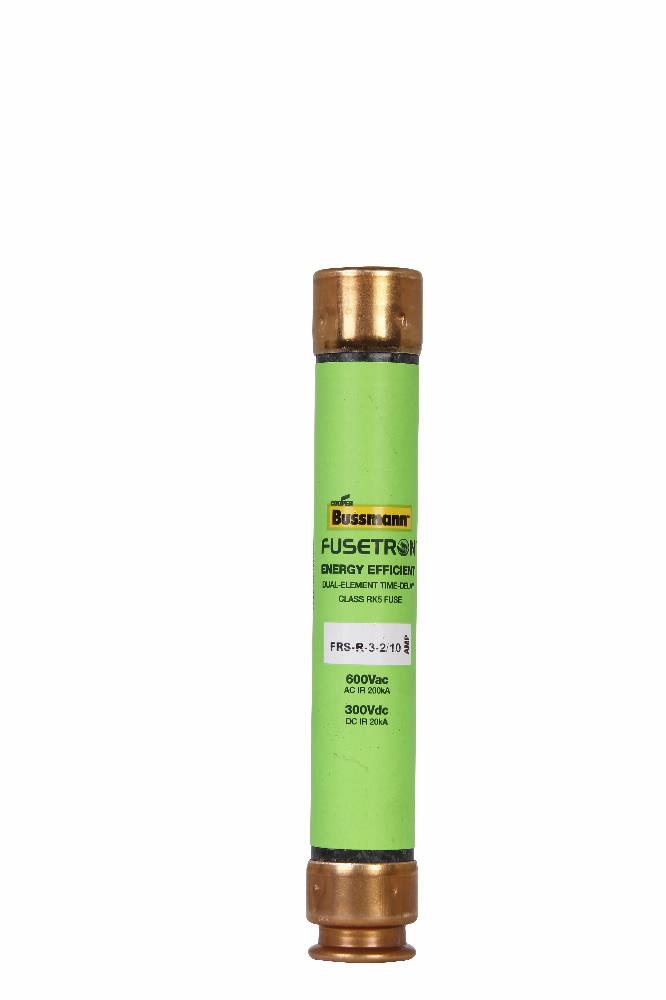

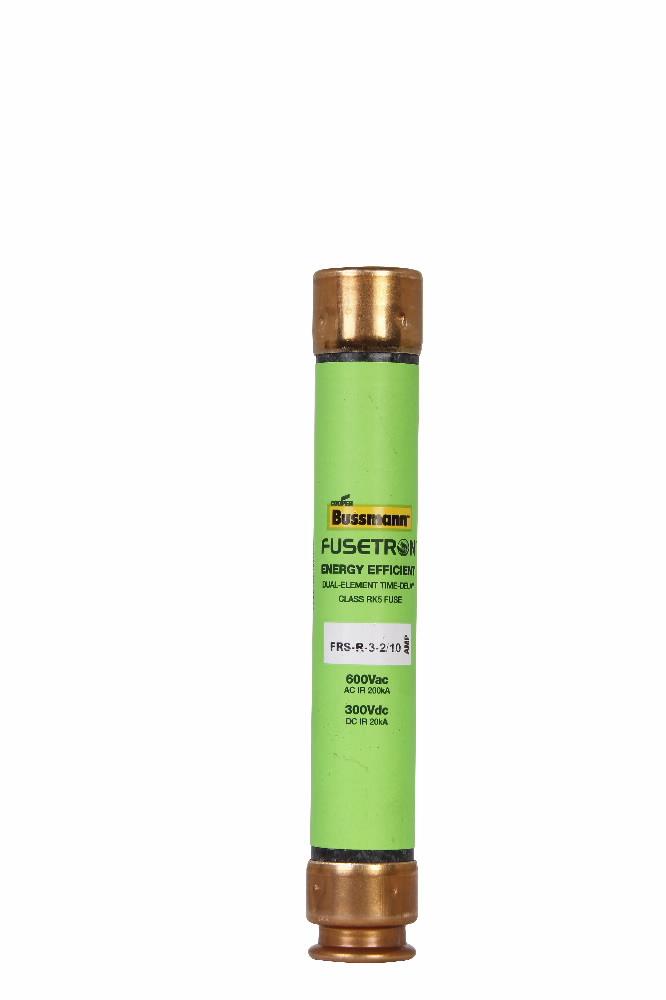

Bussmann FRS-R-3-2/10 Current Limiting Renewable Time Delay Fuse 3.2 A 600 VAC/300 VDC 200 kA

Product Description

The Bussmann FRS-R-3-2/10 is a time delay fuse from Eaton. It is designed for use in various applications requiring reliable protective measures. This fuse provides current limiting capabilities with a rating of 3.2 A and operates at 600 VAC/300 VDC. It features a cylindrical body made of fiberglass which ensures durability in demanding environments.

• Time delay performance for closer sizing and protection.
• 200 kA interrupting rating for robust applications.
• Dual-element design enhances protection against overloads and short circuits.

Product Highlights

This time delay fuse is essential for safeguarding motors and transformers, providing reliable current limiting while allowing for more economical switch sizes.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• MPN: FRS-R-3-2/10
• Amperage Rating: 3.2 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200 kA
• Class: RK5
• Response Time: 10 seconds at 500%
• Body Size: 0.81 in Diameter x 5 in Length
• Mounting Type: Holder
• Material: Fiberglass
• Terminal Type: Ferrule
• Type: Current Limiting Renewable
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Element: Dual
• Body Type: Cylindrical
