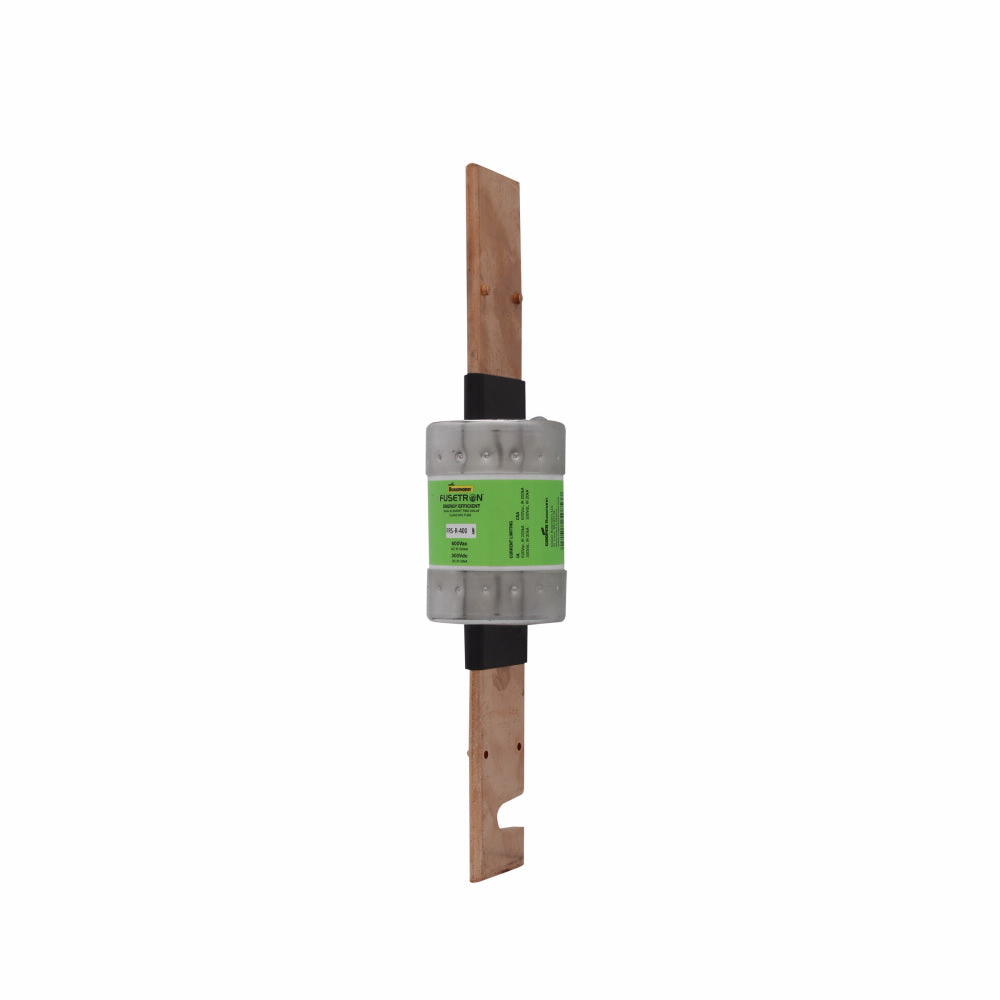

Bussmann FRS-R-225 FUSE DLY TIME 225A 600 VAC/300 VDC 200KA

Product Description

The Bussmann FRS-R-225 is a current limiting renewable time delay fuse. This fuse operates at two hundred twenty-five amps and is rated for six hundred volts alternating current or three hundred volts direct current. It is designed to provide reliable protection against overloads and short circuits.

• Dual-element construction for enhanced performance.
• Time delay feature allows for the use of smaller amperage ratings.
• High interrupting rating of two hundred kA at six hundred VAC.

Product Highlights

This fuse is suitable for various applications, particularly in facilities requiring safety and security systems. The Bussmann FRS-R product line delivers optimal protection while allowing for cost savings on equipment.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Renewable
• Amperage Rating: 225 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 kA
• Response Time: 10 s at 500%
• Body Size: 2.34 inches diameter x 11.63 inches length
• Material: Fiberglass
• Mounting Type: Holder
