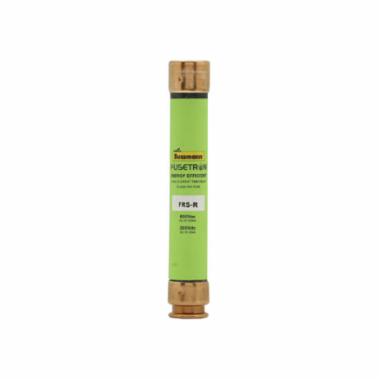

Bussmann FRS-R-2 FRS-R2 600V RK5 TD FS

Product Description

The Bussmann FRS-R-2 is a Class RK5 fuse designed for safety in electrical circuits. It features a time-delay design, suitable for high inrush applications. This dual-element fuse can handle currents up to two amps. It provides current limiting capabilities with an interrupting rating of two hundred kiloamperes at six hundred volts AC and twenty kiloamperes at three hundred volts DC.

• Class RK5 time-delay fuse
• Interrupting rating: 200 kA at 600 V AC
• Dimensions: 0.81 inches in diameter and 5 inches in length

Product Highlights

Product Information

Standard Information

• Manufacturer: Bussmann
• WES Product Code: 2770177501

Technical Specifications

• Type: Fuse
• Class: Class RK5
• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 2 A
• Response Time: 10 S at 500%
• Connection: Ferrule end x ferrule end
• Interrupt Rating: 200 kAIC at 600 Vac; 20 kAIC at 300 Vdc
• Special Features: Renewable
