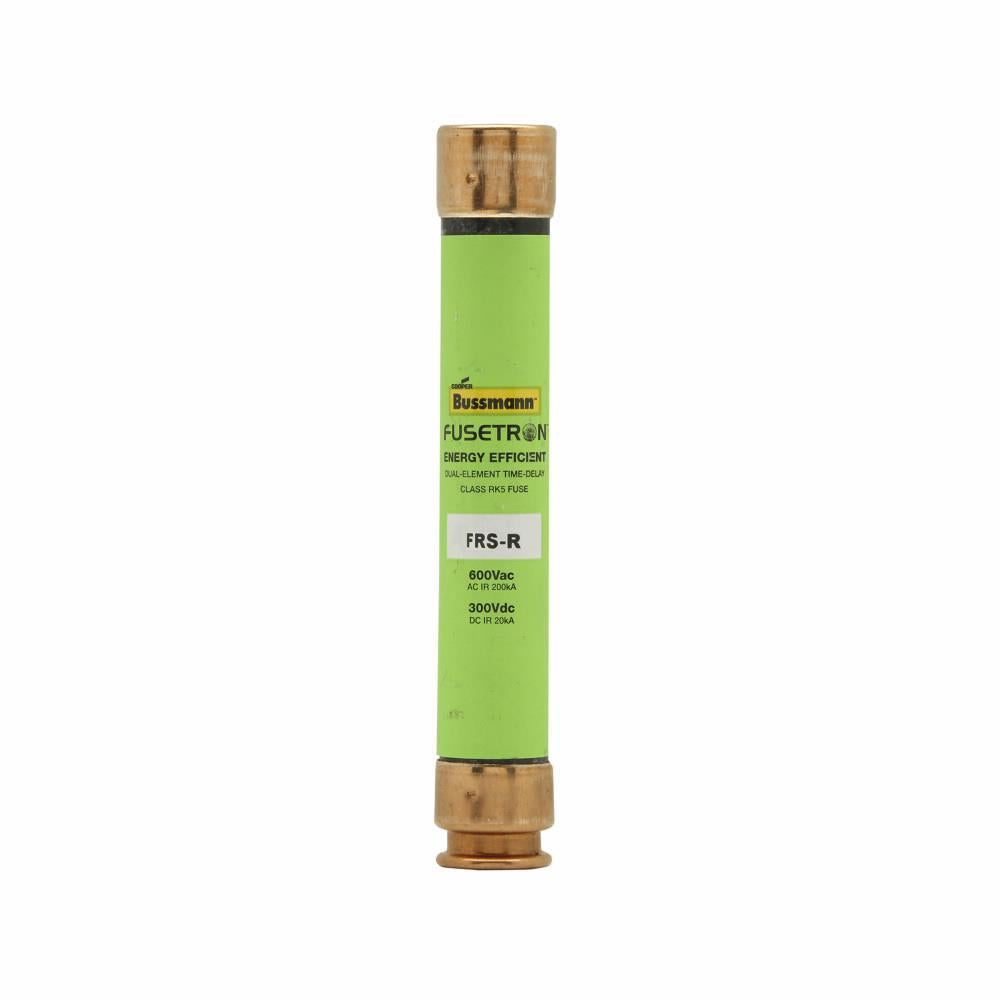

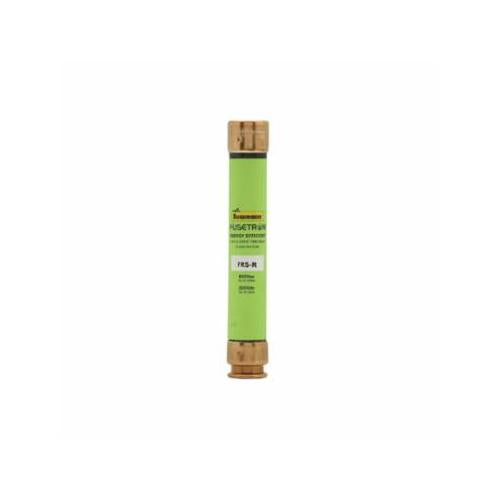

Bussmann FRS-R-2-8/10 Current Limiting Renewable Time Delay Fuse 2.8 A 600 VAC/300 VDC

Product Description

Bussmann FRS-R-2-8/10 is a current limiting renewable time delay fuse designed for various applications. This product operates at 2.8 amperes and is rated for 600 volts AC and 300 volts DC. It features a 200 kA interrupt capacity and is classified as RK5. The cylindrical body offers durability and efficient protection for motors and transformers.

• Time delay operation allows for short circuit and overload protection.
• Fits in standard holders for easy installation.
• Constructed from fiberglass for strength and reliability.

Product Highlights

The Bussmann Fusetron FRS-R series provides advanced protection with its dual-element, time-delay design. It supports various applications with reliability, ensuring motor safety against overloads and faults.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Body Size: 0.81 inches Diameter x 5 inches Length
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Fiberglass
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 10 seconds at 500%
• Series: FRS-R
• Terminal Type: Ferrule
• Type: Current Limiting Renewable
• Amperage Rating: 2.8 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 kA
• Class: RK5
• Body Type: Cylindrical
