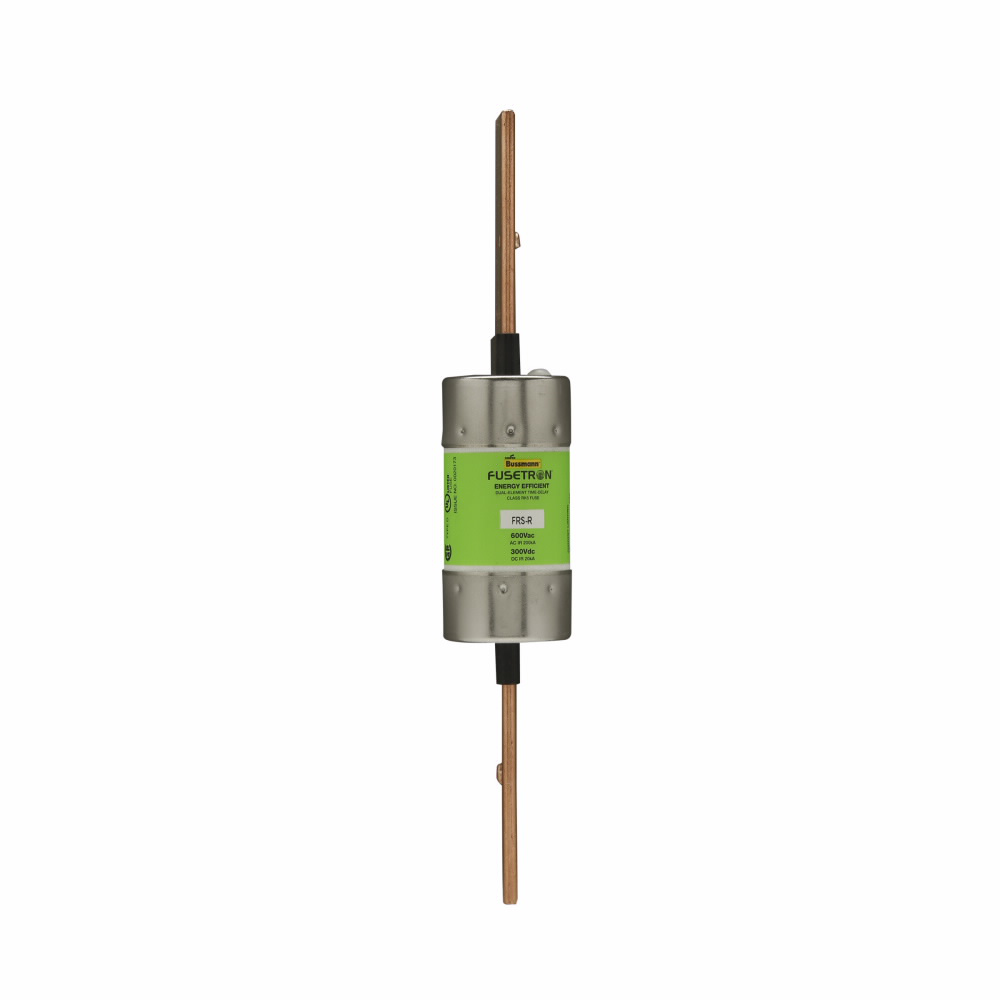

Bussmann FRS-R-110 Class RK5 Fusetron Dual Element Fuse

Product Description

The Bussmann FRS-R-110 is a Class RK5 fusetron dual element fuse designed for protection in electrical circuits. It has a current rating of one hundred ten amperes and can interrupt fault currents up to two hundred kA at six hundred volts AC. This fuse has a blade end connection and is non-indicating.

• Rated for both 600 Vac and 300 Vdc
• Time-delay design with a response time of ten seconds at five hundred percent rated load
• Suitable for use in industrial machinery, motor control centers, and power panelboards

Product Highlights

The Bussmann FRS-R-110 is essential in protecting motors and equipment from overloads and short circuits.

Product Information

Standard Information

• Brand: Bussmann
• MPN: FRS-R-110

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 110 A
• Dimensions: 1.61 inches diameter x 9.63 inches length
• Weight: 0.15 lb
• Element: Dual
• Class: RK-5
• Interrupt Rating: 20 kA at 300 Vdc; 200 kA at 600 Vac
• Connection Type: Blade end x blade end
