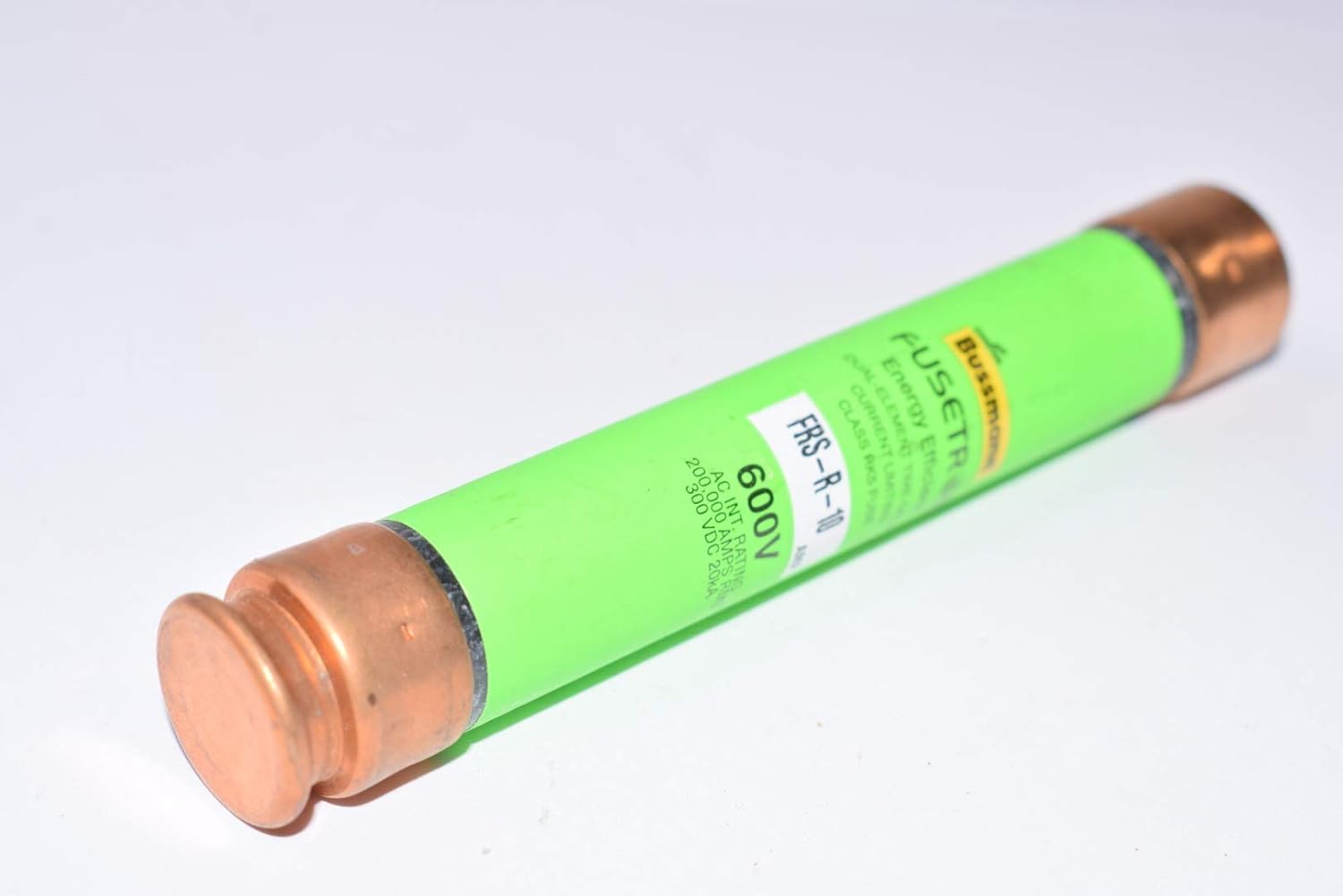

Bussmann FRS-R-10 Fusetron Time Delay Fuse 10A 600 VAC/300 VDC

Product Description

The Bussmann FRS-R-10 is a time delay fuse designed for current limiting applications. With an amperage rating of ten amps and voltage ratings of 600 VAC and 300 VDC, this fuse is part of the FRS-R series from Bussmann. It is suitable for circuits that experience temporary inrush currents, such as those caused by transformers and solenoids.

• Time delay feature allows for overload protection without nuisance blowing.
• Provides current limitation to protect downstream components.
• Compatible with rejection type fuse holders and can replace Class H and K5 fuses.

Product Highlights

The Bussmann FRS-R-10 offers reliable overload protection and is ideal for use in a variety of electrical applications. This cylindrical fuse, with a ferrule terminal type, ensures durability and effectiveness in demanding conditions.

Product Information

Standard Information

• Brand: Bussmann
• MPN: FRS-R-10

Technical Specifications

• Class: RK5
• Response Time: 10 seconds at 500%
• Body Size: 0.81 inches diameter x 5 inches length
• Element: Dual
• Interrupt Rating: 200 kA
• Terminal Type: Ferrule
• Material: Fiberglass
• Voltage Rating: 600 VAC / 300 VDC
