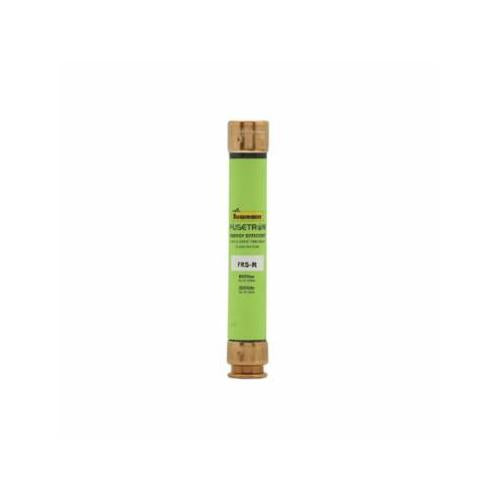

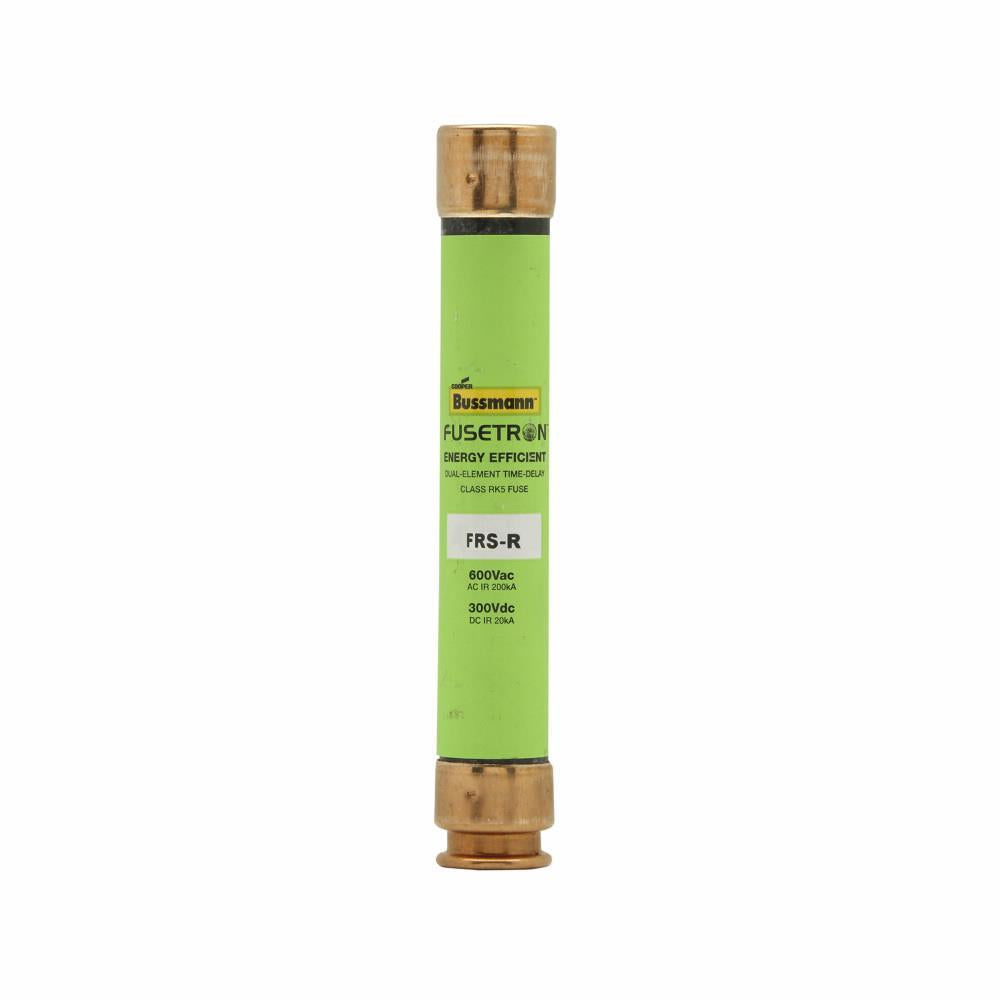

Bussmann FRS-R-1-6/10 Current Limiting Renewable Time Delay Fuse 1.6 A 600 VAC/300 VDC 20/200 kA Interrupt

Product Description

The Bussmann FRS-R-1-6/10 is a current limiting renewable time delay fuse from Bussmann by Eaton. This fuse has an amperage rating of 1.6 A and operates at a voltage of 600 VAC and 300 VDC. It features a 20/200 kA interrupting rating and is classified as RK5. This cylindrical fuse construction is designed to provide reliable protection for electrical systems while minimizing the risk of overloads.

• Current limiting renewable design for effective fuse management
• Time-delay feature offers protection against temporary overloads
• Fiberglass body ensures durability in rigorous environments

Product Highlights

The Bussmann FRS-R-1-6/10 fuse is ideal for protecting circuits against overload conditions. Its design makes it suitable for use with motors and transformers, ensuring reliable performance under all circumstances.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Type: Current Limiting Renewable
• Class: RK5
• Amperage Rating: 1.6 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Response Time: 10 s at 500%
• Body Size: 0.81 in Dia x 5 in L
• Material: Fiberglass
• Mounting Type: Holder
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Body Type: Cylindrical
