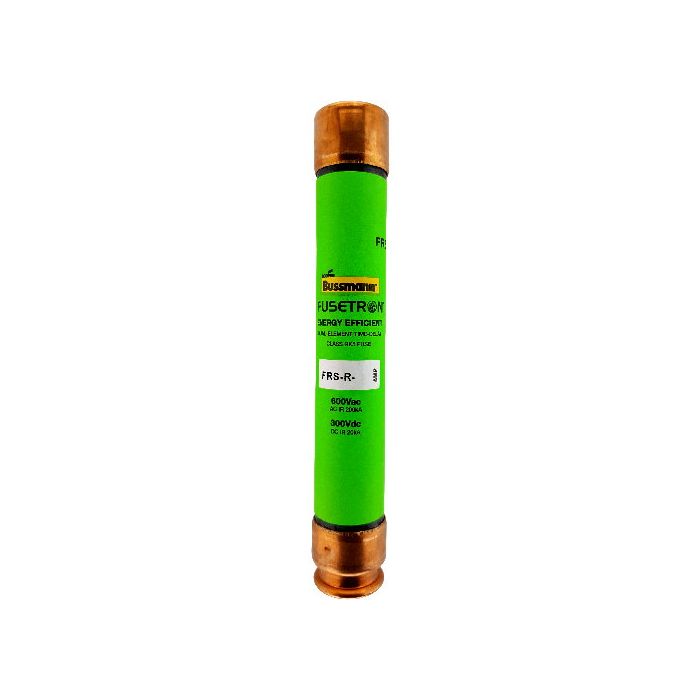

Bussmann FRS-R-1/4 Fuse 1/4 Amp replacement FRS-R-1-4

Product Description

The BUSSMANN FRS-R-1/4 is a 1/4 amp, 600V, Class RK5 fuse. It features a dual element and time delay for advanced protection. This current-limiting fuse is UL Listed and CSA Certified. Ideal for use in combination starters, motor control centers, and power panelboards.

• 1/4 Amps
• 600 Volts AC
• UL Class RK5
• Dual Element

Product Highlights

Provides advanced protection with its dual-element, time-delay construction. Current-limiting. UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FRS-R-1/4

Technical Specifications

• Amps: 1/4
• Voltage: 600
• Class: RK5
• Element: Dual
• Time Delay: Yes
• Physical Size: 0.81" x 5"
• AC Voltage Rating: 600
• Interrupting Rating: 200,000 AIC RMS
• Interrupting Rating DC: 20 kAIC @ 300 Vdc
• Current-limiting: Yes
• UL Listed: Class RK5, Guide JDDZ, File E4273
• CSA Certified: Class 1422-01, File 53787
• Product Length/Depth: 5 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Compliances: CE Marked
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Brand: Eaton Bussmann
• Series: FRS-R
• Mpn: FRS-R-1-4
• Upc: 051712507974
• Gtin: 51712507974
• Category: Circuit Protection
• Electrical, Specialty Fuses: Electrical, Specialty Fuses
• Voltage Rating - DC: 300 VDC
• Manufacturer: Eaton - Bussmann Electrical Division
• Response Time: Slow Blow
• Applications: Electrical, Industrial
• Packaging: Bulk
• Part Status: Active
• Approval Agency: CE, CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Size / Dimension: 0.810" Dia x 3.00" L (20.57mm x 76.20mm)
• Voltage Rating - AC: 600 VAC
• Application: Combination starters, motor control centers, machinery disconnects, power panelboards
• Indicator: Non-indicating
• Manufacturer Part Number: FRS-R-1-4/10
• Numeric ID: 2510416
• Shape: RECTANGULAR
• Type: Fuse
• UPC Code: 51712508117
• Speed: Time Delay / Slow Blow
• Class RK5 Fuse: Class RK5 Fuse
• Shape Cartridge Fuses: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse FLSR
• Item weight: 3.2 oz
• Ampere: 0.25 A
