Bussmann FRS-R-1-1/2 Fusetron Class Rk5 Dua

Product Description

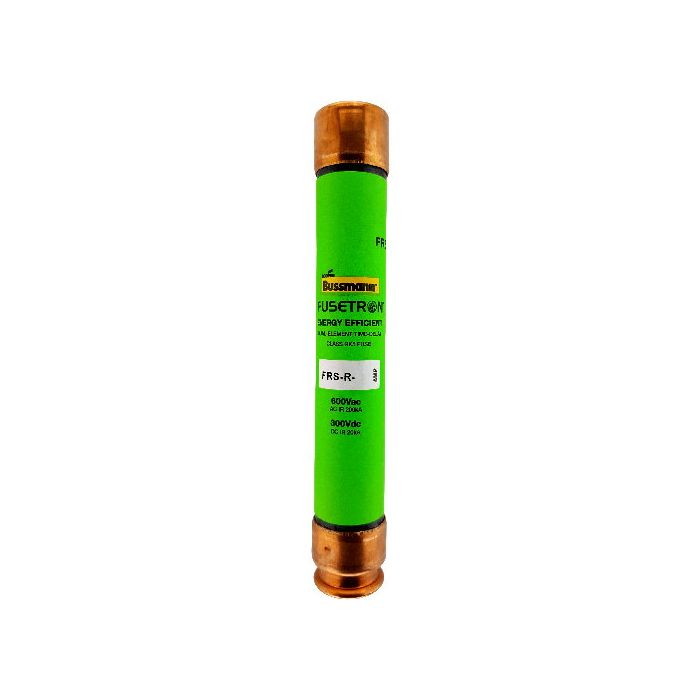

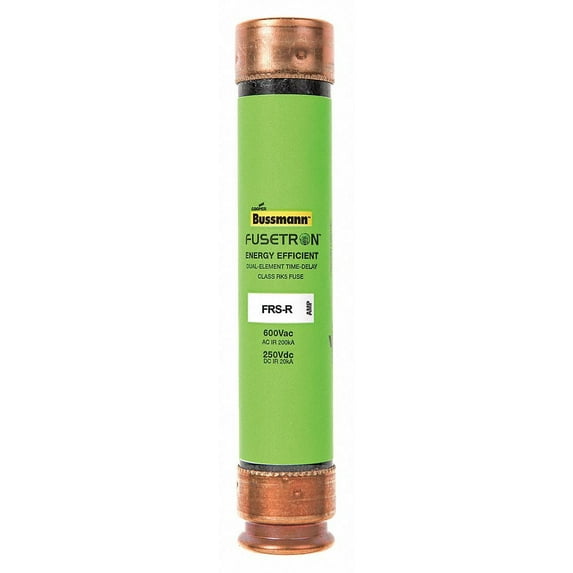

The Bussmann FRS-R-1-1/2 is a Fusetron Class RK5 dual element fuse. This Eaton Bussmann Series Class RK5 fuse is a time-delay, current limiting fuse with an interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc.

• Dual-element construction
• Time-delay functionality
• Energy efficient advanced protection

Product Highlights

The Bussmann FRS-R series delivers a minimum of 10 seconds of time-delay at 500% of rated current.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FRS-R-1-1/2
• Country of Origin: MX - Mexico

Technical Specifications

• Manufacturer: Bussmann
• Manufacturer #: FRS-R-1-1/2
• Catalog Number: FRS-R-1-1/2
• UPC: 051712507967
• EAN: 5027590060905
• Product Length/Depth: 5 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 1.5 A
• Interrupt rating: 20 kAIC at 300 Vdc
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK5
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Amps: 1 1/2
• Voltage: 600
• Element: Dual
• Time Delay: Yes
• Physical Size: 0.81" x 5"
• AC Voltage Rating: 600
• Current-limiting: Yes
• UL Listed: Class RK5, Guide JDDZ, File E4273
• CSA Certified: Class 1422-01, File 53787
• Ampere: 1.5 A
• Speed: Time Delay / Slow Blow
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse FLSR
• Dimensions: 0.81" Dia x 5" L (20.57x127mm)
• Application: Combination starters, motor control centers, machinery disconnects, power panelboards
• Fuse Interrupt Rating: 200 kAIC at 600V ac
• Rated Voltage: 600V ac/300V dc
• Fuse Amps: 1.5A
• Length: 0.81 in.
• Height: 5 in.
• Width: 0.81 in.
• ECCN: EAR99
• UNSPSC: 39121606
• Electrical fuse type: Cartridge Fuses
• Volts: 600 V
• Brand: Bussmann
• Has nrtl listing certification: N
• Count: 1
