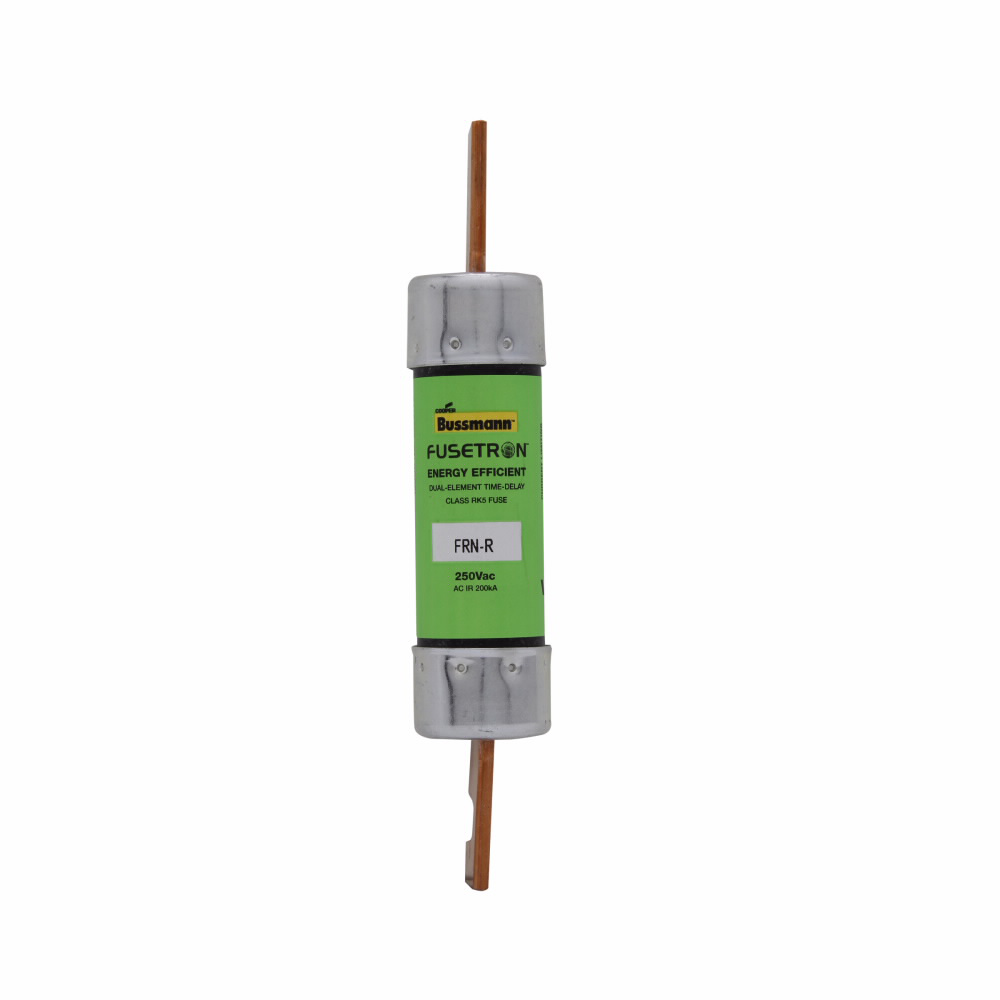

Bussmann FRN-R-90 250V 90Amp Dual-Element, Time-Delay Class-RK5 Fuse

Product Description

The Bussmann FRN-R-90 is a 250 volt, 90 amp dual-element, time-delay fuse designed for various electrical applications. It is suitable for use in equipment where current limiting is necessary. The fuse is categorized under Class RK5, ensuring its efficiency and reliability in protecting circuits.

• Dual-element design for enhanced time delay performance
• Rated at 90A and 250VAC, 125VDC
• Blade connection type for secure fitting

Product Highlights

This fuse features a rejection style design to prevent incorrect replacements and is UL listed for safety. It provides protection against motor overloads, ground faults, and short circuits, making it ideal for combination starters, motor control centers, and power panel boards.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage Rating: 250 Volt AC, 125 Volt DC
• Amperage Rating: 90 Amp
• Interrupt Rating: 200 Kilo-Amp at 250 Volt AC, 20 Kilo-Amp at 125 Volt DC
• Response Time: 10 seconds at 500%
• Dimensions: 1.06 inch diameter x 5.88 inch length
• Construction: Fiberglass
• Element Type: Dual
• Standard Compliance: UL 248-12, CE Marked, CSA Certified
