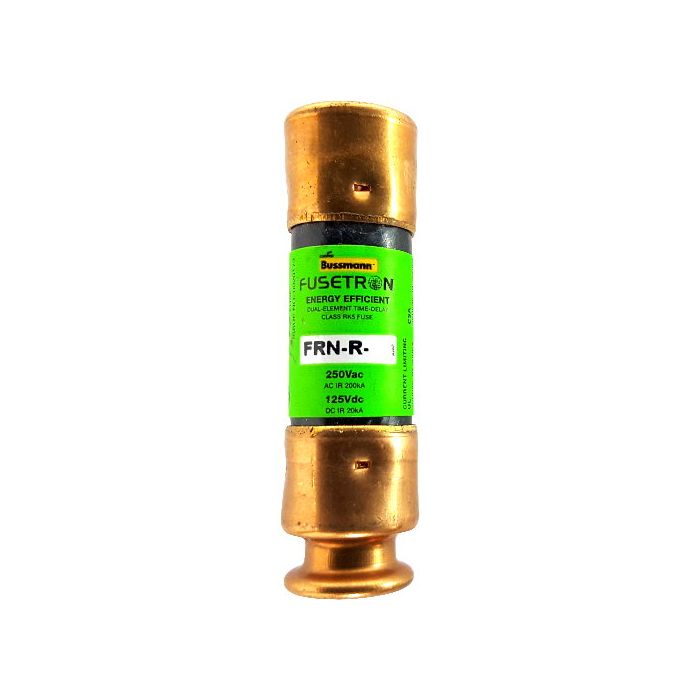

Bussmann FRN-R-8/10 Fuse 0.8 A

Product Description

The Eaton Bussmann Series Class RK5 fuse, FRN-R-8/10, is a time-delay, dual-element, current limiting fuse. Rated at 0.8 A, this non-indicating fuse has an interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc. It provides energy-efficient advanced protection with optional open fuse indication on select ratings.

• Time-delay
• Dual-element
• Current limiting fuse

Product Highlights

The Bussmann FRN-R-8/10 fuse is ideal for combination starters, motor control centers, machinery disconnects, and power panelboards.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FRN-R-8/10

Technical Specifications

• Product Name: Eaton Bussmann series FRN-R fuse
• Catalog Number: FRN-R-8/10
• UPC Code: 51712507073
• EAN: 5027590060882
• Product Length/Depth: 0.56 in
• Product Height: 2 in
• Product Width: 0.56 in
• Product Type: Fuse
• Amperage Rating: 0.8 A
• Interrupt rating: 200 kAIC at 250 Vac
• Response time: 8 sec at 500%
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK5
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• AC Voltage Rating: 250
• UL Class: RK5
• Element: Dual
• Time Delay: Yes
• Physical Size: 0.56" x 2"
• Interrupting Rating DC: 20,000 @ 125 VDC
• UL Listed: Class RK-5, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.12, Class 1422-01, File 53787
• Applications: Combination starters, motor control centers, machinery disconnects, power panelboards
• Size: 0.56 In Diameter X 2.00 In Length
• Standard: CE,CSA,UL 248-12
• Type: Current Limiting, Time Delay
• Voltage: 125 Volt
• Brand: Bussmann Series
• Sub Brand: Fusetron
• Dimensions: 2.00 in H X 0.56 in W X 0.56 in L
• Current Rating: 0.8 A
• Indicator: Non-indicating
• Shape: RECTANGULAR
• Unit of Measure: EA
