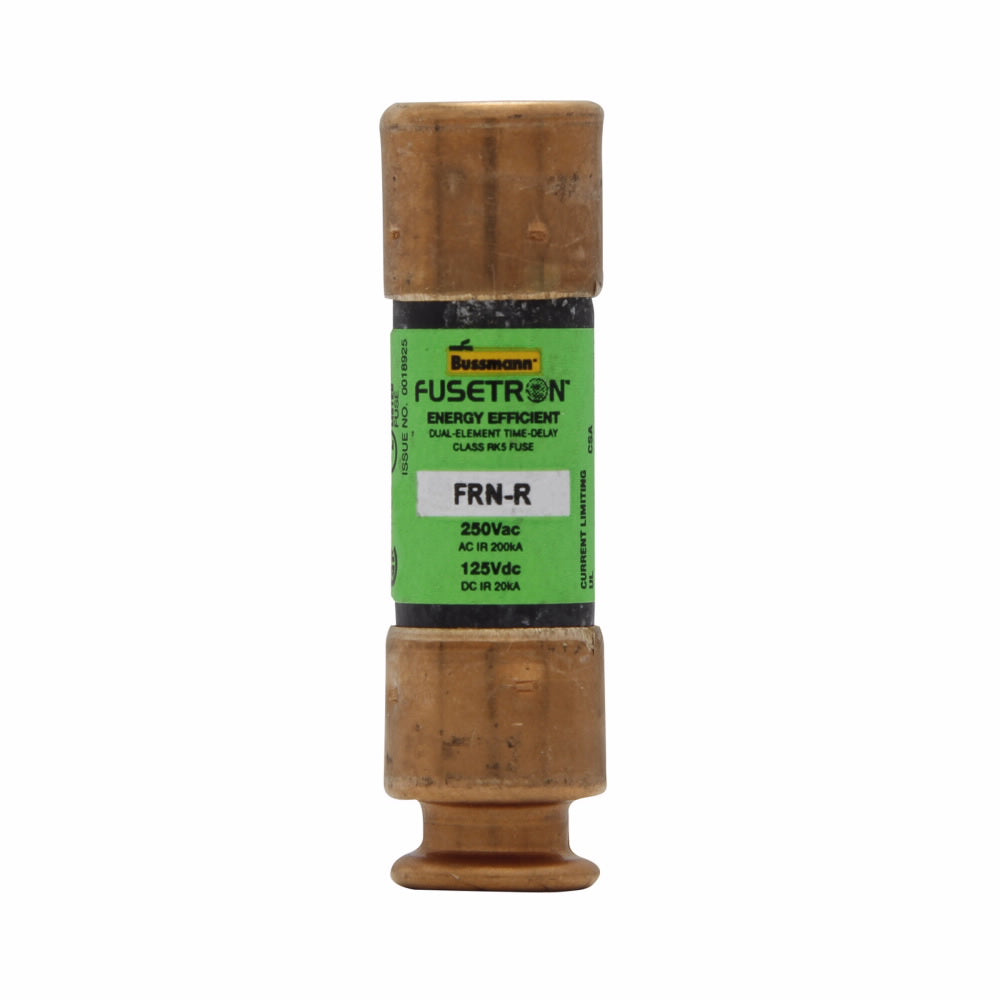

Bussmann FRN-R-7 Fusetron Dual Element Current Limiting Time Delay Fuse 7 A 250 VAC/125 VDC

Product Description

The Bussmann Series FRN-R-7 is a Class RK5, dual element, current-limiting, time delay fuse from Eaton. This fuse is rated at seven amperes and is designed for use in various electrical applications that require reliable overcurrent protection.

• Provides effective motor overload and short circuit protection
• Time delay of ten seconds at 500% rated current
• Ferrule end connections for easy installation

Product Highlights

Designed to safeguard motors and equipment, this fuse can handle temporary overloads while ensuring operational safety.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: FRN-R-7
• Voltage Rating: 250 VAC / 125 VDC
• Amperage Rating: 7 A
• Interrupt Rating: 200 kAIC at 250 V / 20 kAIC at 125 VDC
• Size: 0.56 in diameter x 2 in length
• Response Time: 10 seconds at 500%
• Material: Fiberglass
• Type: Current Limiting
