Description

Product Description

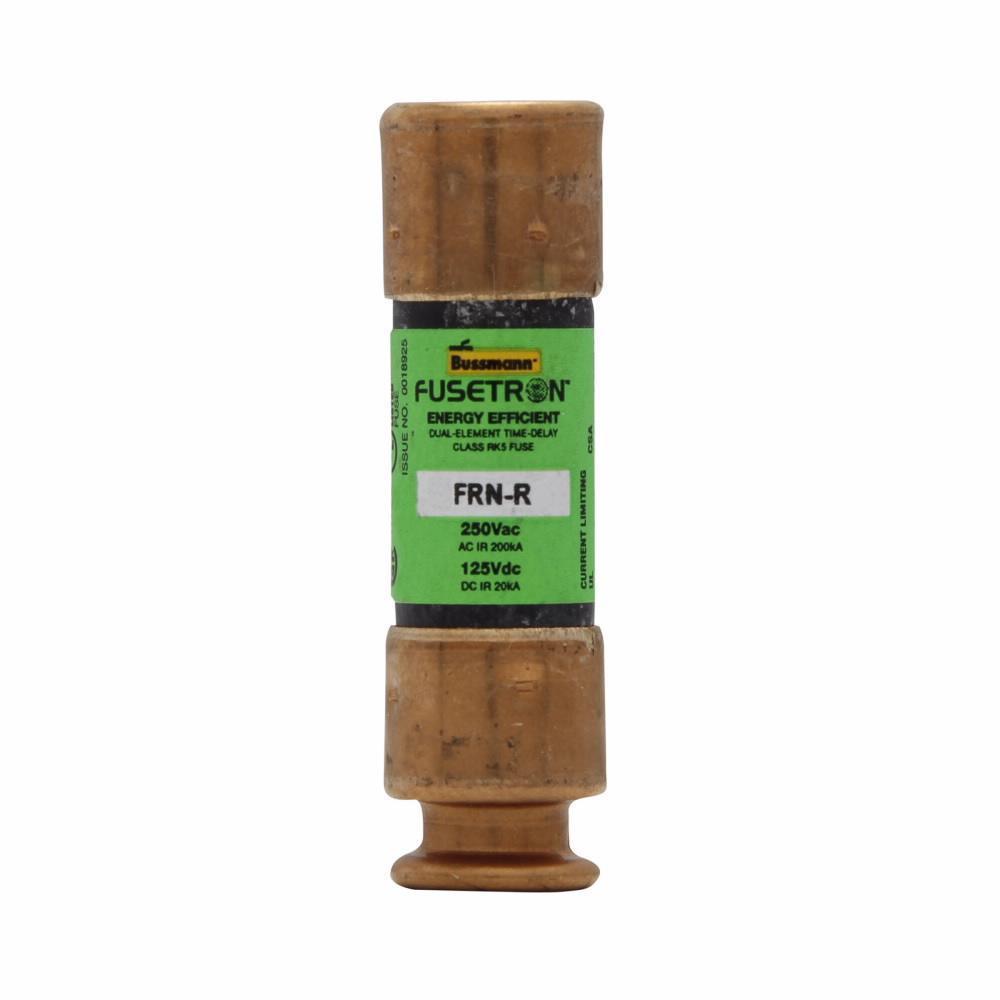

The BUSSMANN FRN-R-7-1/2 is a Class RK5, dual element, current limiting, time delay fuse. This 7.5A fuse provides motor overload, ground fault, and short circuit protection. It protects motors against burnout from overloads and single phasing on 3 phase systems.

  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads
  • Helps protect motors against burnout from single phasing on 3 ph systems

Product Highlights

This fuse simplifies and improves blackout prevention and can be applied in circuits subject to temporary motor overloads and surge currents.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: FRN-R-7-1/2
Technical Specifications
Body Size
0.56 in Dia x 2 in L
Element
Dual
Indicating/Non-Indicating
Non-Indicating
Material
Fiberglass
Mounting Type
Holder
Rejection/Non-Rejection
Rejection
Response Time
8 s at 500%
Series
FRN-R
Terminal Type
Ferrule
Type
Current Limiting
Amperage Rating
7.5 A
Voltage Rating
250 VAC/125 VDC
Interrupt Rating
20/200 kA
Class
RK5
Body Type
Cylindrical
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-7-1/2
UPC
051712506977
EAN
5027590427562
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Compliances
CE Marked
Product Type
Fuse
Number of elements
Dual
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Ampere
7.5 A
Speed
Time Delay / Slow Blow
Approvals
CE, UL, CSA
Substitute parts
Littelfuse FLNR
Dimensions
0.56" Dia x 2" L (14.22x50.8mm)
Amps
7 1/2
Volts AC
250
UL Class
RK5
Time Delay
Yes
Physical Size
0.56" x 2"
AC Voltage Rating
250
DC Voltage Rating
125
UL Listed
Class RK-5, Guide JDDZ, File E4273
CSA Certified
C22.2 No. 248.12, Class 1422-01, File 53787
Mfr. #
FRN-R-7-1/2
Mfr.
Bussmann / Eaton
Current Rating
7.5A
Fuse Element
Dual Element
Characteristics
Dual Element, 8 Sec Time Delay
Item Type
Class RK5
Length
2 Inch
Unspsc
39121627
Approval
UL 248-12, CSA C22.2, CE
Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security Systems
Standards
CE Certified|CSA File No. 53787 C22.2 No. 248.12 1422-02|UL 248-12/File No. E4273|UL Guide JDDZ
