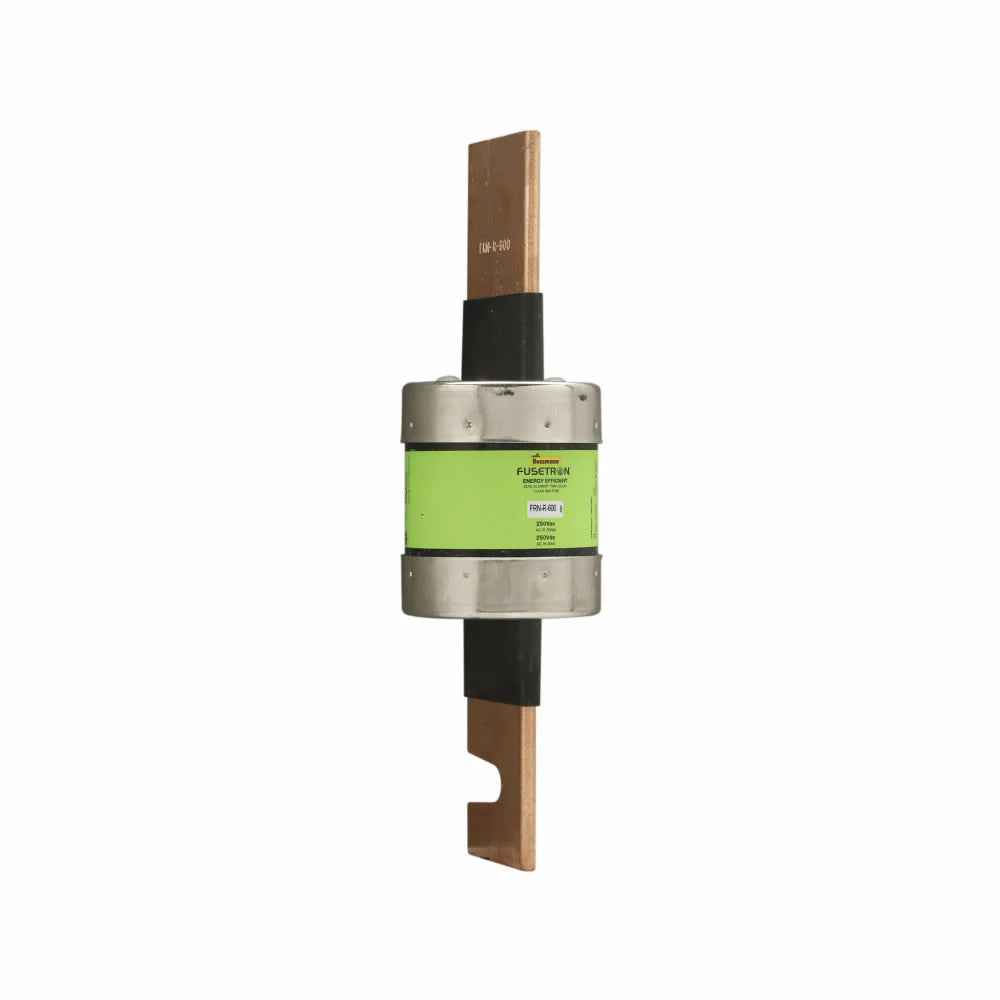

Bussmann FRN-R-600 FUSE DLY TIME 600A 250 VAC/125 VDC RK5

Product Description

The Bussmann FRN-R-600 is a current limiting time delay fuse designed for heavy-duty applications. This dual element fuse is rated for six hundred Amps and is suitable for use in circuits with voltage levels up to two hundred fifty VAC or one hundred twenty-five VDC. The fuse is UL listed and classified as RK5, ideal for use in power distribution and motor protection systems.

• Current limiting design
• Time delay characteristics
• Non-indicating and dual element structure

Product Highlights

Utilizes advanced technology to provide safety against overloads and short circuits while ensuring reliable operation in power distribution applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part No: FRN-R-600

Technical Specifications

• Amperage Rating: 600 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 20/200 kA
• Response Time: 10 seconds at 500%
• Body Size: 2.88 inches diameter x 10.38 inches length
• Material: Fiberglass
• Type: Current Limiting
• Class: RK5
