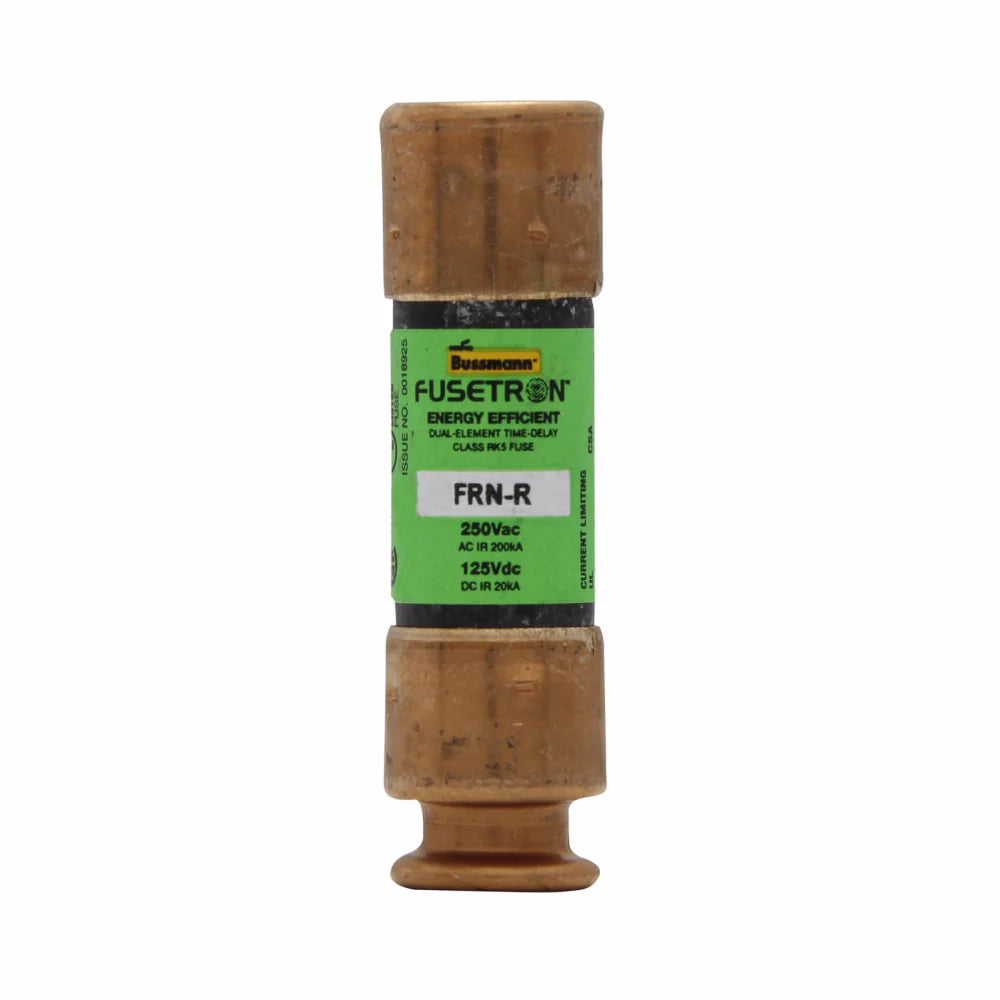

Bussmann FRN-R-6 FUSE DLY TIME 6A 250 VAC/125 VDC RK5 CYL

Product Description

The Bussmann FRN-R-6 is a time delay fuse designed for circuits requiring effective current limiting. With a rating of six amps at two hundred fifty volts AC and one hundred twenty-five volts DC, this fuse is compliant with Class RK5 standards and is suitable for use in various applications.

• Provides motor overload and ground fault protection.
• Helps prevent motor burnout caused by overloads.
• Designed for three-phase systems to mitigate the risk of single phasing.

Product Highlights

This fuse simplifies blackout prevention through selective coordination ratios. The dual element design caters to circuits exposed to temporary overloads.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• MPN: FRN-R-6
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 6 A
• Interrupt Rating: 20/200 kA
• Response Time: 10 s at 500%
• Body Size: 0.56 in Dia x 2 in L
• Material: Fiberglass
• Mounting Type: Holder
