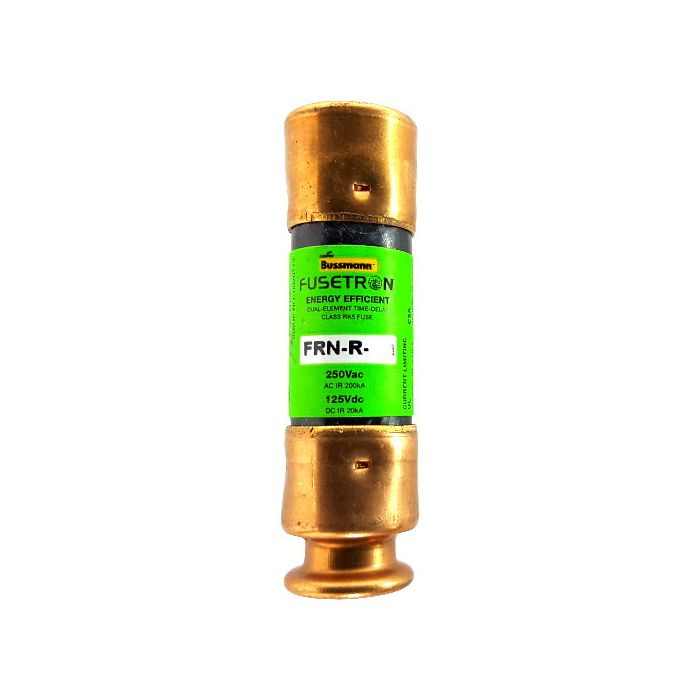

Bussmann FRN-R-6-1/4 Fusetron 6-1/4 Amp Fuse

Product Description

The Bussmann FRN-R-6-1/4 is a 6-1/4 Amp, 250V Fusetron dual element, time-delay, current limiting Class RK5 fuse and is UL Listed. This fuse provides advanced protection and energy efficiency. It is suitable for combination starters, motor control centers, machinery disconnects and power panelboards.

• Dual-element construction
• Time-delay functionality
• Current-limiting capabilities

Product Highlights

The Bussmann FRN-R-6-1/4 fuse offers reliable protection for various applications, with time-delay functionality to prevent nuisance tripping.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FRN-R-6-1/4

Technical Specifications

• Brand: Bussmann
• MPN: FRN-R-6-1/4
• Model / MPN: 2699007572
• Product Type: Fuse
• Amperage Rating: 6.25A
• Interrupt rating: 20 kAIC at 125 Vdc 200 kAIC at 250 Vac
• Response time: 8 sec at 500%
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK5
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• AC Voltage Rating: 250
• DC Voltage Rating: 125
• Interrupting Rating: 20,000 @ 125 VDC
• Amps: 6 1/4
• Volts: 250
• Ampere: 6.25 A
• Speed: Time Delay / Slow Blow
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse FLNR, Mersen TR-R
• Material: Copper
• Maximum Current: 6.25 Amps
• Mounting Type: Through-Hole Mount
• Current Rating: 6.25 Amps
• Specification Met: UL
• UNSPSC Code: 39120000
• Application: Combination starters, motor control centers, machinery disconnects, power panelboards
• Body Material: Fiberglass
• Series: Fusetron/FRN-R Series
• Termination: Cartridge
• Type: Fuse
• UPC Code: 051712507240
• Diameter: 0.56 0.008 in
• Length Tolerance: +/-0.31"
• Primary Type: Single Use Fuses
