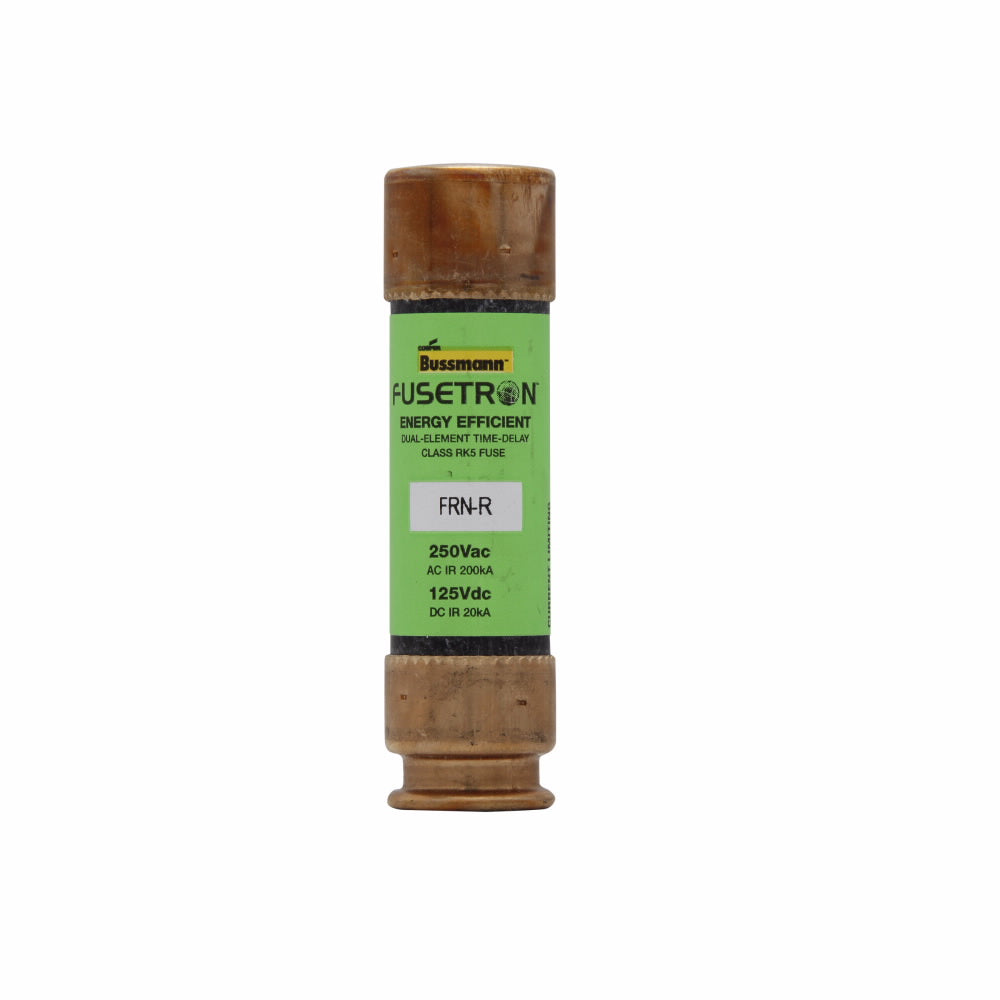

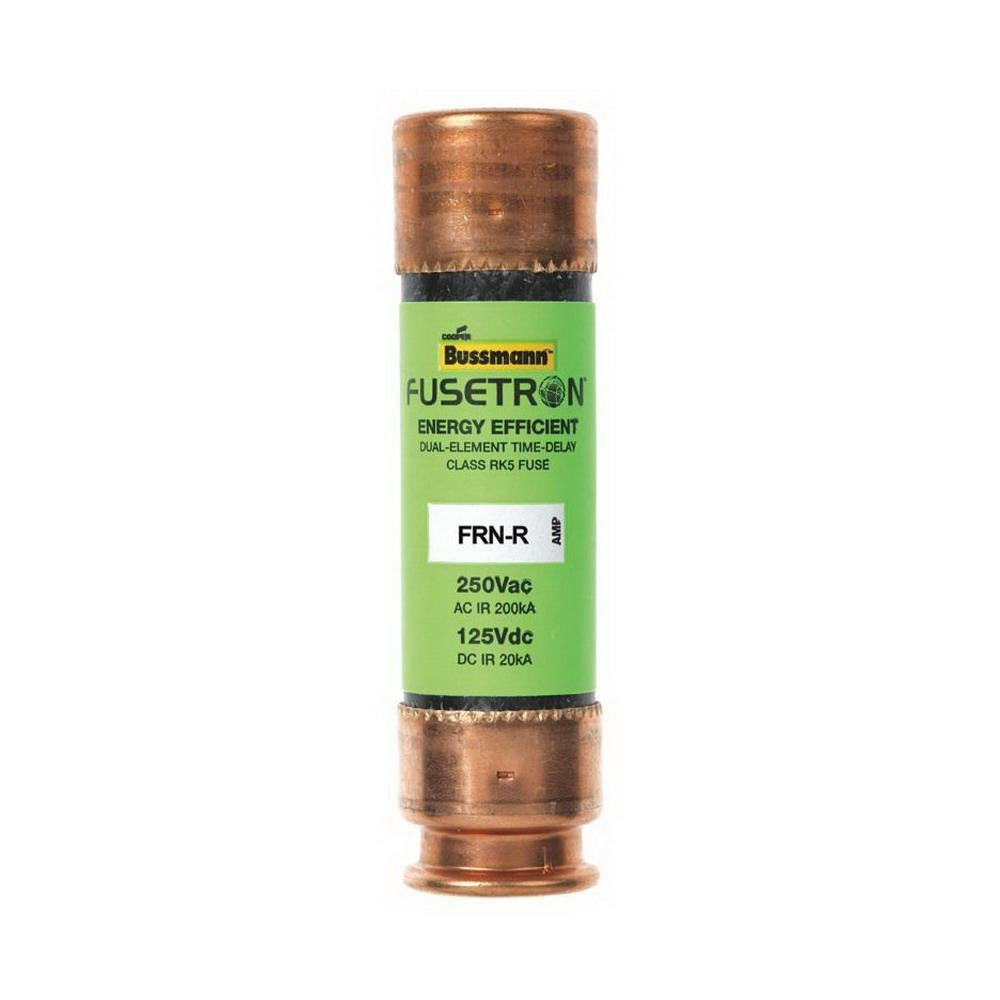

Bussmann FRN-R-45 FUSE DLY TIME 45A 250VAC/125VDC RK5

Product Description

The Bussmann FRN-R-45 is a current limiting energy efficient time delay fuse. It is rated for forty-five amps at two hundred fifty volts alternating current and one hundred twenty-five volts direct current. This fuse is designed for use in applications where reliable protection from overloads and short circuits is necessary.

• Rated for 45 amps at 250 volts AC/125 volts DC
• Dual-element construction for improved time delay performance
• Interrupting rating of 200 kA at 250 volts AC

Product Highlights

This fuse features a cylindrical body made from fiberglass with insulated caps to minimize exposure to live parts. It is ideal for use in motor control centers, machinery disconnects, and power panel boards.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Energy Efficient
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 45 A
• Interrupt Rating: 200/20 kA
• Body Style: Cylindrical
• Body Size: 0.81 inches dia x 3 inches length
• Element Type: Dual
• Indication: Non-Indicating
• Mounting Type: Holder
• Response Time: 10 seconds
• Construction Material: Fiberglass
