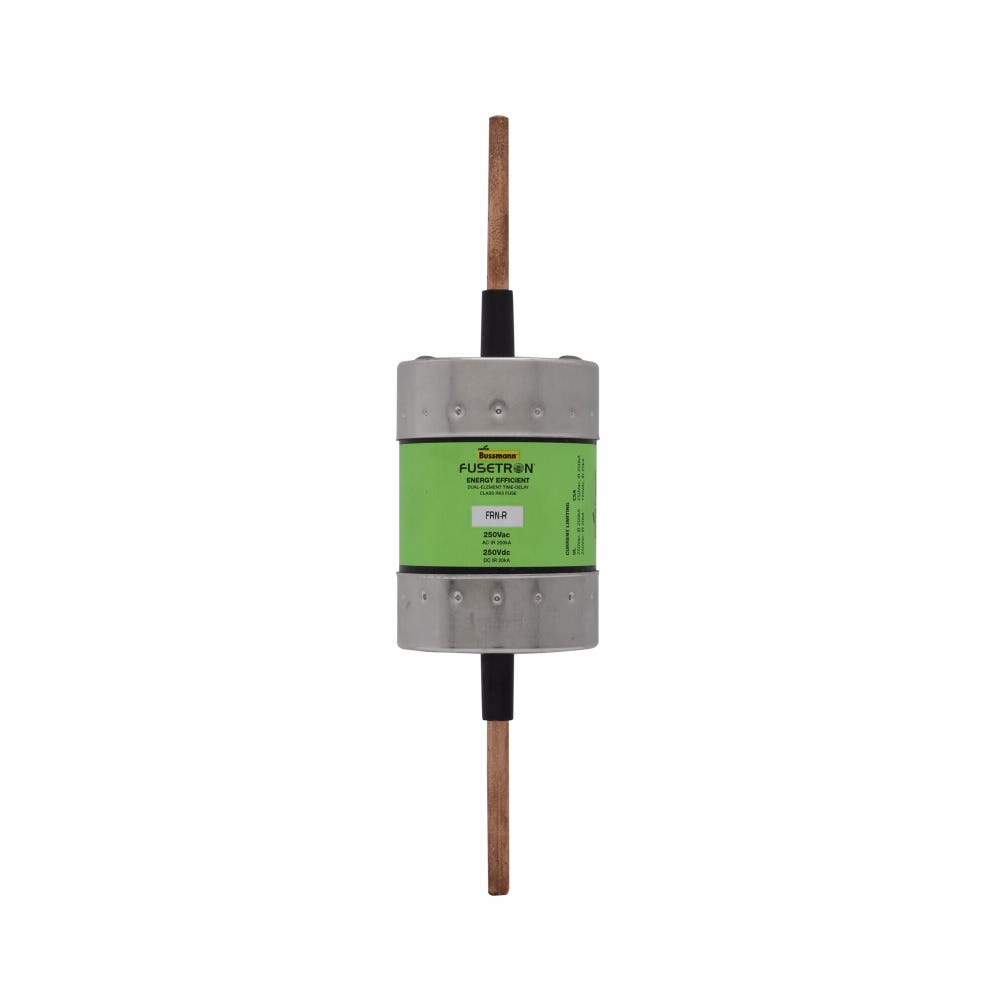

Bussmann FRN-R-250 FuseTRON Class RK5 Dual-Element Fuse

Product Description

The Bussmann FRN-R-250 is a FuseTRON Class RK5 dual-element fuse. This Cooper Bussmann fuse is made in the USA. It is a time-delay, current limiting, non-indicating fuse with an interrupting rating of 200 kA at 250 Vac and 20 kA at 250 Vdc.

• Time-delay
• Dual-element
• Current limiting
• Non-indicating

Product Highlights

The Bussmann FRN-R-250 fuse is ideal for industrial applications requiring reliable circuit protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FRN-R-250
• Country of Origin: USA

Technical Specifications

• Brand: Bussmann
• MPN: FRN-R-250
• Manufacturer: Cooper Bussmann
• Model / MPN: FRN-R-250
• UPC: 051712507509
• Product Type: Fuse
• Amperage Rating: 250 A
• Interrupt rating: 200 kAIC at 250 Vac
• Response time: 10 sec at 500%
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Class: Class RK5
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Amperage: 250
• Voltage: 250 Volts AC
• Element: Dual
• Time Delay: Yes
• AC Voltage Rating: 250
• Interrupting Rating: 20,000 @ 125 VDC
• DC Voltage Rating: 250
• UL Listed: Class RK-5, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.12, Class 1422-01, File 53787
• Series: FRN-R
• Part Number: FRN-R 083
• Mfg Cat No: FRN-R-250
• VAC: 250
• Amps: 250 Amp
• Category: Circuit Protection
• Applications: Electrical, Industrial
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Current Rating (Amps): 250A
• Voltage Rating - AC: 250 VAC
