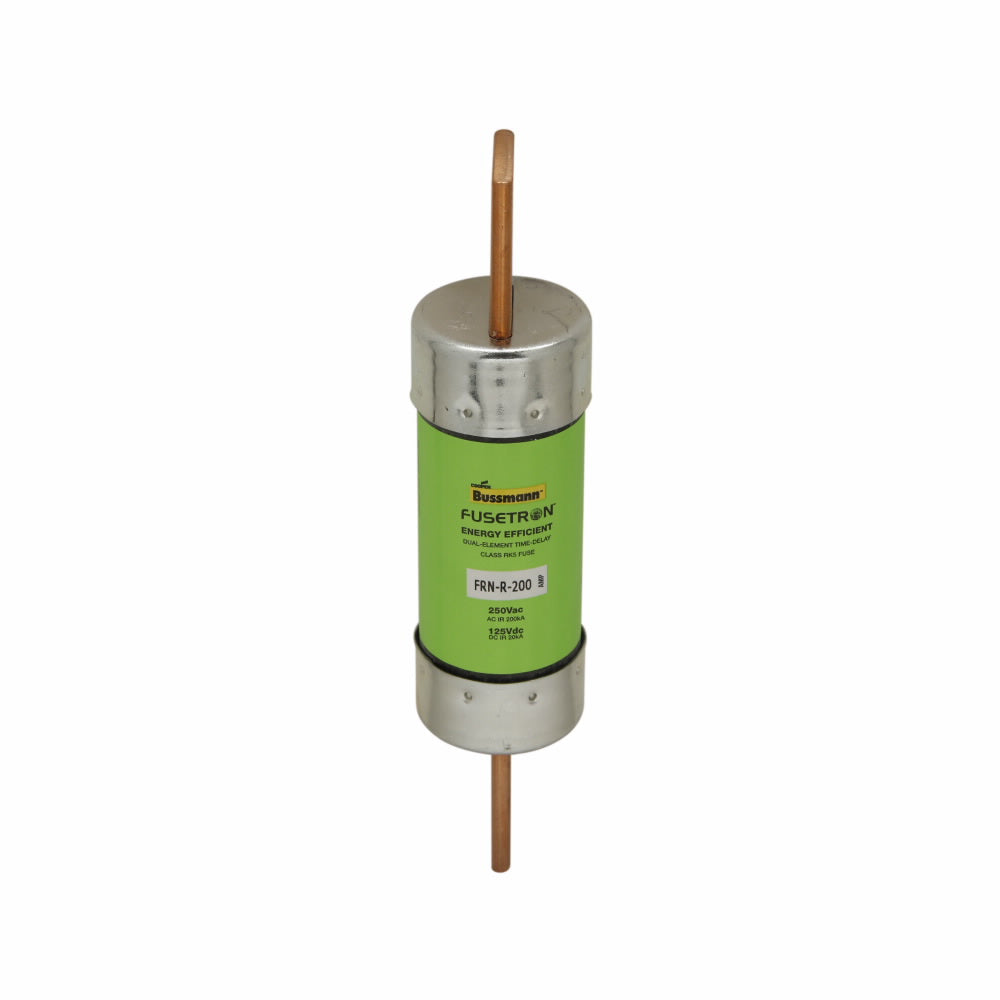

Bussmann FRN-R-200 Fuse DLY Time 200A 250 VAC/125 VDC RK5

Product Description

Bussmann FRN-R-200 is a current-limiting time delay fuse designed to provide reliable protection for electrical systems. This fuse supports a current rating of two hundred amps at two hundred fifty volts AC and one hundred twenty-five volts DC. The dual-element design enhances the fuse's ability to withstand temporary overloads while safeguarding against short circuits and ground faults.

• Rated for two hundred amps with a voltage rating of two hundred fifty volts AC and one hundred twenty-five volts DC.
• Interrupt current rating of two hundred kiloamps at two hundred fifty volts AC and twenty kiloamps at one hundred twenty-five volts DC.
• Constructed from fiberglass with a blade terminal connection.

Product Highlights

This fuse is ideal for applications in combination starters, motor control centers, and machinery disconnects. It features a rejection style design to prevent incorrect replacements.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part No: FRN-R-200
• UPC: 051712101899
• Category: Fuses, Blocks & Holders

Technical Specifications

• Type: Current Limiting
• Class: RK5
• Body Size: 1.56 inches Diameter x 7.13 inches Length
• Element: Dual
• Construction: Fiberglass
• Response Time: 10 seconds at 500%
• Interrupt Rating: 20/200 kA
