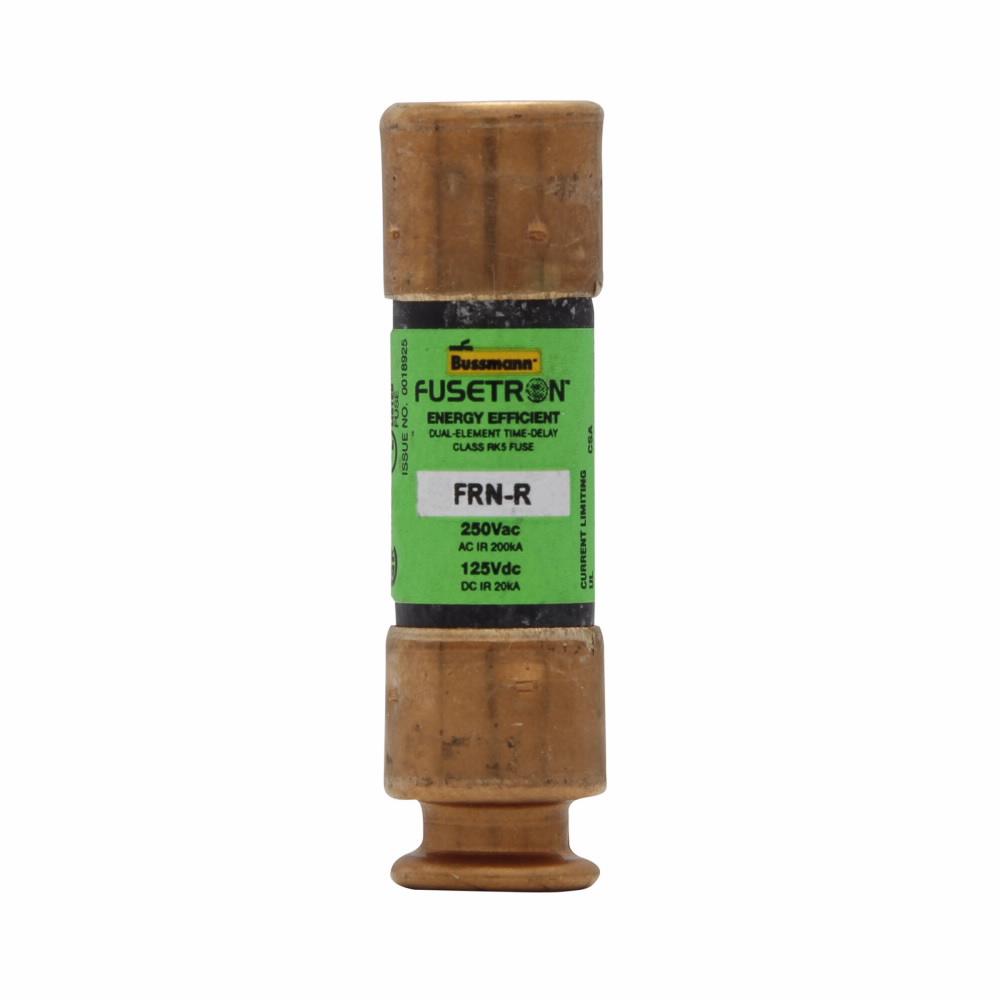

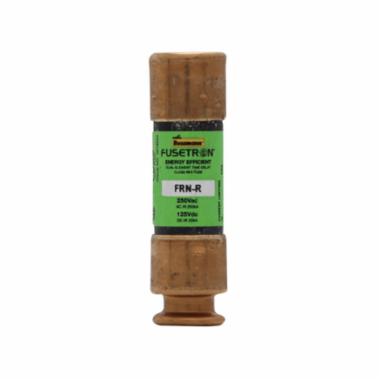

Bussmann FRN-R-1 Fuse Current Limiting Time Delay 1 A 250 VAC/125 VDC

Product Description

Bussmann FRN-R-1 is a current limiting time delay fuse designed for usage in electrical systems. Manufactured by Eaton, this fuse provides protection against overload, ground fault, and short circuits.

• 1 A rating, suitable for 250 VAC and 125 VDC applications.
• Time delay of 10 seconds at 500% of rated current.
• RK5 Class, cylindrical body type for easy installation.

Product Highlights

The Bussmann FRN-R-1 fuse is ideal for applications requiring high-performance overload protection. It helps prevent motor burnout from overloads and single phasing in three-phase systems.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Body Size: 0.56 inches diameter x 2 inches length
• Amperage Rating: 1 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 20/200 kA
• Class: RK5
• Type: Current Limiting
• Response Time: 10 seconds at 500%
• Element: Dual
• Material: Fiberglass
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Holder
• Terminal Type: Ferrule
• Rejection/Non-Rejection: Rejection
• Body Type: Cylindrical
