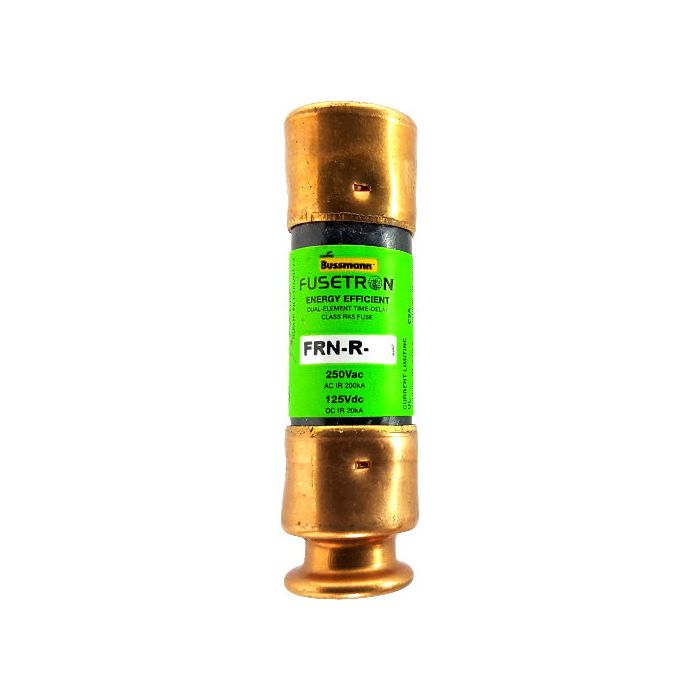

Bussmann FRN-R-1-8/10 Eaton Bussmann Series FRN-R Fuse 1.8A

Product Description

The BUSSMANN FRN-R-1-8/10 is an Eaton Bussmann Series Class RK5 fuse. This time-delay, dual-element, current limiting fuse is rated for 1.8A. It is a non-indicating fuse with an interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc. Ideal for combination starters, motor control centers, and power panelboards.

• Time-delay, dual-element fuse
• Interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
• 10 seconds (minimum) of time-delay at 500% of rated current

Product Highlights

The BUSSMANN FRN-R-1-8/10 fuse provides energy efficient advanced protection with its dual-element, time-delay construction.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FRN-R-1-8/10
• Country of Origin: MX - Mexico

Technical Specifications

• Product Name: Eaton Bussmann series FRN-R fuse
• Catalog Number: FRN-R-1-8/10
• UPC: 051712507134
• EAN: 5027590426077
• Product Length/Depth: 0.56 in
• Product Height: 2 in
• Product Width: 0.56 in
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 1.8A
• Interrupt rating: 20 kAIC at 125 Vdc 200 kAIC at 250 Vac
• Response time: 8 sec at 500%
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK5
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• AC Voltage Rating: 250
• DC Voltage Rating: 125
• Interrupting Rating: 20,000 @ 125 VDC
• Physical Size: 0.56" x 2"
• UL Class: RK5
• Element: Dual
• Time Delay: Yes
• Series: FRN-R
• Mpn: FRN-R-1-8-10
• Gtin: 51712507134
• ECCN: EAR99
• UNSPSC: 39121606
• Application: Combination starters, motor control centers, machinery disconnects, power panelboards
• Fuse Interrupt Rating: 200 kAIC at 250V ac
• Rated Voltage: 250V ac/125V dc
• Shape: Rectangular
• Fuse Amps: 1.8A
• Length: 0.56 in.
• Height: 2 in.
• Width: 0.56 in.
