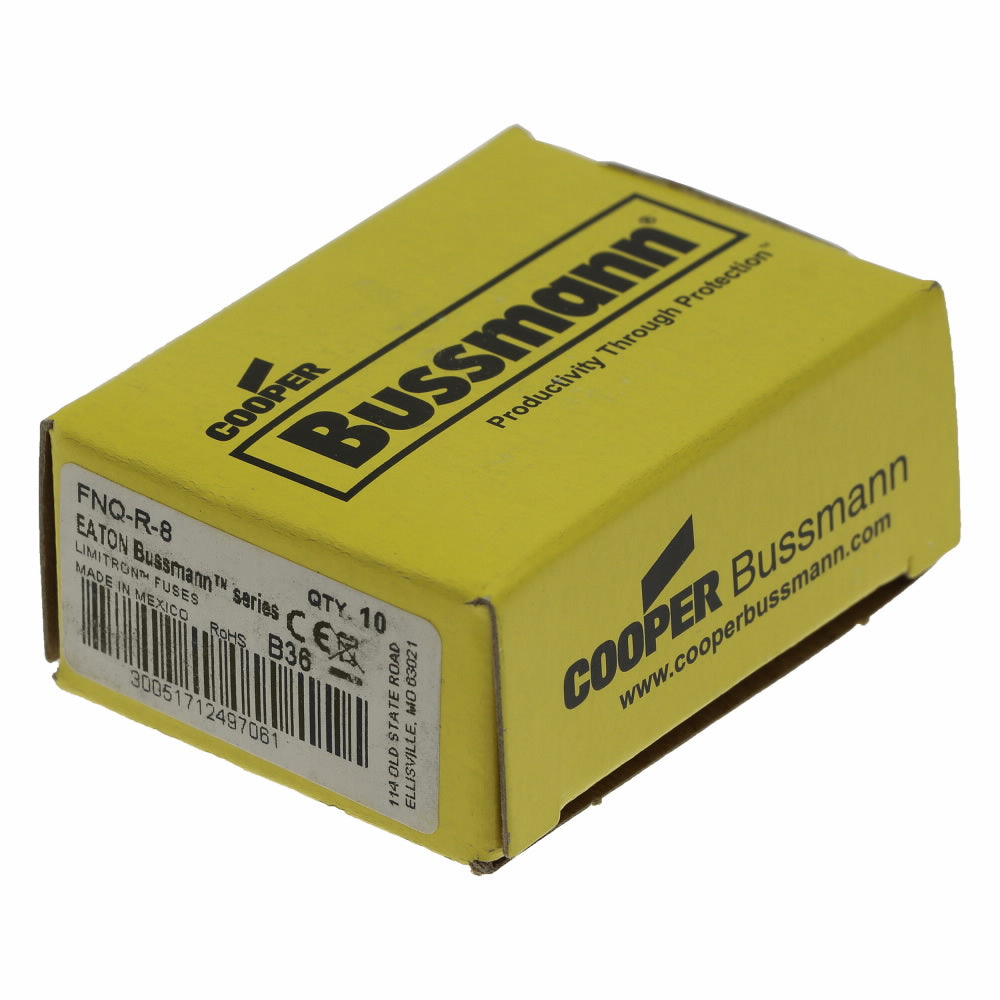

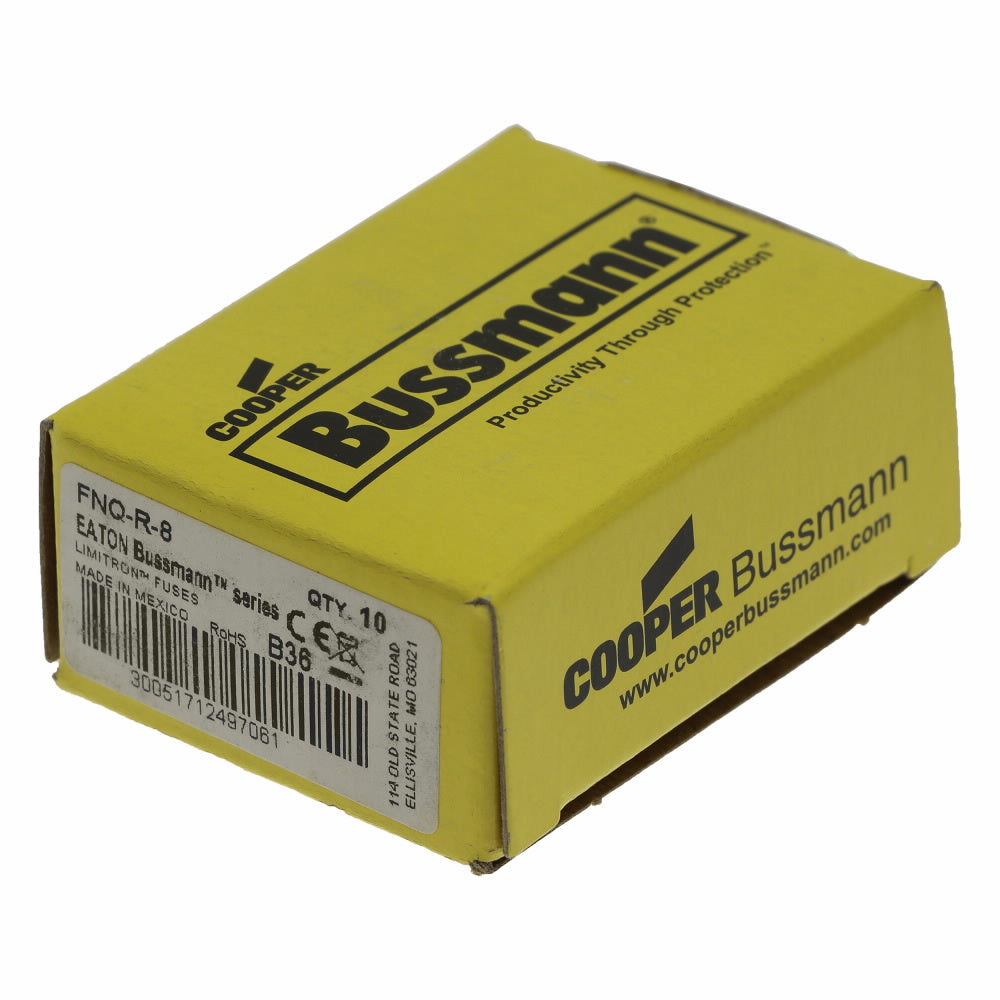

Bussmann FNQ-R-8 600V MDGT TD FS

Product Description

The Bussmann FNQ-R-8 is a Class CC fuse designed for reliable performance. This time-delay, dual-element fuse operates at eight amps with a voltage rating of six hundred volts. Its special rejection style offers a unique advantage in electrical systems. The fuse has an interrupting rating of two hundred kiloamperes at six hundred volts AC, making it suitable for various industrial applications.

• Time-delay feature for inrush applications
• Sizes: thirteen thirty-seconds inches in diameter by one and a half inches in length
• RoHS compliant and CE marked

Product Highlights

This fuse is ideal for industrial facilities, enhancing safety in electrical systems.

Product Information

Standard Information

• Brand: Bussmann
• Part Number: FNQ-R-8

Technical Specifications

• Amperage Rating: 8 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Dimensions: 1.5000 inches x 0.4100 inches x 0.4100 inches
• Material: Melamine tube
• Response Time: 12 seconds at 200%
• Application: Industrial Facilities - Safety and Security Systems
• Family Group: Fuses/Accessories
