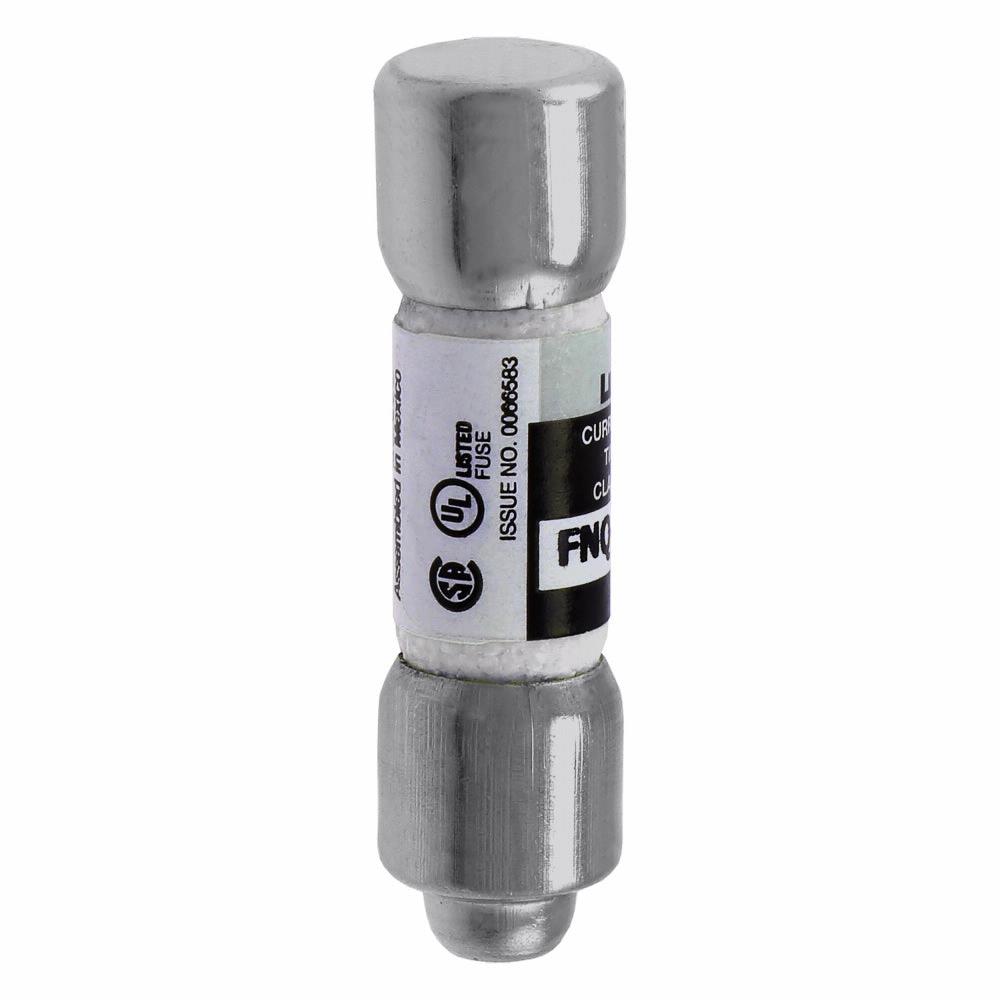

Bussmann FNQ-R-7 CL CC TM DLY FS 7 A Class CC Fuse

Product Description

The Bussmann FNQ-R-7 is a Class CC fuse designed for time-delay applications. This dual-element current limiting fuse is rated for seven amps and features a rejection style for improved safety. With an interrupting capacity of 200,000 amps at 600 volts AC, this fuse is ideal for various industrial settings.

• Time-delay for better performance in overload conditions
• Dual-element design enhances current limiting capabilities
• Rejection style ensures correct installation and safety

Product Highlights

The Bussmann FNQ-R-7 is suitable for use in industrial facilities, specifically in safety and security systems where reliable fuse protection is required.

Product Information

Standard Information

• Manufacturer: Bussmann
• Family Group: Fuses/Accessories

Technical Specifications

• Type: Fuse
• Class: Class CC
• Voltage Rating: 600 V
• Amperage Rating: 7 A
• Interrupt Rating: 200 kAIC
• Response Time: 12 Seconds Minimum at 200%
• Special Features: Rejection style
• Dimensions: 1.5 inches length x 0.41 inches diameter
• Material: Melamine tube with nickel-plated brass endcap
• Compliance: RoHS Compliant, CE Marked
