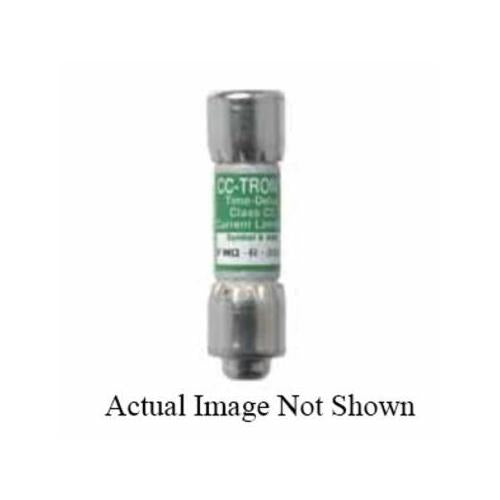

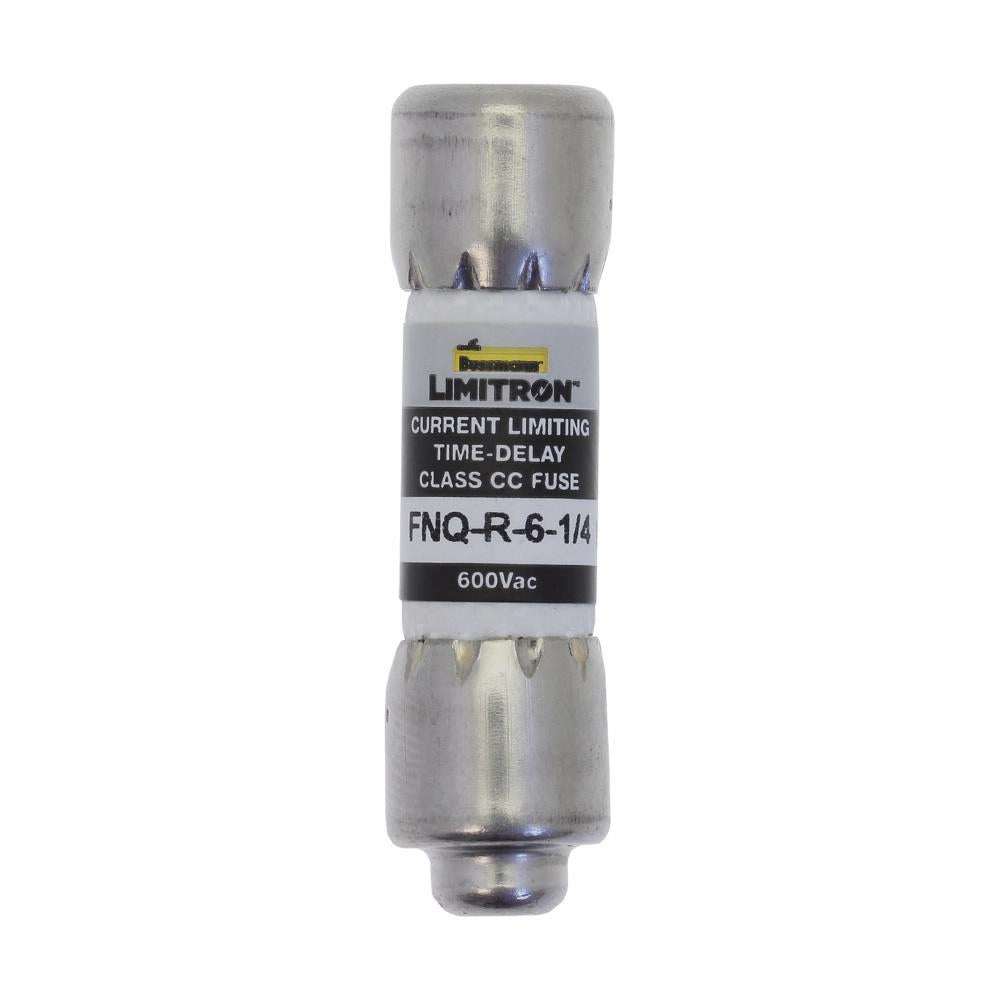

Bussmann FNQ-R-6-1/4 Current Limiting Time Delay Fuse 6.25 A 600 V

Product Description

The Bussmann FNQ-R-6-1/4 is a current limiting time delay fuse designed for optimal circuit protection. It operates at 6.25 amperes with a voltage rating of 600 volts and an interrupt rating of 200 kAIC. This cylindrical body fuse is part of the Class CC series, providing reliability and performance for control transformers and similar applications.

• Time delay compatible with small control transformer inrush characteristics
• 200 kA interrupt rating for high circuit protection
• Cylindrical body for versatile installation

Product Highlights

This fuse offers dual element protection with a fast-acting response to short circuits and overcurrent situations.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann
• Part Number: FNQ-R-6-1/4 BU

Technical Specifications

• Body Size: 13/32 in Dia x 1-1/2 in L
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine Tube
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 12 s at 200%
• Series: FNQ-R
• Terminal Type: Ferrule End
• Type: Current Limiting Time Delay
• Amperage Rating: 6.25 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Class: CC
• Body Type: Cylindrical
