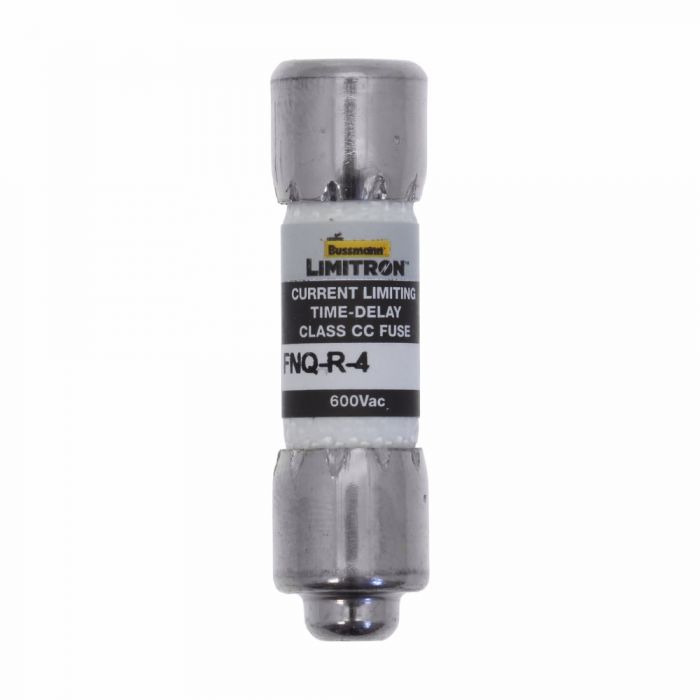

Bussmann FNQ-R-4 FUSE DLY TIME 4A 600V 200KA CC CYL HLDR

Product Description

Bussmann FNQ-R-4 is a time delay fuse designed for current limiting and high inrush applications. This fuse operates at four amperes and supports a voltage of six hundred volts with a two hundred kiloamp interrupting capacity. It is manufactured by Eaton and is suitable for Class CC applications.

• Time delay compatible with small control transformers
• 200 kA interrupt rating for high levels of current protection
• Rejection feature to prevent incorrect fuse installation

Product Highlights

The Bussmann FNQ-R-4 fuse is ideal for protecting circuits from overload conditions while supporting maximum component ratings.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting High Inrush
• Class: CC
• Series: FNQ-R
• Voltage Rating: 600 V
• Amperage Rating: 4 A
• Interrupt Rating: 200 kA
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cylindrical
• Mounting Type: Holder
• Response Time: 12 s at 200%
• Terminal Type: Ferrule
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
