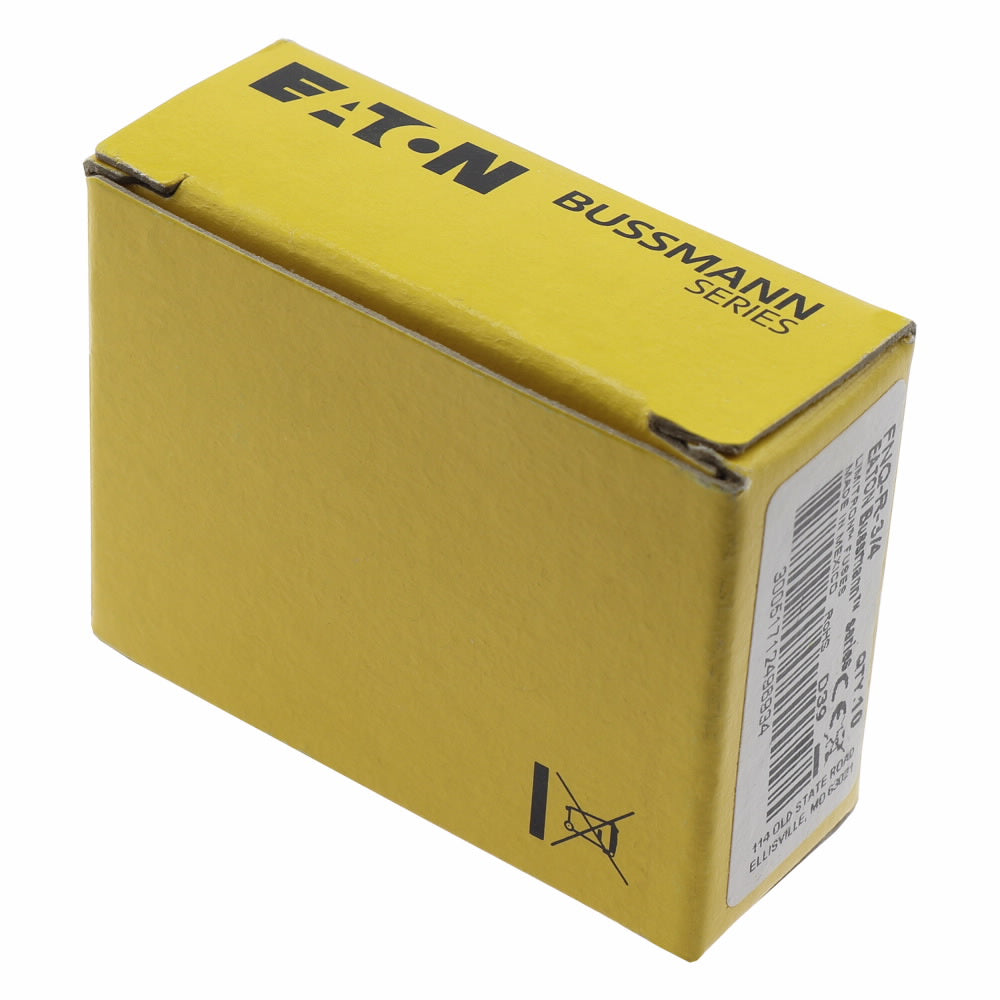

Bussmann FNQ-R-3/4 FUSE 0.75A 600V 200KAIC CC CYL REJECTION

Product Description

Bussmann FNQ-R-3/4 is a time delay current limiting fuse rated at 0.75 amperes and 600 volts. This cylindrical fuse features a 200 kA interrupt rating and is designed with a rejection style for added safety. It is suitable for protecting small control transformers and similar applications.

• Time delay compatible with inrush characteristics.
• Provides maximum short circuit current protection.
• 200 kA interrupt rating for high circuit safety.

Product Highlights

This Bussmann fuse excels in performance within Class CC categories, offering reliable circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Type: Current Limiting Time Delay
• Class: CC
• Voltage Rating: 600 V
• Amperage Rating: 0.75 A
• Interrupt Rating: 200 kAIC
• Body Size: 13/32 in Diameter x 1-1/2 in Length
• Material: Melamine Tube
• Mounting Type: Holder
• Response Time: 12 s at 200%
