EATON Bussmann FNQ-R-3-2/10 Fnq-R3-2/10 600V Mdgt Td Fs
EATON Bussmann FNQ-R-3-2/10 Fnq-R3-2/10 600V Mdgt Td Fs

Bussmann FNQ-R-3-2/10 Fnq-R3-2/10 600V Mdgt Td Fs

EATON
Brand: EATON
SKU: FNQ-R-3-2/10
Availability: In Stock

Ships same day if ordered by 12 pm
$91.21
$91.21
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

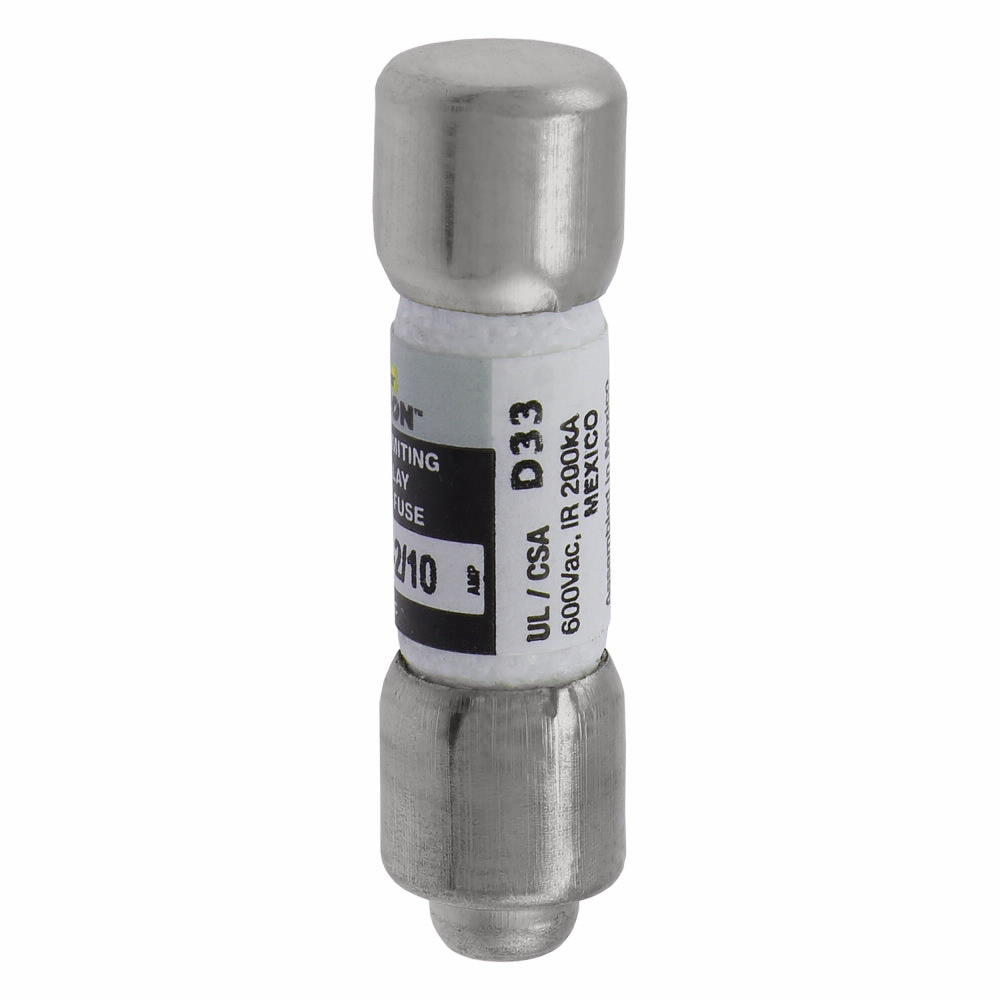

The BUSSMANN FNQ-R-3-2/10 is an Eaton Bussmann Series Class CC fuse. This time-delay, dual-element, current limiting fuse has a 3.2 A amperage rating and a rejection style. It has an interrupting rating of 200kA at 600Vac.

  • Time-delay, dual-element current limiting fuse
  • Rejection style
  • Interrupting rating of 200kA at 600Vac

Product Highlights

The BUSSMANN FNQ-R-3-2/10 fuse provides reliable circuit protection for industrial, commercial, and control transformer applications.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: FNQ-R-3-2/10
Technical Specifications
IGCC
4903
Size
13/32 In Diameter X 1-1/2 In Length
Type
Fuse
Class
Class CC
Material
Melamine tube
Standard
CE Marked;RoHS Compliant
Connection
Ferrule end x ferrule end
Dimensions
0.41" Dia x 1.5" L (10.3x38.1mm)
Application
Ind Facilities -N- Factories - Facility: Safety and Security Systems
Family group
FUSES/ACCESSORIES
Manufacturer
BUSSMANN
Response Time
12 S at 200%
Voltage Rating
600 V
Amperage Rating
3.2 A
Interrupt Rating
200 kAIC
Special Features
Rejection style
Catalog Number
FNQ-R-3-2/10
UPC
051712150927
EAN
5027590416528
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Compliances
CE Marked RoHS Compliant
Product Type
Fuse
Fuse indicator
Non-indicating
Packaging type
Standard
AC Voltage Rating
600
UL Listed
Std. 248-4, Guide JDDZ, File E4273
CSA Certified
Class CC CSA, Class 1422-01 File 53787?HRC-MISC
Ampere
3.2 A
Voltage rating
600 VAC
Speed
Time Delay / Slow Blow
Class CC Fuse
Class CC Fuse
Shape
Cartridge Fuses
Approvals
CE, UL, CSA, RoHS
Substitute parts
Littelfuse KLDR, Mersen ATQR
Part #
31A32119
Package Quantity
1
Mounting Type
Holder
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Element
Dual
Terminal Type
Ferrule
Catalog ID
BUSFNQ-R-3-2/10
Standard & Approvals
UL 248-4, Guide No. JDDZ, File No. E4273, CSA Class 1422-01, File No. 53787-HRC-MISC, CE Certified, RoHS Compliant
Breaking Capacity @ Rated Voltage
200kA
Fuse Type
Cartridge
Package / Case
5AG, 10mm x 38mm (Midget)
Current Rating (Amps)
3.2A
Size / Dimension
0.406" Dia x 1.500" L (10.30mm x 38.10mm)
