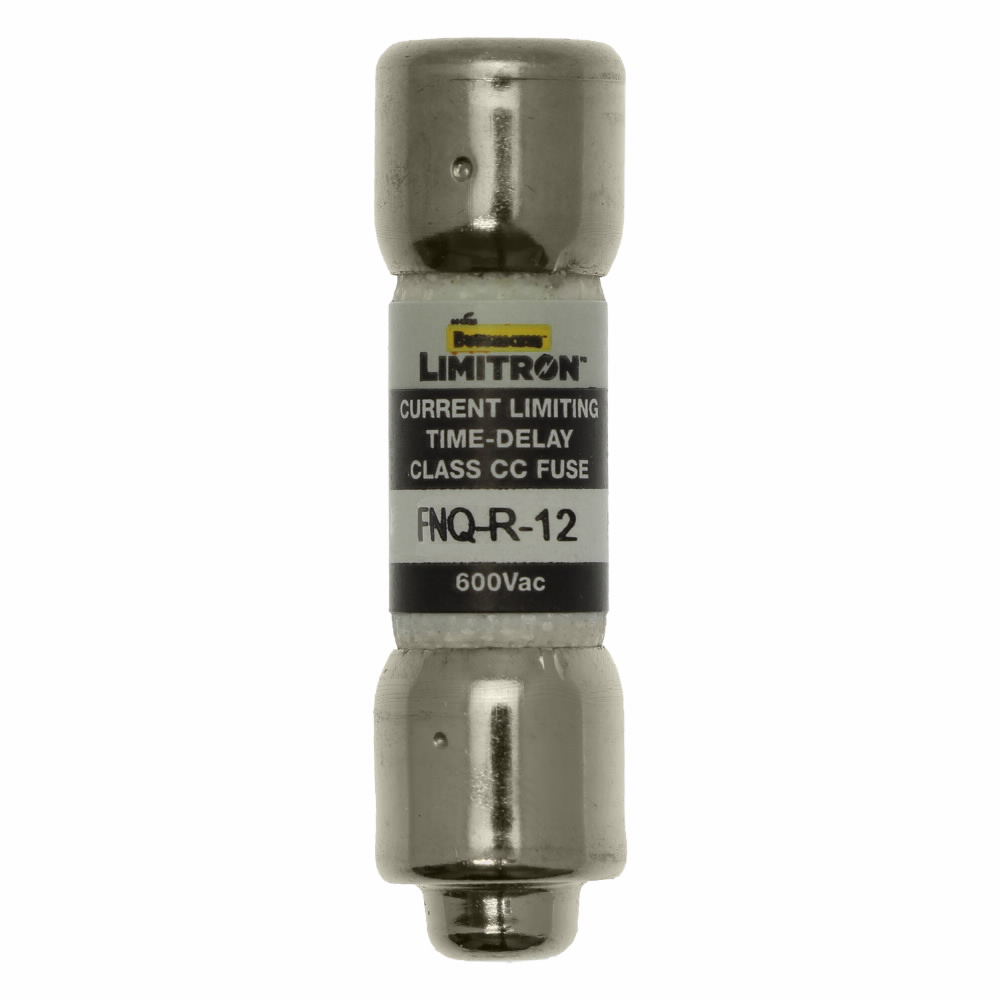

Bussmann FNQ-R-12 Class Time Delay Rejection Fuse

Product Description

The Bussmann FNQ-R-12 is a time delay rejection fuse designed for circuit protection applications. This fuse has a current rating of twelve amps and is classified as a Class CC fuse. It features ferrule ends and offers a high interrupting rating of two hundred kiloamperes. The fuse has a melamine tube construction and is suitable for use in systems up to six hundred volts.

• Amperage Rating: 12 Amp
• Interrupt Rating: 200 kAIC
• Response Time: 12 seconds at 200%

Product Highlights

This fuse is commonly used in various applications including line protection, small control transformers, and industrial control systems. It provides a reliable solution for overcurrent protection in electrical circuits.

Product Information

Standard Information

• Manufacturer: Bussmann
• Product Type: Current-limiting High Inrush Time-delay Fuse

Technical Specifications

• Voltage: 600 Volt
• Diameter: 0.46 Inch
• Length: 1.5 Inches
• Width: 0.41 Inch
• Material: Melamine
• Applications: Line Protection, Small Control Transformers
