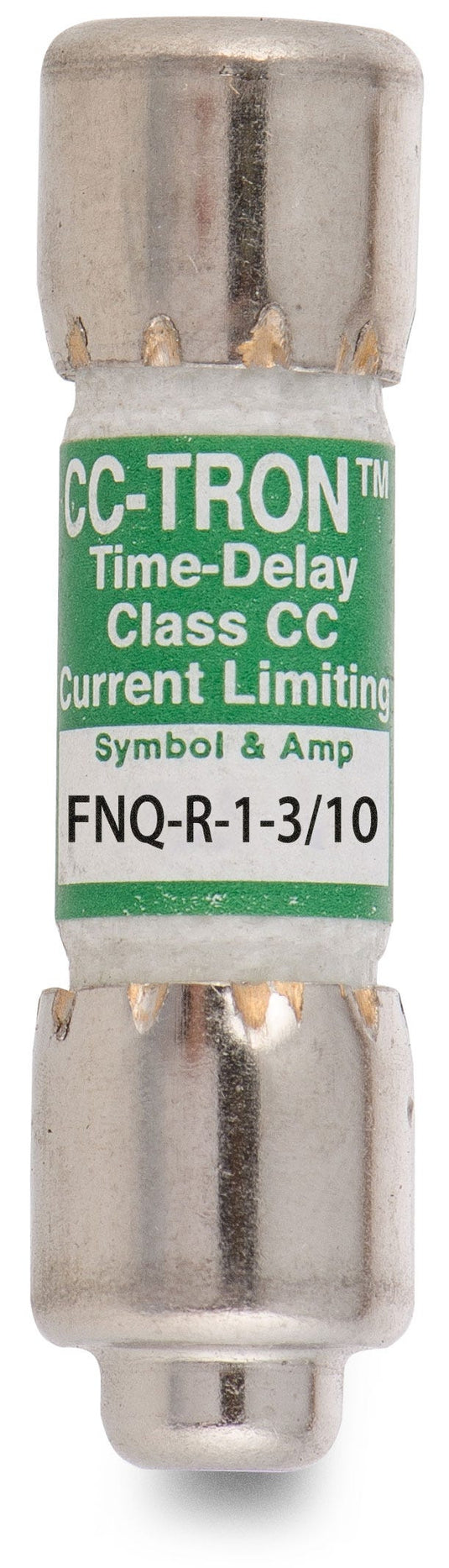

Bussmann FNQ-R-1-3/10 Fuse 1.30A

Product Description

The BUSSMANN FNQ-R-1-3/10 is an Eaton Bussmann Series Class CC, time-delay, dual-element, current limiting fuse. This rejection style fuse has an amperage rating of 1.30A and an interrupting rating of 200kA at 600Vac. It is designed for line protection, small control transformers, industrial control, and branch circuits.

• Time-delay
• Dual-element
• Current limiting
• Rejection style

Product Highlights

The BUSSMANN FNQ-R-1-3/10 fuse offers superior performance and exceptional protection in a compact size.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-R-1-3/10
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series FNQ-R fuse
• Catalog Number: FNQ-R-1-3/10
• UPC: 051712147040
• EAN: 5027590100007
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 1.30A
• Class: Class CC
• Interrupt rating: 200 kAIC
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 12 sec at 200%
• Material: Melamine tube
• Packaging type: Standard
• Voltage rating: 600 V
• Type: Current-limiting high inrush time-delay fuse
• Special features: Rejection style
• Application: Line protection, small control transformers, industrial control, branch circuits
• AC Voltage Rating: 600 VAC
• Interrupting Rating: 200,000 AIC @ 600 VAC
• UL Listed: Std. 248-4, Guide JDDZ, File E4273
• CSA Certified: Class CC CSA, Class 1422-01
• File: 53787?HRC-MISC
• Amps: 1.3 Amps
• Electrical fuse type: Cartridge Fuses
• Volts: 600 VAC
• Brand: Eaton Bussmann
• Has nrtl listing certification: N
• Count: 1
• Series: FNQ
• Mpn: FNQ-R-1-3-10
• Gtin: 51712147040
• Fuse Interrupt Rating: 200 kAIC
• Fuse Dimension: 1-1/2 L x 13/32 in. Dia.
• Rated Voltage: 600V
• Shape: Rectangular
• Fuse Amps: 1.30A
• Length: 0.41 in.
• Height: 1.5 in.
• Width: 0.41 in.
