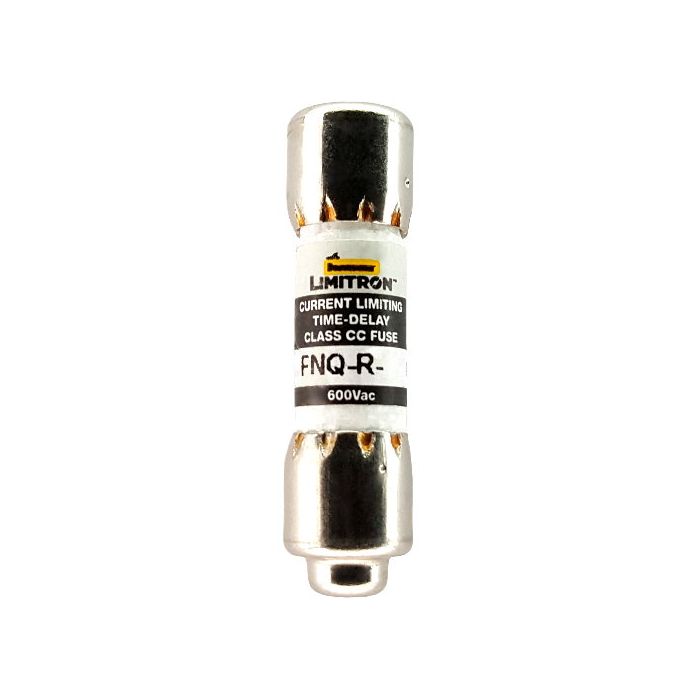

Bussmann FNQ-R-1-1/8 FNQ Time-Delay Fuse 1.125 A

Product Description

The BUSSMANN FNQ-R-1-1/8 is a Class CC, time-delay, dual-element, current limiting fuse. This rejection style fuse has an interrupting rating of 200kA at 600Vac. It is designed to meet the needs of control circuit transformer protection and provides excellent protection for all types of circuits.

• Time-delay
• Dual-element current limiting
• Rejection style

Product Highlights

The BUSSMANN FNQ-R-1-1/8 fuse offers reliable circuit protection with its time-delay, dual-element design and high interrupting rating.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-R-1-1/8
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series FNQ-R fuse
• Catalog Number: FNQ-R-1-1/8
• UPC: 051712497053
• EAN: 5027590449632
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 1.125A
• Class: Class CC
• Interrupt rating: 200 kAIC
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 12 sec at 200%
• Material: Melamine tube
• Packaging type: Standard
• Voltage rating: 600 V
• Type: Current-limiting high inrush time-delay fuse
• Special features: Rejection style
• Application: Line protection, small control transformers, industrial control, branch circuits
• Amps: 1 1/8
• Voltage: 600
• Speed: Time Delay
• Size: 13/32" x 1 1/2"
• Interrupting Rating: 200,000 AIC @ 600 VAC
• AC Voltage Rating: 600
• UL Listed: Std. 248-4, Guide JDDZ, File E4273
• CSA Certified: Class CC CSA, Class 1422-01 File 53787?HRC-MISC
• Brand: Eaton Bussmann
• Series: FNQ
• Mpn: FNQ-R-1-1-8
• Upc: 051712497053
• Gtin: 51712497053
