Bussmann FNQ-R-1-1/2 600V MDGT TD FS

Product Description

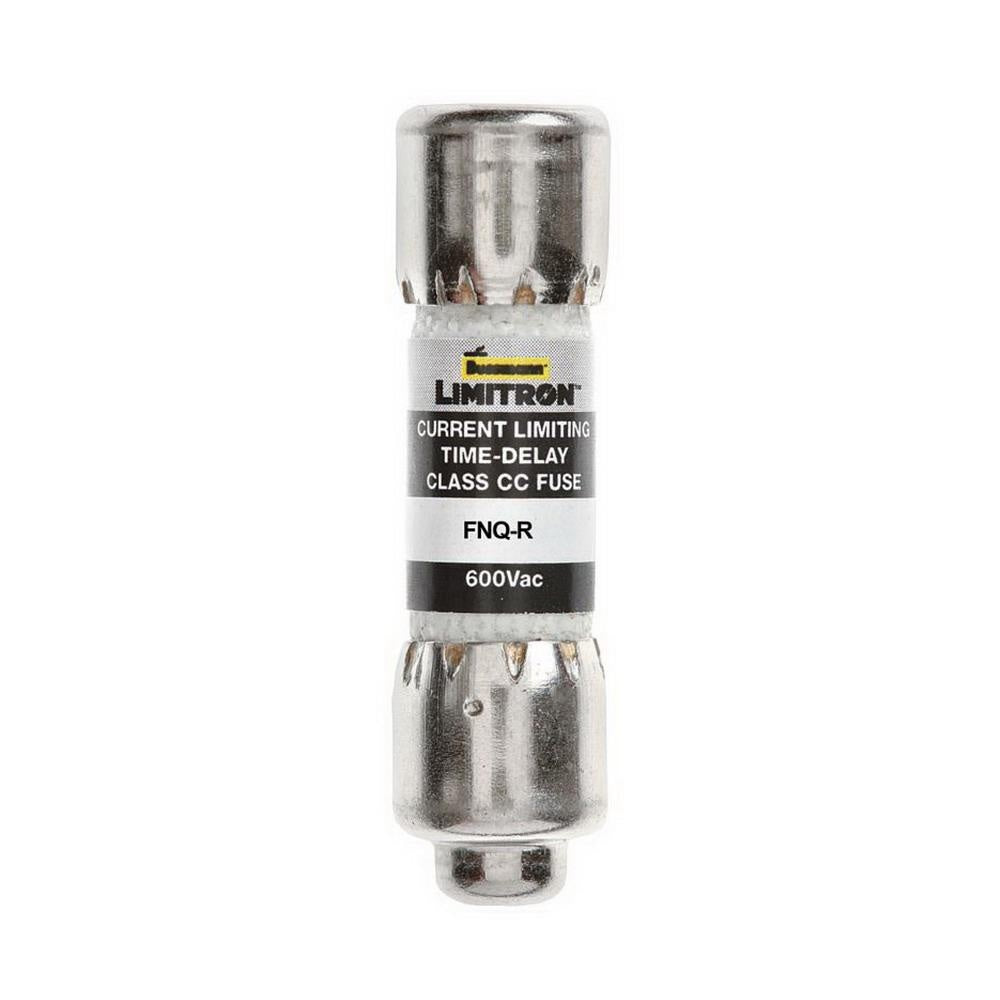

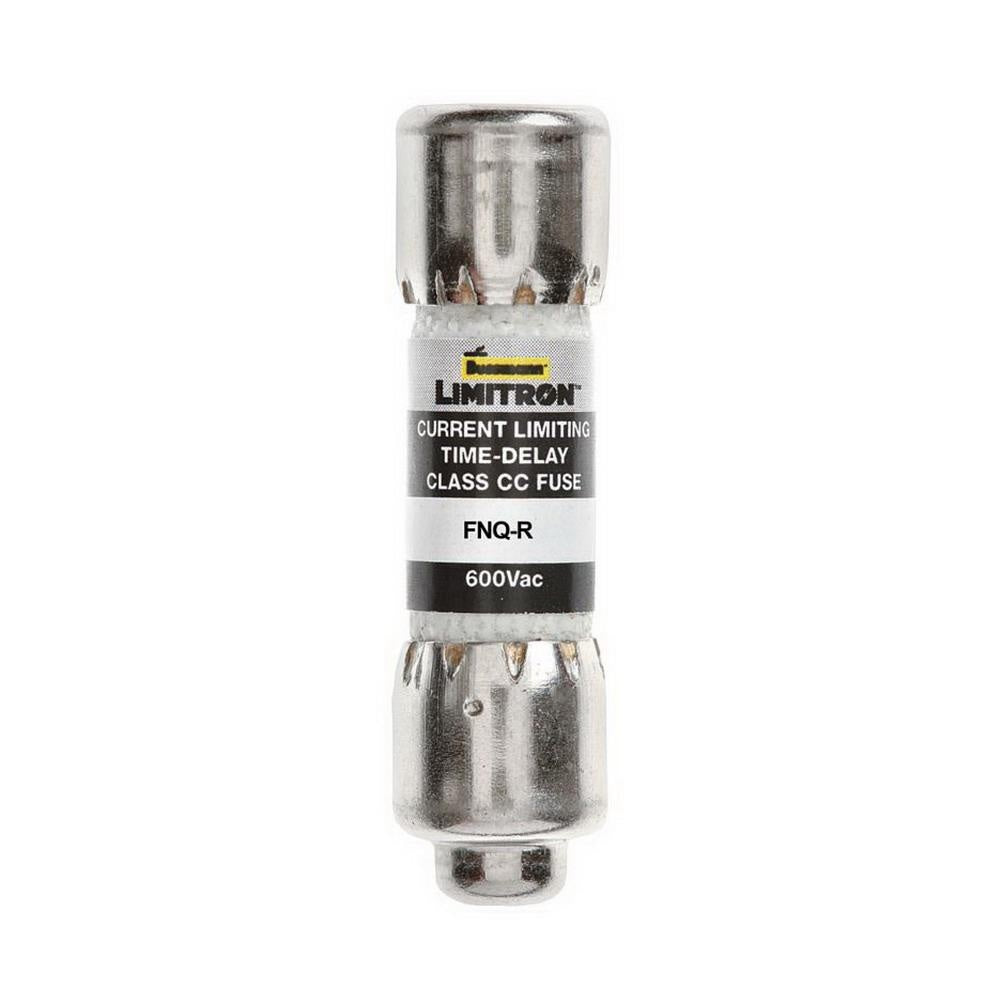

The Bussmann FNQ-R-1-1/2 is a Class CC time-delay fuse rated for one and one-half amps at six hundred volts AC. This dual-element fuse features a cylindrical melamine tube construction, making it suitable for various industrial applications. It acts as a current limiting device, offering an interrupting rating of up to two hundred kilo-Amps. The rejection style design enhances safety by preventing the use of lower-rated supplementary fuses.

• Rated for 1.5 Amps and 600 Volts AC.
• Interrupting rating of 200kA at 600Vac.
• Ideal for branch circuits and industrial control applications.

Product Highlights

This fuse is UL listed and RoHS compliant, ensuring that it meets safety and quality standards.

Product Information

Standard Information

• Manufacturer: Bussmann
• Part Number: FNQ-R-1-1/2

Technical Specifications

• Type: Fuse
• Class: Class CC
• Length: 1.5 inches
• Diameter: 0.41 inches
• Material: Melamine tube
• Voltage Rating: 600 V
• Amperage Rating: 1.5 A
• Interrupt Rating: 200 kAIC
