Product Description

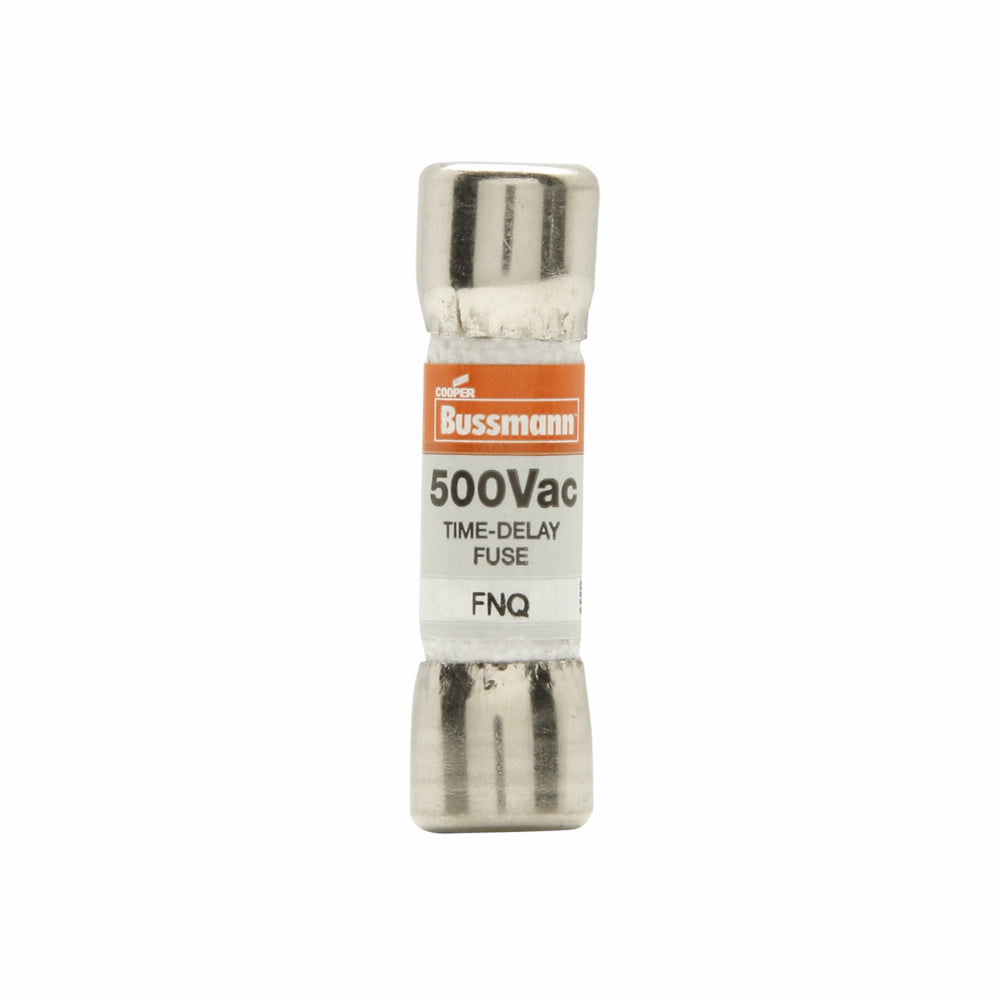

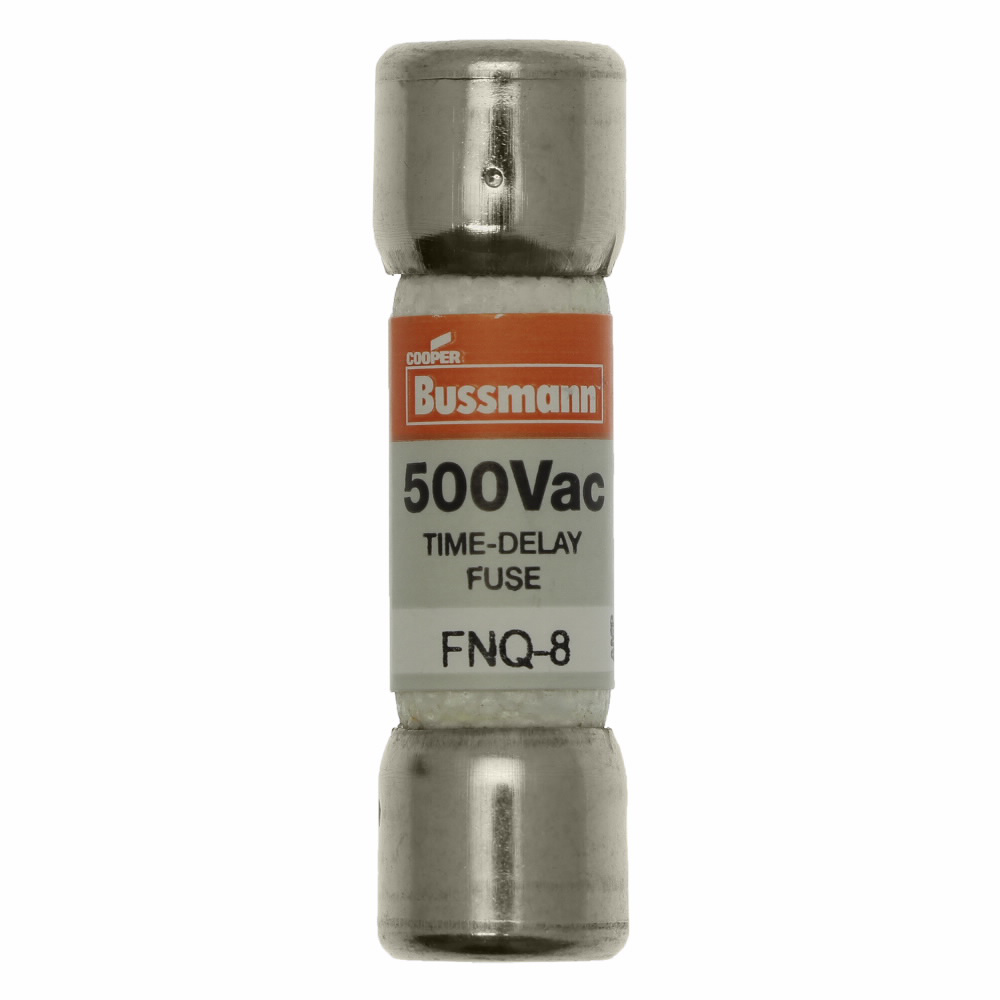

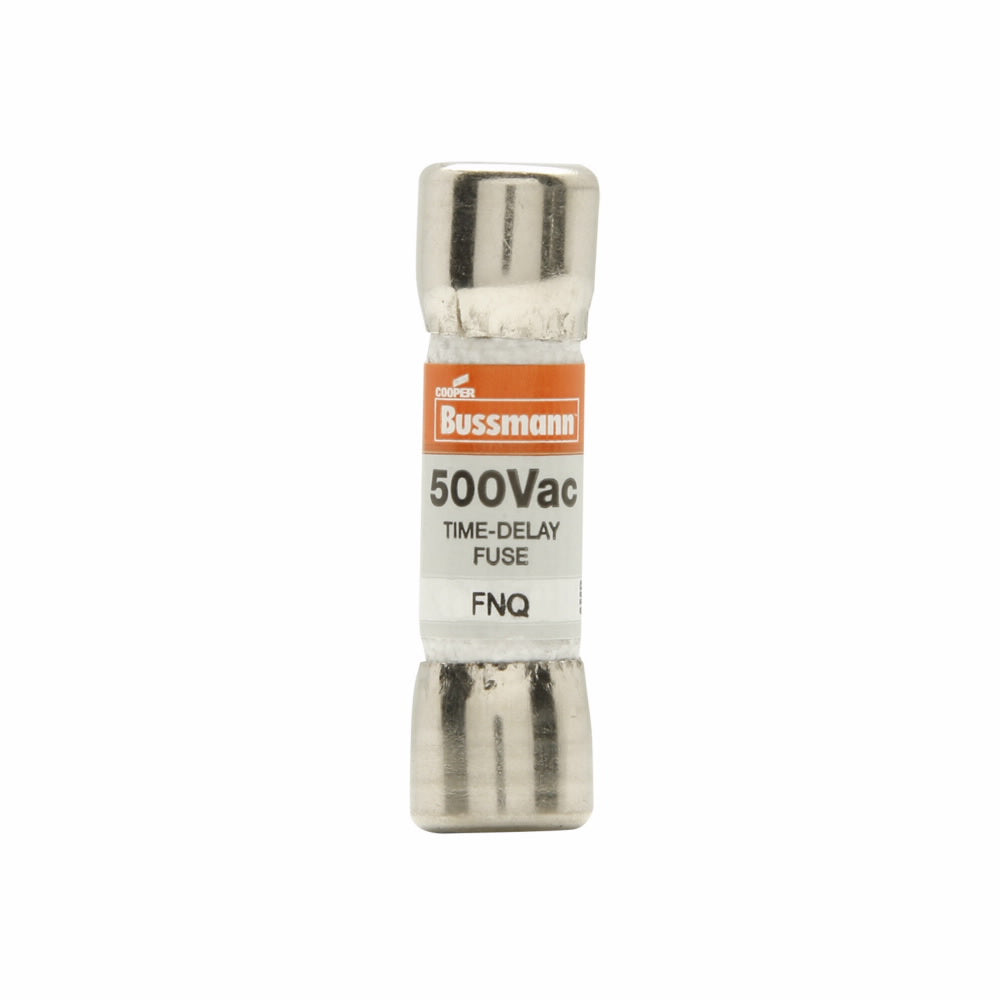

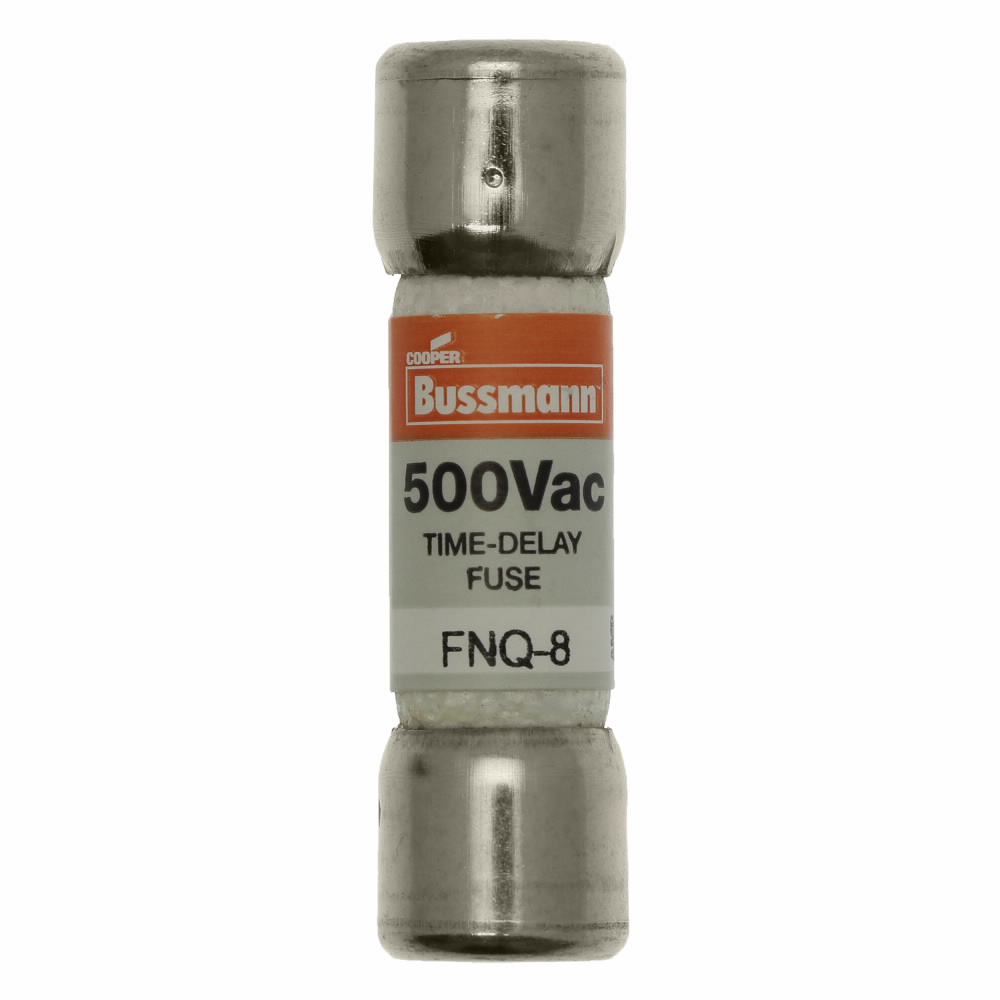

The Bussmann FNQ-8 is a time-delay midget fuse with a voltage rating of five hundred volts and an amperage of eight amps. This fuse is designed for various applications including control transformer protection, lighting circuits, and meter circuits. It features a ferrule end connection type with a diameter of thirteen thirty-seconds of an inch and a length of one and a half inches.
- Time-delay function for managing inrush currents
- Suitable for use in control transformers and lighting circuits
- Ferrule end connections for easier installation
Product Highlights
The Bussmann FNQ-8 provides reliable circuit protection in various applications. Its time-delay feature reduces nuisance tripping while protecting sensitive electronic equipment.
Product Information
Standard Information
-
Brand: Bussmann
-
Manufacturer: Bussmann Mfg.
Technical Specifications
-
Catalog Number: FNQ-8
-
Voltage: 500 Volt
-
Amperage: 8 Amp
-
Diameter: 0.46 Inch
-
Length: 1.5 Inch
-
Material: Bronze
-
Connection Type: Ferrule
-
Interrupt Rating: 10 kAIC
