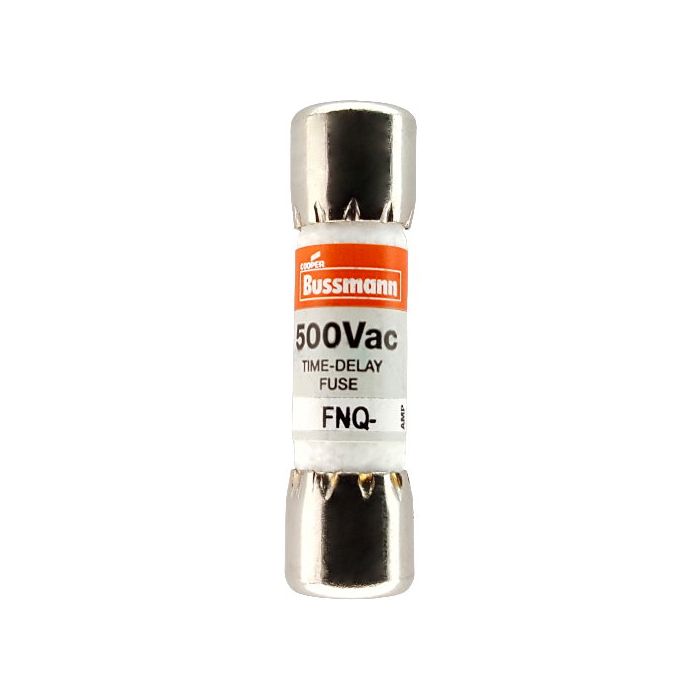

Bussmann FNQ-6-1/4 fuse 6.25A

Product Description

The Eaton Bussmann series FNQ-6-1/4 is a time-delay fuse designed for motor control transformers and circuits with in-rush currents. This 6.25A, 500V fuse features non-indicating, ferrule end x ferrule end connections and has an interrupt rating of 10 kAIC at 500 Vac.

• Time-delay
• Motor control transformers
• Circuits with in-rush currents

Product Highlights

The Bussmann FNQ-6-1/4 fuse is ideal for motor control and circuits with high in-rush currents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-6-1/4
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-6-1/4
• UPC: 051712786317
• EAN: 5027590450041
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 6.25A
• Interrupt rating: 200 kA
• Voltage rating: 600 VAC
• Material: Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Amperage: 6 1/4
• Fuse Type: Midget
• Application: For Motor Control Transformers
• Speed/Characteristic: Time Delay
• Size: 13/32" x 1 1/2"
• UL Listing: STD 248-14, Guide JDYX, File E19180
• CSA Certification: Class 1422-01; File 53787
• Brand: Bussmann
• Voltage: 500 Volts
• Number of Items: 1
• Ampere: 6.25 A
• Speed: Time Delay / Slow Blow
• Class: Class CC Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse KLDR , Mersen ATQR
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
