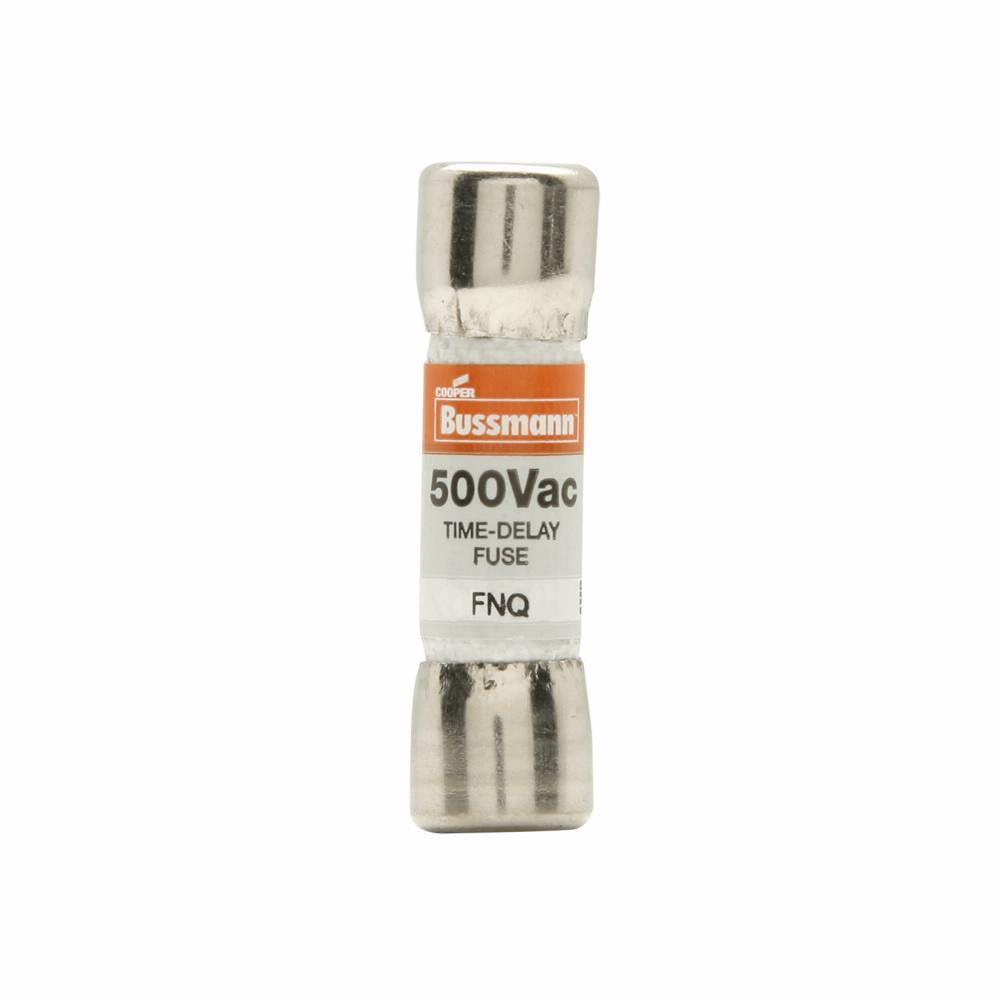

Bussmann FNQ-4/10 Midget Fuse 4/10 A

Product Description

The Bussmann FNQ-4/10 is a Tron® midget fuse with time delay functionality. This non-indicating, non-rejection fuse has a 4/10 A amperage rating and a 500 VAC voltage rating. It features a ferrule terminal and a cartridge body type, and is designed for holder mounting. The fuse is dual element and constructed from bronze/fiberglass.

• Nickel plated brass end caps
• Time Delay
• Dual Element

Product Highlights

Midget fuse with time delay, 4/10 A, 500 VAC, ferrule terminal, and bronze/fiberglass construction.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-4/10

Technical Specifications

• Series: FNQ
• Type: Time Delay
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Amperage Rating: 4/10 A
• Voltage Rating: 500 VAC
• Interrupt Rating: 10000 A
• Class: Supplemental
• Terminal Type: Ferrule
• Body Type: Cartridge
• Body Size: 13/32 in Dia x 1-1/2 in L
• Element: Dual
• Material: Bronze/Fiberglass
• Mounting Type: Holder
