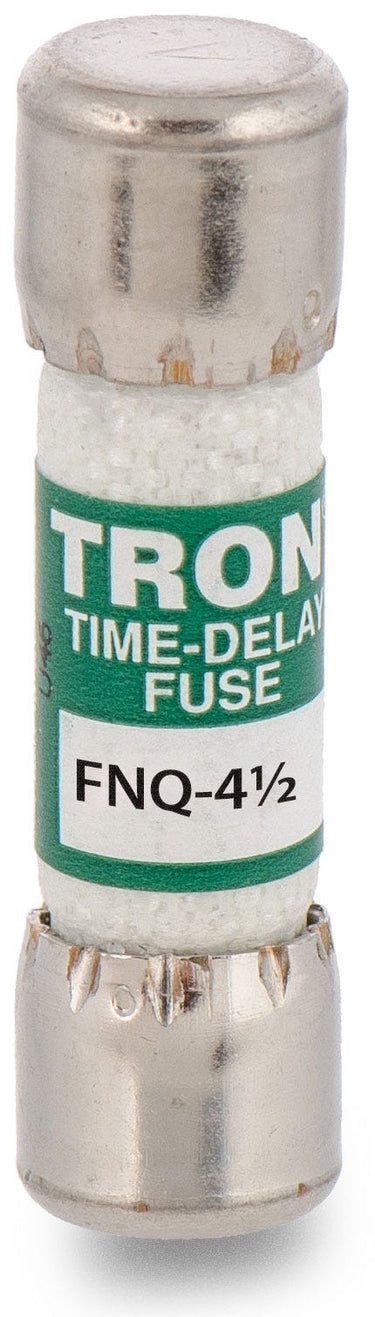

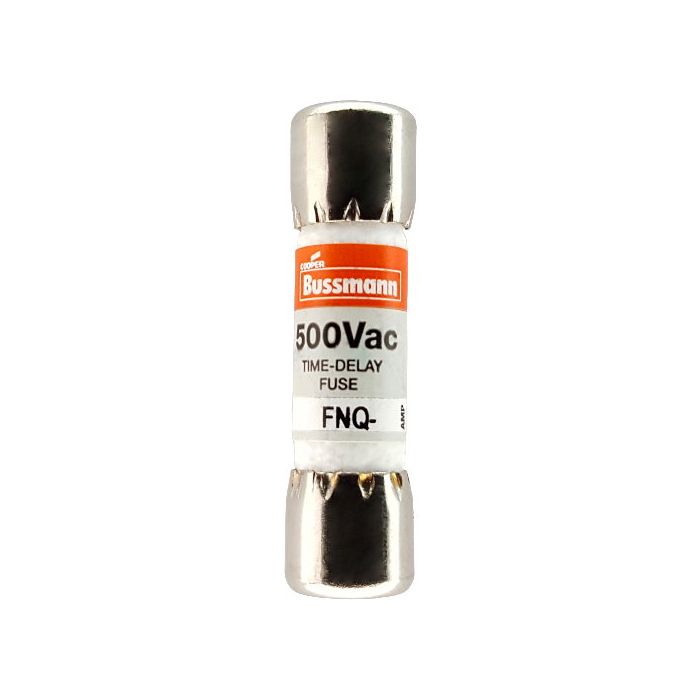

Bussmann FNQ-4-1/2 FNQ Series 4.5 Amp Time-Delay Class CC Fuse (500V)

Product Description

The Bussmann FNQ-4-1/2 is a time-delay Class CC fuse from the FNQ series. Designed for motor control transformers and circuits with in-rush currents, this 4.5A fuse offers reliable protection. It features a non-indicating design with ferrule end connections and a 10 kAIC interrupting rating at 500 Vac.

• 4.5 Amps
• 500v
• Time-delay

Product Highlights

The Bussmann FNQ-4-1/2 fuse is ideal for motor control transformers and circuits with in-rush currents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-4-1/2
• Country of Origin: Mexico

Technical Specifications

• Amperage: 4.5
• Product Type: Fuse
• Voltage: 500V
• Fuse Type: Midget
• Application: For Motor Control Transformers
• Time Delay: Time Delay
• Physical Size: 13/32" x 1 1/2"
• Use: For Circuits with Inrush Currents
• AC Voltage Rating: 500 V
• Interrupting Rating: 10,000 AIC @ 500VAC
• UL Listed: STD 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01; File 53787
• Ampere: 4.5 A
• Voltage rating: 500 Vac
• Interrupt rating: 10kA
• Speed: Time Delay/Slow Blow
• Class: Midget Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse FLQ, Mersen ATQ
• Series: FNQ
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 4.5 A
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-4-1/2
• UPC: 051712786287
• EAN: 5027590407663
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Compliances: CE Marked
• RoHS Compliant: RoHS Compliant
• Amperage Rating: 4.5A
• Material: Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Mpn: FNQ-4-1-2
• Gtin: 51712786287
