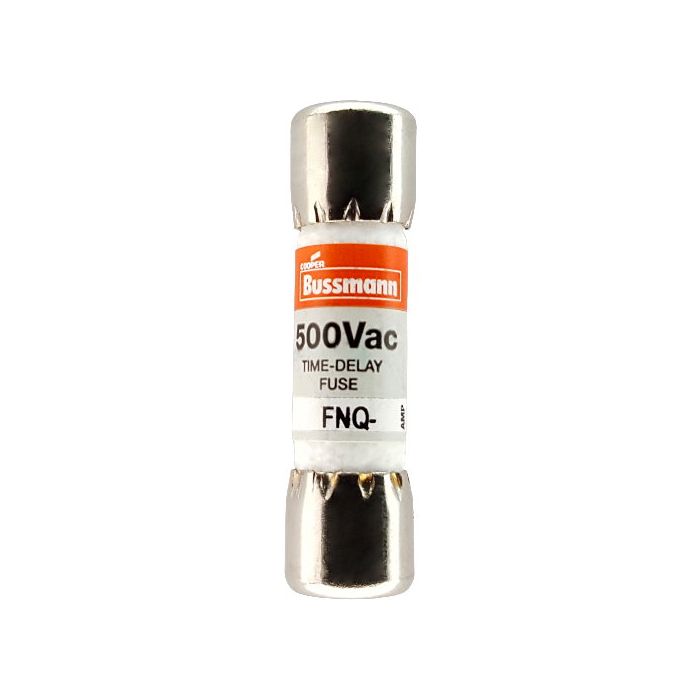

Bussmann FNQ-3-2/10 Eaton Bussmann series FNQ fuse 3.2 A

Product Description

The Bussmann FNQ-3-2/10 is an Eaton Bussmann series FNQ fuse. This time-delay fuse is designed for motor control transformers and circuits with in-rush currents. It has a 3.2 A amperage rating and a 500 V voltage rating. The fuse features non-indicating, ferrule end x ferrule end connections and a standard packaging type.

• Time-delay
• Motor control transformers
• Circuits with in-rush currents

Product Highlights

The Bussmann FNQ fuse is ideal for motor control transformers and circuits with in-rush currents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-3-2/10
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-3-2/10
• UPC: 051712786058
• EAN: 5027590407632
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 3.2 A
• Interrupt rating: 10 kAIC at 500 Vac
• Voltage rating: 500 V
• Material: Ceramic
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating
• Application: Industrial
• Speed: Time Delay
• AC Voltage Rating: 500 V
• UL Listed: STD 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01; File 53787
• Ampere: 3.2 A
• Interrupt Rating - AC: 10 kA
• Class: Midget Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse FLQ, Mersen ATQ
• Series: FNQ
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 3.2 A
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Model: FNQ 3 2/10
• Type: Fuse
• Maximum Amperage: 3.2 A
• Number of Poles: 1
• Current Type: AC
• Number in Pack: 1
• Time Delay: Yes
