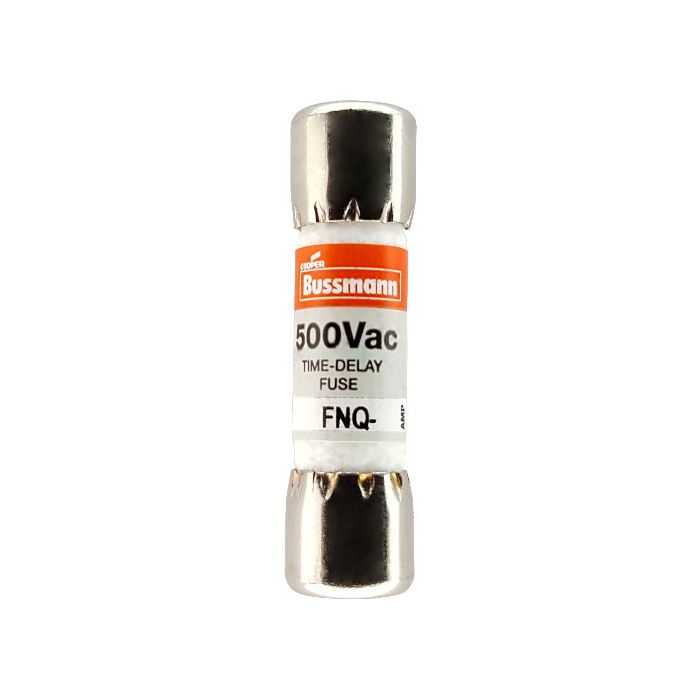

Bussmann FNQ-2/10 fnq 2/10 Amp, 500V, Midget Fuse

Product Description

The BUSSMANN FNQ-2/10 is a midget fuse designed for motor control transformers and circuits with inrush currents. This time-delay fuse has an amperage of 2/10 Amps and a voltage rating of 500V AC. It is UL Listed and CSA Certified, ensuring compliance with safety standards.

• 2/10 Amps
• 500 Volts AC
• Time Delay

Product Highlights

The Bussmann FNQ series supplemental fuses feature fiber tube construction with nickel-plated brass endcaps.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-2/10
• Country of Origin: Mexico

Technical Specifications

• Amperage: 2/10 Amps
• Voltage: 500 Volts AC
• Fuse Type: Midget Fuse
• Application: For Motor Control Transformers
• Speed: Time Delay
• Physical Size: 13/32" x 1 1/2"
• Use: For Circuits with Inrush Currents
• AC Voltage Rating: 500 V
• Interrupting Rating: 10,000 AIC @ 500VAC
• UL Listed: STD 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01; File 53787
• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-2/10
• UPC: 051712786218
• EAN: 5027590449984
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 0.2 A
• Interrupt rating: 10 kAIC at 500 Vac
• Voltage rating: 500V
• Material: Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating
• Ampere: 0.2 A
• Class: Midget Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse FLQ, Mersen ATQ
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• Item weight: 0.29 oz
• Series: FNQ
• AC: AC
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 200 mA
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Product Range: FNQ Series
• Fuse Current: 200mA
• Voltage Rating VAC: 500V
• Voltage Rating VDC: None
• Fuse Size Metric: 10.3mm x 38.1mm
• Fuse Size Imperial: 13/32" x 1-1/2"
• Blow Characteristic: Time Delay
• SVHC: No SVHC (10-Jun-2022)
• Applications: Industrial
• Country of Origin: China
