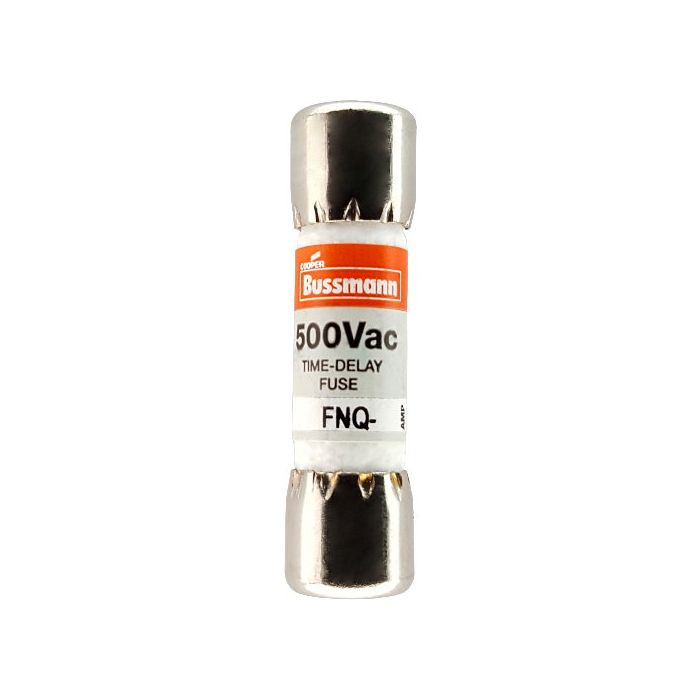

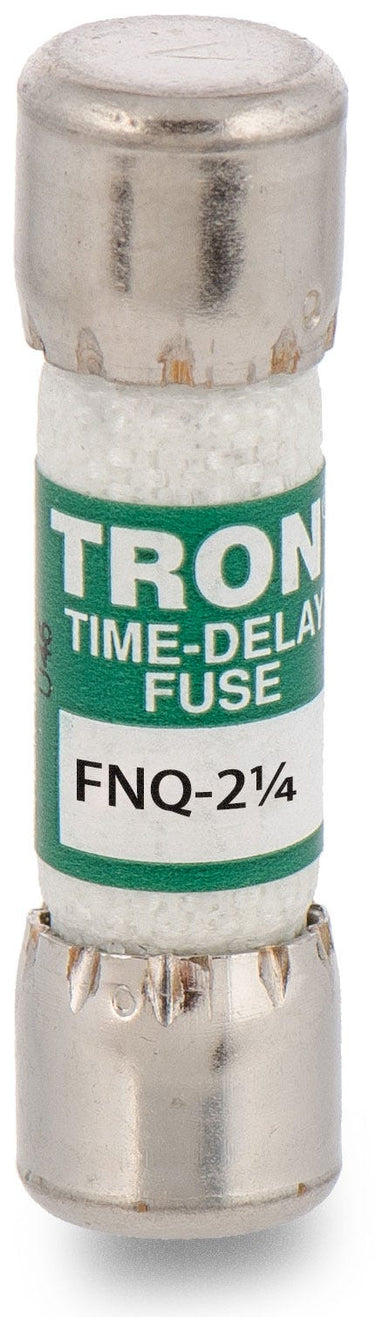

Bussmann FNQ-2-1/4 Fuse 2.25 A replacement FNQ-R-2-1/4

Product Description

The BUSSMANN FNQ-2-1/4 is a time-delay fuse designed for motor control transformers and circuits with in-rush currents. This 2.25 A, 500 V fuse features non-indicating functionality and ferrule end connections. It is suitable for standard applications requiring reliable circuit protection.

• Time-delay
• Motor control transformers
• Circuits with in-rush currents

Product Highlights

The BUSSMANN FNQ-2-1/4 fuse provides reliable time-delay protection for motor control transformers and circuits with in-rush currents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-2-1/4
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-2-1/4
• UPC: 051712786256
• EAN: 5027590407601
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Weight: 0.175 lb
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 2.25 A
• Interrupt rating: 200 kA
• Voltage rating: 600 VAC
• Material: Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating
• Amps: 2 1/4
• Fuse Size: Midget
• Application: Branch Circuit, Line Protection, Small Control Transformers and Industrial Control, Isolated, In-Line Fuse Holders, Safety and Security Systems
• Speed/Characteristic: Time Delay
• Physical Size: 13/32" x 1 1/2"
• Use: For Circuits with Inrush Currents
• AC Voltage Rating: 500 V
• Interrupting Rating: 10,000 AIC @ 500VAC
• UL Listed: STD 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01; File 53787
• Brand: Eaton Bussmann
• Series: FNQ
• Manufacturer Part Number: FNQ-2-1/4
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 2.25 A
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Time-Delay
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Ampere: 2.25 A
• Class: Class CC Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse KLDR , Mersen ATQR
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• Mounting Type: Holder
• Response Time: 12 s at 200%
• Terminal Type: Ferrule
• Voltage Rating: 600
• Type: Advanced Protection Current Limiting High Inrush Low Voltage
• Mpn: FNQ-2-1-4
• Gtin: 51712786256
• Manufacturer: BUSSMANN
• Category: Industrial Automation & Motion Controls
• Condition: New
