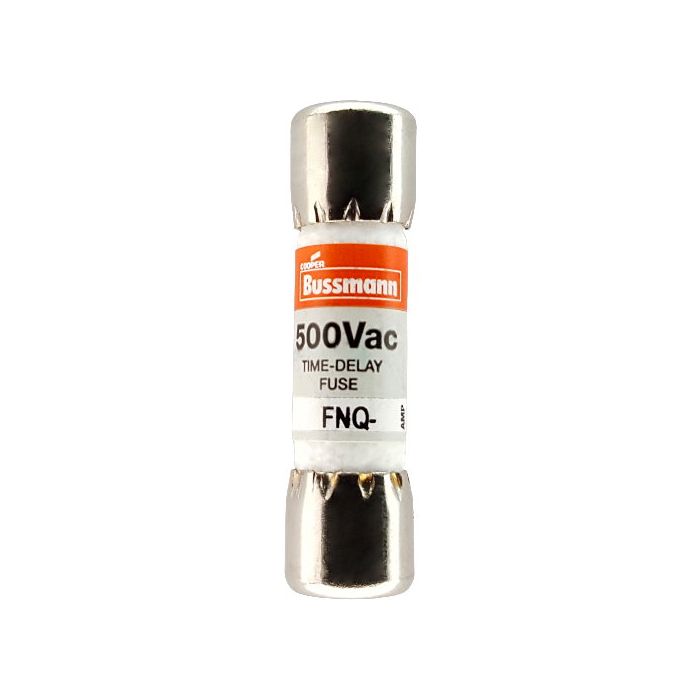

Bussmann FNQ-2-1/2 FNQ Series Fuse 2.5 A

Product Description

The BUSSMANN FNQ-2-1/2 is a time-delay FNQ series fuse designed for motor control transformers and circuits with in-rush currents. This 2.5 A, 500 V fuse features non-indicating functionality and ferrule end connections. It provides reliable protection with a 10 kAIC interrupting rating at 500 Vac.

• Time-delay
• Motor control transformers
• Circuits with in-rush currents

Product Highlights

The BUSSMANN FNQ-2-1/2 fuse is ideal for industrial or commercial applications requiring specific current limitation.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-2-1/2
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-2-1/2
• UPC: 051712786263
• EAN: 5027590449977
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 2.5 A
• Interrupt rating: 10 kAIC at 500 Vac
• Voltage rating: 500 V
• Material: Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating
• Application: For Motor Control Transformers
• Speed: Time Delay
• Physical Size: 13/32" x 1 1/2"
• Use: For Circuits with Inrush Currents
• AC Voltage Rating: 500 V
• UL Listed: STD 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01; File 53787
• Ampere: 2.5 A
• Voltage: 500V
• Fuse Size: Midget
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• Series: FNQ
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 2.5 A
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
