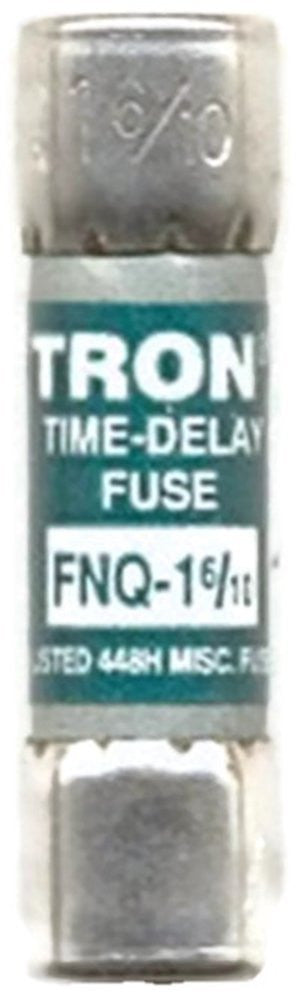

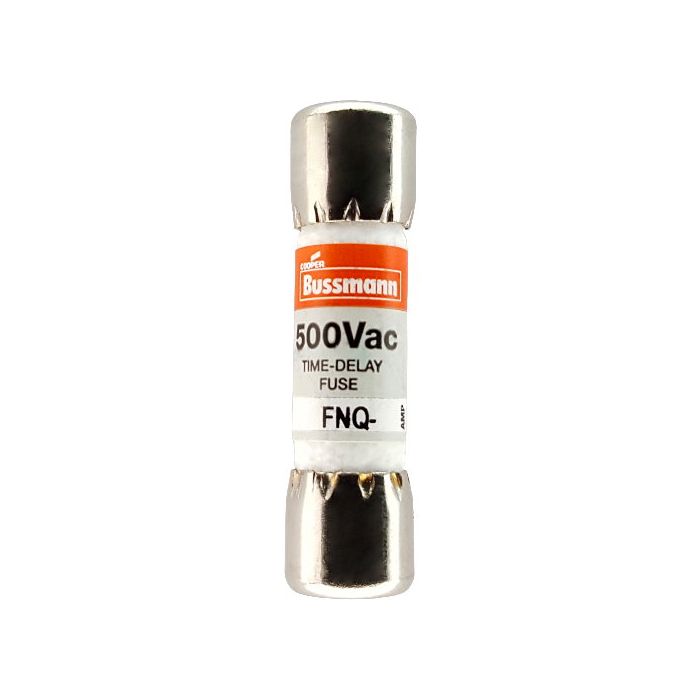

Bussmann FNQ-1-6/10 Fuse 1 6/10 Amp 500V Midget

Product Description

The BUSSMANN FNQ-1-6/10 is a midget fuse designed for motor control transformers and circuits with inrush currents. It has a time-delay feature and operates at 500V AC. This fuse provides reliable protection with an interrupting rating of 10,000 AIC at 500VAC. It is suitable for circuits requiring time-delay functionality.

• 1 6/10 Amps
• 500 Volts AC
• Time Delay

Product Highlights

Midget fuse for motor control transformers and circuits with inrush currents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-1-6/10
• Country of Origin: Mexico

Technical Specifications

• Amps: 1 6/10
• Volts AC: 500
• Fuse Size: Midget
• Application: For Motor Control Transformers
• Speed: Time Delay
• Physical Size: 13/32" x 1 1/2"
• Use: For Circuits with Inrush Currents
• AC Voltage Rating: 500 V
• Interrupting Rating: 10 kAIC
• UL Listed: STD 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01; File 53787
• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-1-6/10
• UPC: 051712786119
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Compliances: CE Marked
• RoHS Compliant: RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 1.6 A
• Voltage Rating: 500 V
• Material: Nickel-plated bronze endcap
• Packaging Type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating
• Brand: Eaton Bussmann
• Series: FNQ
• Mpn: FNQ-R-1-6-10
• Upc: 051712496964
• Gtin: 51712496964
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 1.6 A
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Part #: 31A32092
• Package Quantity: 1
• Amperage: 1-6/10 Amp
• Applications: Control Transformer 480 V Primary Protection, Lighting Circuit Protection, Meter Circuits
• ConnectionType: Ferrule End X Ferrule End
• Size: 13/32 In Diameter X 1-1/2 In Length
• Standard: CSA,E2186,UL
• TC Connection: Ferrule End X Ferrule End
• Type: Time-Delay
• Voltage: 500 Volt
• Sub Brand: Tron
• 12-Digit UPC: 051712786119
• Class: Supplemental
• GTiN: 00051712786119
• Product UPC: 05171278611
