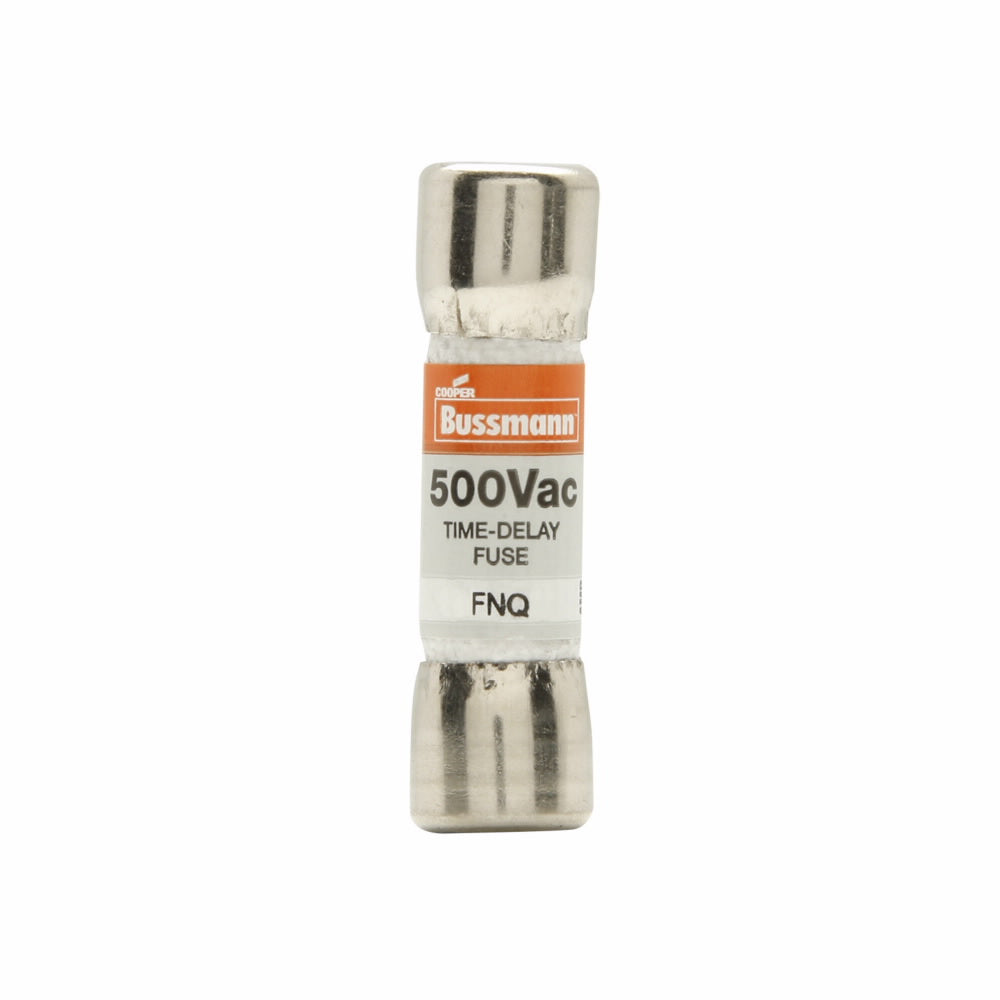

Bussmann FNQ-1/4 Fuse 14 Amp 500 VAC Class CC Midget Time Delay Fuse

Product Description

The Bussmann FNQ-1/4 fuse is designed for use in various electrical applications. This time delay fuse allows for in-rush current management, making it suitable for motor control transformers and lighting circuits. The fuse is rated for 14 Amps and operates up to a voltage of 500 VAC. It features a ferrule end connection and has a nickel-plated bronze endcap for durability.

• Rated for 14 Amps at 500 VAC
• 10 kAIC interrupt rating
• Ferrule end connection for easy installation

Product Highlights

This Bussmann fuse is a reliable choice for electrical protection in various applications and offers safety in demanding conditions.

Product Information

Standard Information

• Brand: Bussmann
• Type: Time Delay
• Material: Fiber

Technical Specifications

• Amperage: 14 Amp
• Voltage: 500 VAC
• Dimensions: 13/32 In Diameter X 1-1/2 In Length
• Connection: Ferrule End X Ferrule End
• Interrupt Rating: 10 kAIC
• Applications: Control Transformer 480 V Primary Protection, Lighting Circuit Protection, Meter Circuits
• Sub Brand: Bussmann Series
