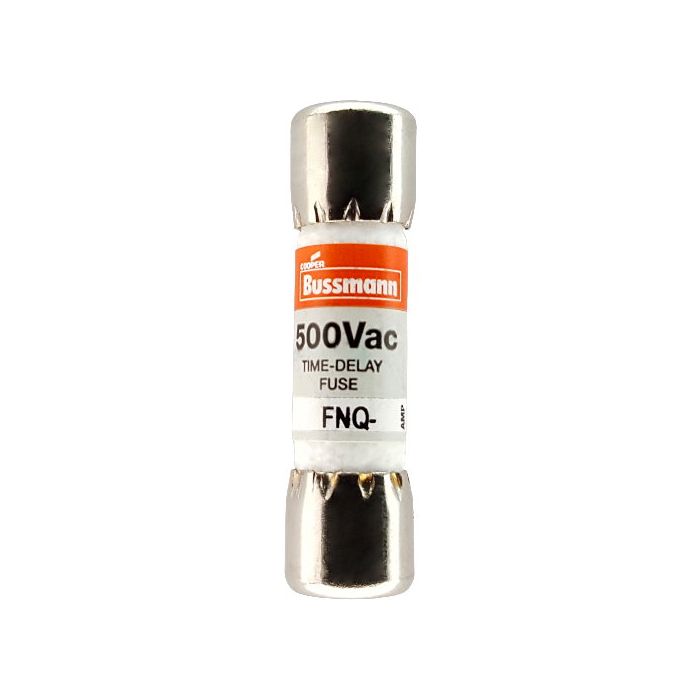

Bussmann FNQ-1-1/8 Fnq 1 1/8 Amp, 500V, Midget Fuse

Product Description

The BUSSMANN FNQ-1-1/8 is a 1 1/8 amp, 500V midget fuse designed for motor control transformers and circuits with inrush currents. It is a time delay fuse with an interrupting rating of 10,000 AIC at 500VAC. The fuse has a physical size of 13/32" x 1 1/2".

• 1 1/8 Amps
• 500 Volts AC
• Midget Fuse

Product Highlights

This time-delay fuse is UL Listed and CSA Certified, suitable for circuits with inrush currents and motor control transformers.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNQ-1-1/8
• Country of Origin: Mexico

Technical Specifications

• Amperage: 1 1/8
• Voltage: 500V
• Fuse Size: Midget
• Application: For Motor Control Transformers
• Speed: Time Delay
• Physical Size: 13/32" x 1 1/2"
• Interrupting Rating: 10,000 AIC @ 500VAC
• UL Listed: STD 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01; File 53787
• Product Name: Eaton Bussmann series FNQ-R fuse
• Catalog Number: FNQ-R-1-1/8
• UPC: 051712497053
• EAN: 5027590449632
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 1.125A
• Class: Class CC
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 12 sec at 200%
• Material: Melamine tube
• Packaging type: Standard
• Voltage rating: 600 V
• Type: Current-limiting high inrush time-delay fuse
• Special features: Rejection style
• Ampere: 1.125 A
• Interrupt rating: 10 kA
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Mersen ATQ
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• Item weight: 0.29 oz
• AC Voltage Rating: 500 V
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 1.125 A
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• ECCN: EAR99
• Fuse Interrupt Rating: 10 kAIC at 500V ac
• Fuse Dimension: 1-1/2 L x 13/32 in. Dia.
• Rated Voltage: 500V
• Rectangular Shape: Rectangular
• Fuse Amps: 1.125A
• Length: 1.5 in.
• Height: 0.41 in.
• Width: 0.41 in.
