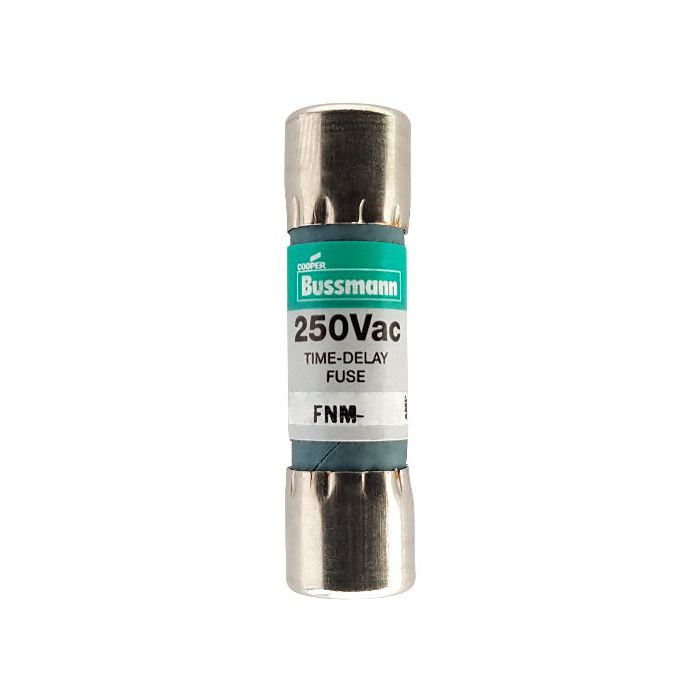

Bussmann FNM-2-8/10 FNM Fuse 2.8A

Product Description

The Eaton Bussmann series FNM-2-8/10 fuse is a time-delay fuse with a 2.8A amperage rating. This dual-element, non-indicating fuse features ferrule end connections and a nickel-plated bronze endcap. It provides reliable circuit protection with a 100 AIC at 250 Vac and 10 kAIC at 125 Vac interrupt rating. It is suitable for circuits with high inrush currents and supplemental protection for inductive circuits up to 250Vac.

• Time-delay
• Dual element
• Non-indicating

Product Highlights

The Bussmann FNM-2-8/10 fuse offers superior overload and cycling capabilities for reliable circuit protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNM-2-8/10
• Country of Origin: MX - Mexico

Technical Specifications

• Product Name: Eaton Bussmann series FNM fuse
• Catalog Number: FNM-2-8/10
• UPC: 051712520232
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 2.8A
• Interrupt rating: 10 kAIC at 125 Vac 100 AIC at 250 Vac
• Voltage rating: 250 V
• Material: Nickel-plated bronze endcap
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Superior overload and cycling capabilities
• Amps: 2 8/10
• Voltage: 250 Volts AC
• Fuse Type: Midget Fuse
• Element: Dual Element
• Time Delay: Time Delay
• Physical Size: 13/32" x 1 1/2"
• AC Voltage Rating: 250 V
• UL Listed Std.: 248-14, File E19180, Guide JDYX
• CSA Certified: Class 1422-01, File 53787
• Brand: BUSSMANN
• Speed: Time Delay / Slow Blow
• Class: Midget Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse FLM, Mersen TRM
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• Series: FNM
• Part Number #: FNM-2-8/10
• Interrupt Rating: 100/10000 A
• UNSPSC: 39121609
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 2.8 A
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 A; 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-14 Guide JDYX
• Visual Indication: Non-Indicating
• ECCN: EAR99
• Fuse Interrupt Rating: 10 kAIC at 125V ac
• Fuse Dimension: 1-1/2 L x 13/32 in. Dia.
• Rated Voltage: 250V
• Length: 1.5 in.
• Height: 0.41 in.
• Width: 0.41 in.
