Bussmann FNM-1/10 FNM Series Midget Fuse 0.1 Amp Replacement FNM-1/10

Product Description

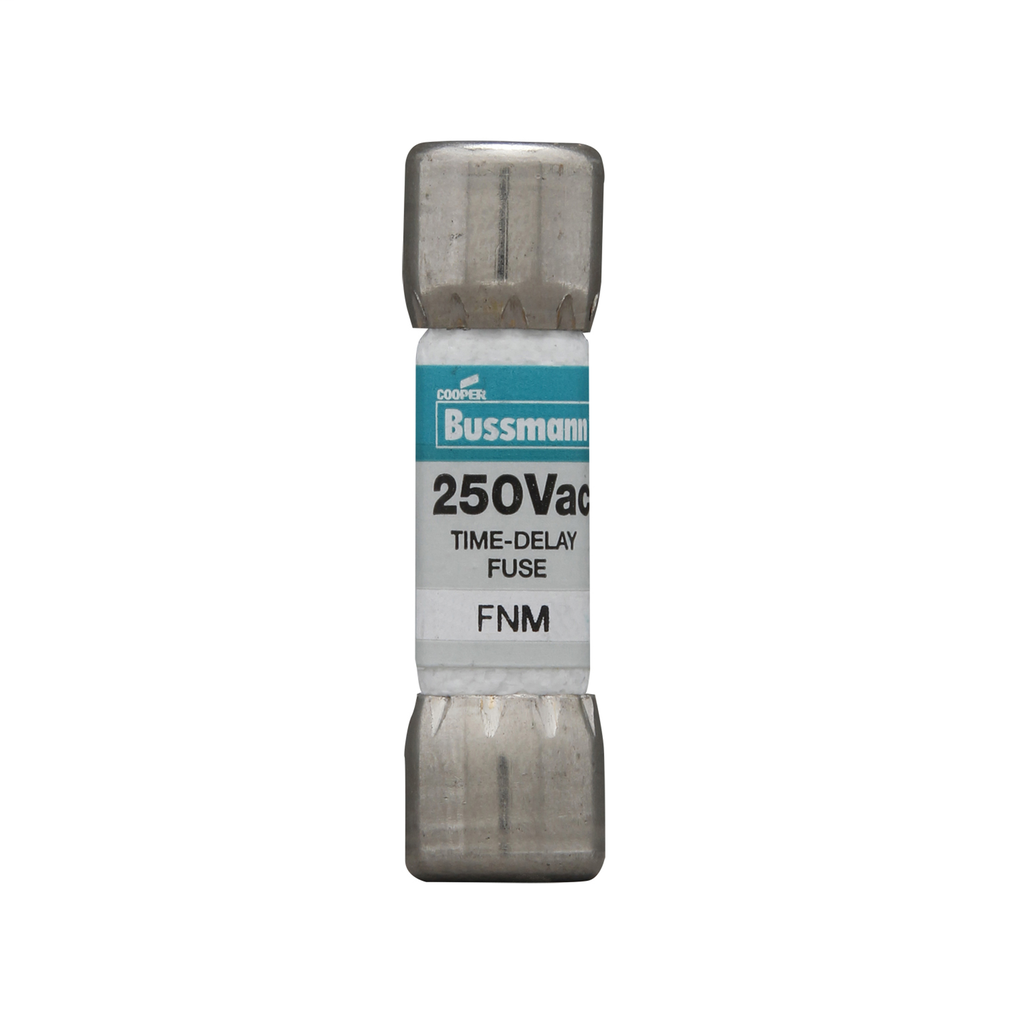

The Bussmann FNM-1/10 is a time-delay midget fuse with a 0.1 Amp rating. This dual-element fuse is designed with ferrule end connections and has an interrupt rating of 10 kAIC at 125 Vac and 35 AIC at 250 Vac. It is suitable for general purpose circuits, lighting circuit protection and meter circuits.

• Time-delay fuse with 0.1 Amp amperage
• Dual-element construction for overload and cycling capabilities
• Ferrule end connections for easy installation

Product Highlights

The Bussmann FNM-1/10 fuse provides reliable circuit protection with its time-delay functionality and robust construction.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNM-1/10
• Country of Origin: China

Technical Specifications

• Brand: Bussmann
• Type: Time Delay
• Amperage: 0.1 Amp
• Voltage: 250 Volt
• Interrupt Rating: 10 kAIC
• End Type: Ferrule
• Material: Fiber
• Standard: CE,CSA,UL 248-14
• Element: Dual
• Size: 13/32 In Diameter X 1-1/2 In Length
• Applications: General Purpose Circuits, Lighting Circuit Protection, Meter Circuits
• TC Connection: Ferrule End X Ferrule End
• Connection Type: Ferrule
• Class: Supplemental
• Product Name: Eaton Bussmann series FNM fuse
• Catalog Number: FNM-1/10
• UPC: 051712520003
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 0.1 A
• Voltage rating: 250 V
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special Features: Superior overload and cycling capabilities
• Physical Size: 13/32" x 1 1/2"
• AC Voltage Rating: 250
• Interrupting Rating @ 250 VAC: 35 AIC
• Interrupting Rating @ 125 VAC: 10,000 AIC
• UL Listed Std.: 248-14, File E19180, Guide JDYX
• CSA Certified: Class 1422-01, File 53787
• Amps: 0.1 Amps
• Series: FNM
• Current Rating: 0.1 A
• Dimensions: 0.41 in H X 0.41 in W X 1.50 in L
• Indicator: Non-indicating
• Manufacturer Part Number: FNM-1/10
• Shape: RECTANGULAR
• Unit of Measure: EA
• UPC Code: 051712520003
• Weight: 0.2 lbs
